| Function | |
|---|---|
| Contact Resistance | 20mΩmax. initial@ 2-4VDC 100mA for both silver & gold plated contacts |
| Insulation Resistance | 1,000 MΩ min. |
| Mechanical Operations | |
| Terminal Options | |
| Product Series |

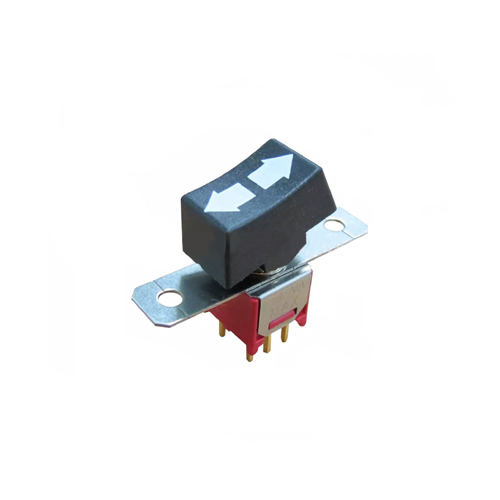

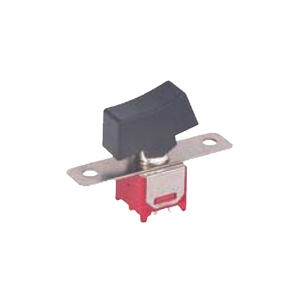

This Sub-miniature Rocker Switch features vertical mounting and a DPDT configuration. It is available with a momentary or latching function and 2 or 3 positions.
Key Features:
| Function | |
|---|---|
| Contact Resistance | 20mΩmax. initial@ 2-4VDC 100mA for both silver & gold plated contacts |
| Insulation Resistance | 1,000 MΩ min. |
| Mechanical Operations | |
| Terminal Options | |
| Product Series |
|
Contact Rating |
Dependent upon contact material |
|
Mechanical Life |
30,000 cycles |
|
Contact Resistance |
20 m Ω max. initial @ 2-4VDC 100mA |
|
Insulation Resistance |
1000 m Ω min. |
|
Dielectric Strength |
1000 vrms min. @ sea level |
|
Operating Temperature |
-30°C to 85°C |
