| Function | |
|---|---|
| IP Rating | |
| Mechanical Operations | |
| DIELECTRIC STRENGTH | 1,000 Vrms min.@sea level. |
| INSULATION RESISTANCE | 1,000 MΩ min. |
| Product Series |

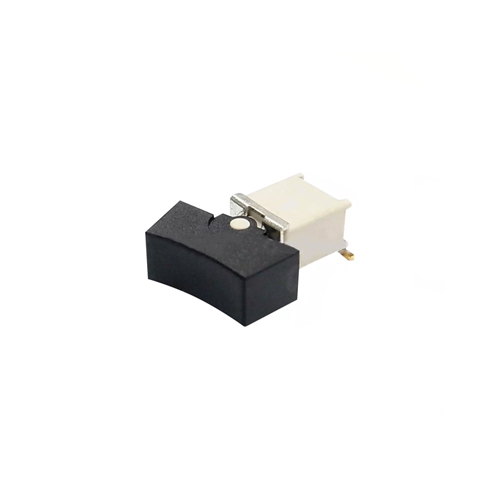

This PCB Sub-miniature Rocker Switch features a surface mounting, with an SPDT configuration and an IP67 rating. It can have a momentary or latching function, in 2 or 3 positions.
Key Features:
| Function | |
|---|---|
| IP Rating | |
| Mechanical Operations | |
| DIELECTRIC STRENGTH | 1,000 Vrms min.@sea level. |
| INSULATION RESISTANCE | 1,000 MΩ min. |
| Product Series |
|
Contact Rating |
Dependent upon contact material |
|
Mechanical Life |
50,000 cycles |
|
Contact Resistance |
20 m Ω max. initial @ 2-4VDC 100mA |
|
Insulation Resistance |
1000 m Ω min. |
|
Dielectric Strength |
1000 vrms min. @ sea level |
|
Operating Temperature |
-30°C to 85°C |
