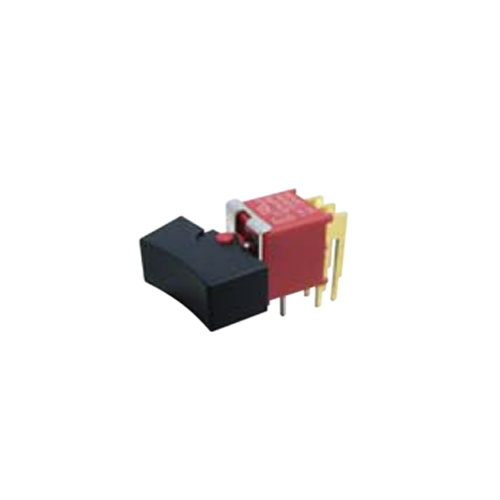

This PCB Rocker Switch features a DPDT configuration and an IP67 rating. Available with right angle mounting and a momentary or latching function in 2 or 3 positions.
Key Features:
| Function | |
|---|---|
| IP Rating | |
| Mechanical Operations | |
| Insulation Resistance | 1,000 MΩ min. |
| Dielectric Strength | 1,000 Vrms min. @sea level. |
| Product Series |
| Contact Rating | Dependent upon contact material |
| Mechanical Life | 30,000 cycles |
| Contact Resistance | 20 m Ω max. initial @ 2-4VDC 100mA |
| Insulation Resistance | 1000 m Ω min. |
| Dielectric Strength | 1000 vrms min. @ sea level |
| Operating Temperature | -30°C to 85°C |
| Degree of Protection | IP67 |
