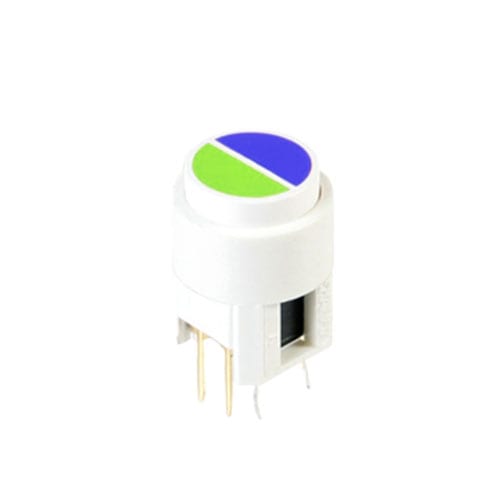

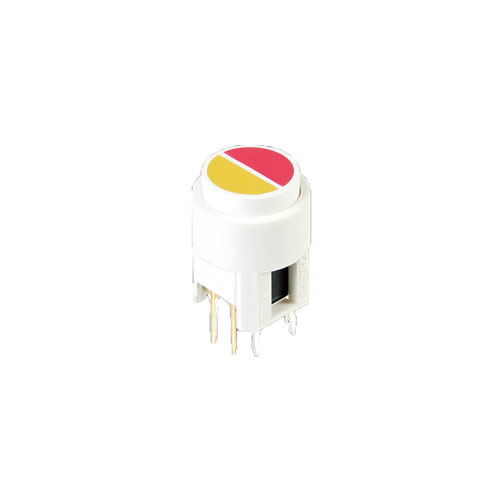

This round PCB Push Button Switch has a split face, allowing for two different colours of LED illumination. It features a tactile momentary function and single or bi-colour illumination.
Key Features:
| Product Series | |
|---|---|
| Function | |
| Orientation | |
| Illumination | |
| Switch Circuit | |
| Terminal Options | |
| Switch Travel |
|

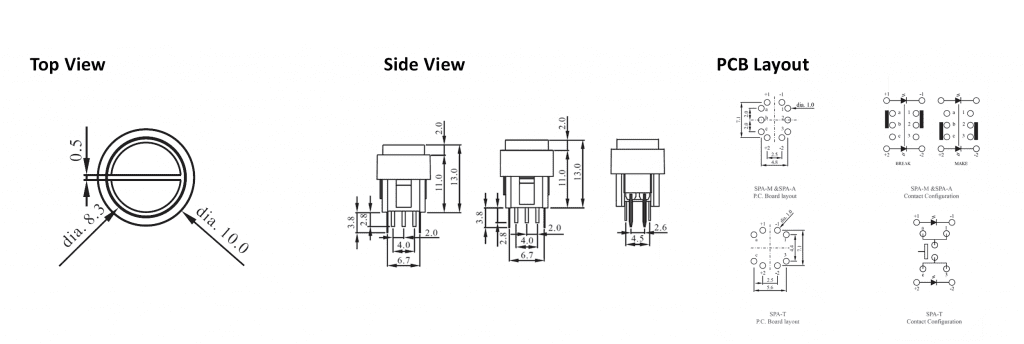

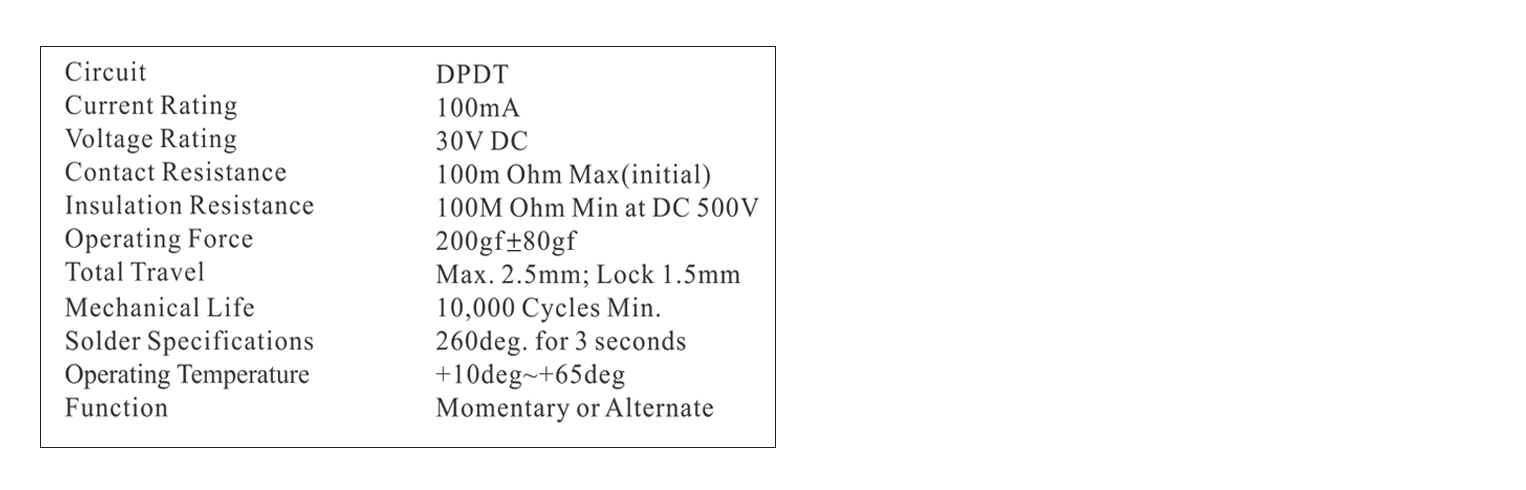

SPA-Z Series Specification (SPA-A & SPA-M)
|
|
| Circuit | DPDT |
| Current rating | 100mA |
| Voltage rating | 30V DC |
| Contact resistance | 100mOhm max.(initial) |
| Insulation resistance | 100MOhm min |
| Operating force | 200gf + 80gf (S1~4) |
| Total travel | Max. 2.5mm: lock 1.5mm |
| Mechanical life | 10,000 cycles min |
| Solder specifications | 260 deg for 3 seconds |
| Operating temperature | -10deg~+65deg |
| Function | Momentary or alternate |
|
SPA-Z Series Specification (SPA-T)
|
|
| Circuit | SPST |
| Current rating | 50mA |
| Voltage rating | 12V DC |
| Contact resistance | 100mOhm max.(initial) |
| Insulation resistance | 100MOhm min |
| Operating force | 180gf + 50gf (S1~4) |
| Total travel | 0.3mm + 0.2mm |
| Mechanical life | 800,000 cycles min |
| Solder specifications | 260 deg for 3 seconds |
| Operating temperature | -10deg~+65deg |
| Function | Tactile |
|

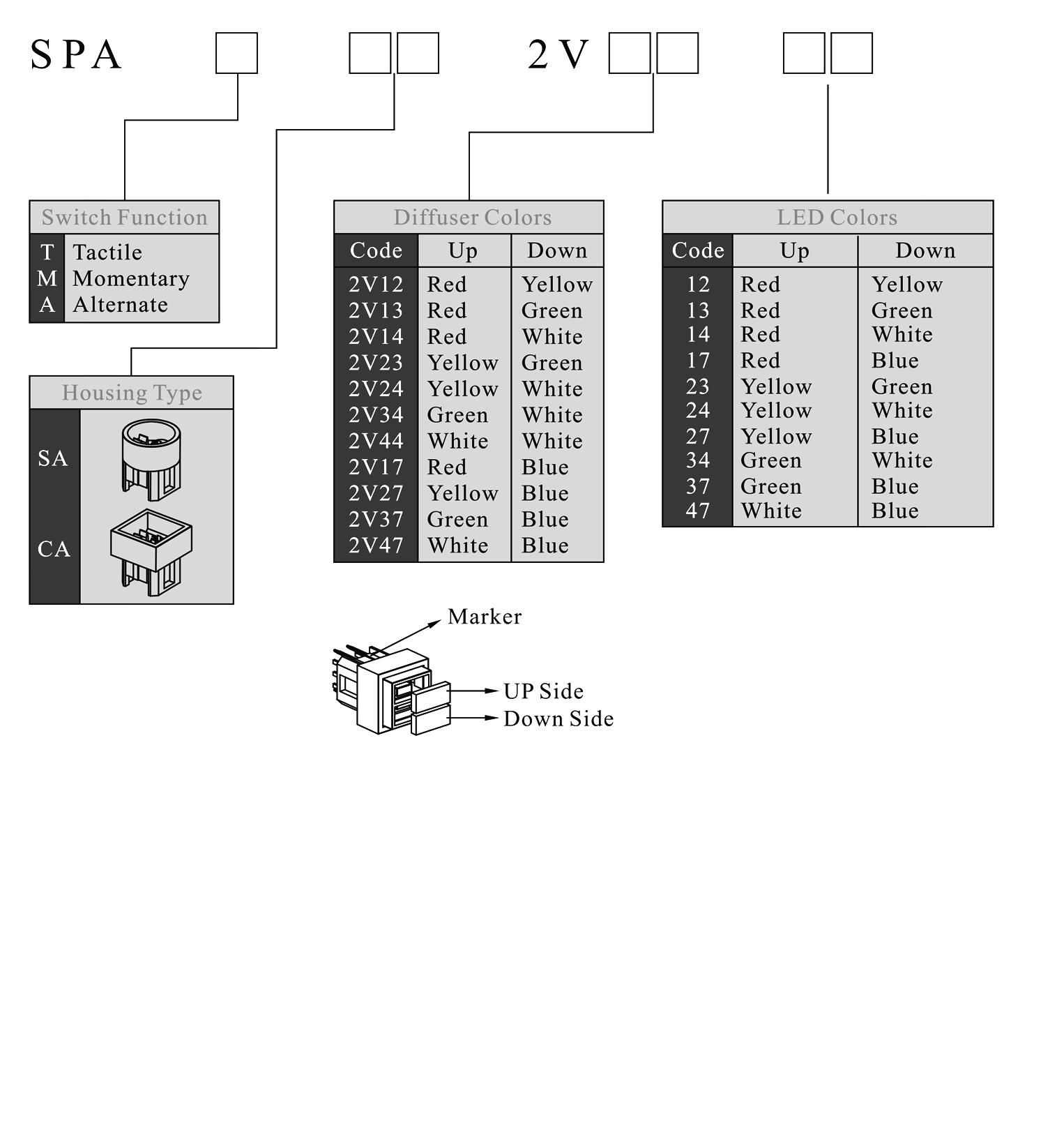

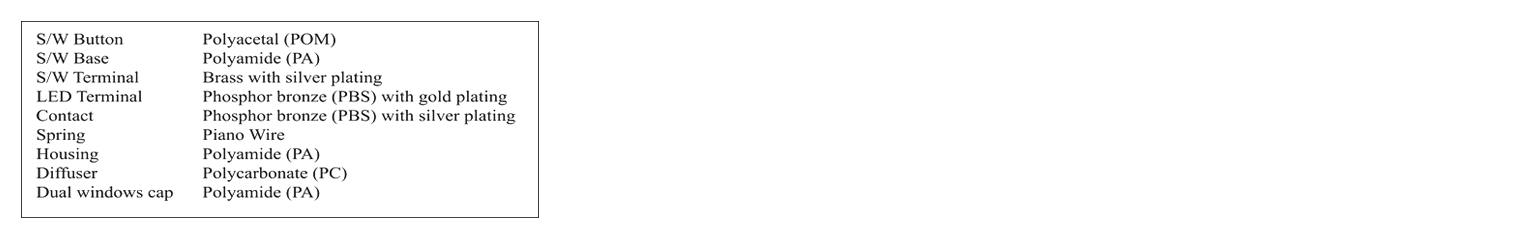

SPA-Z Series Materials (SPA-A & SPA-M)
|
|
| S/W button | Polyacetal (POM) |
| S/W base | Polyamide (PA) |
| S/W terminal | Brass with silver plating |
| LED terminal | Phosphor bronze (PBS) with gold plating |
| Contact | Phosphor bronze (PBS) with silver plating |
| Spring | Piano wire |
| Housing | Polyamide (PA) |
| Diffuser | Polycarbonate (PC) |
| Dual windows cap | Polyamide (PA) |
|
SPA-Z Series Materials (SPA-T)
|
|
| S/W button | Polyacetal (POM) |
| S/W base | Polyamide (PA) |
| S/W terminal | Brass with gold plating |
| LED terminal | Phosphor bronze (PBS) with gold plating |
| Act. dome | Stainless steel with silver plating |
| Housing | Polyamide (PA) |
| Diffuser | Polycarbonate (PC) |
| Dual windows cap | Polyamide (PA) |
