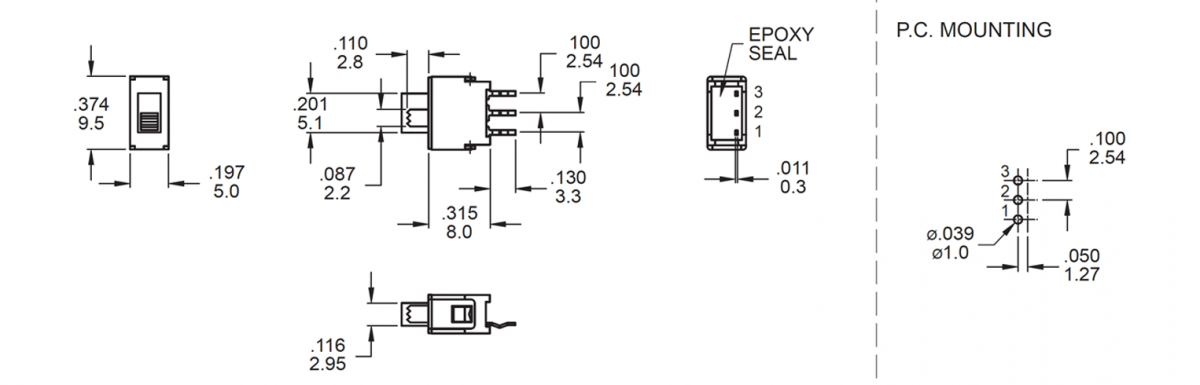

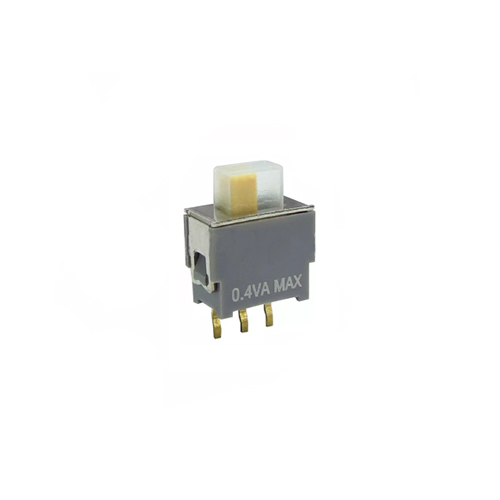

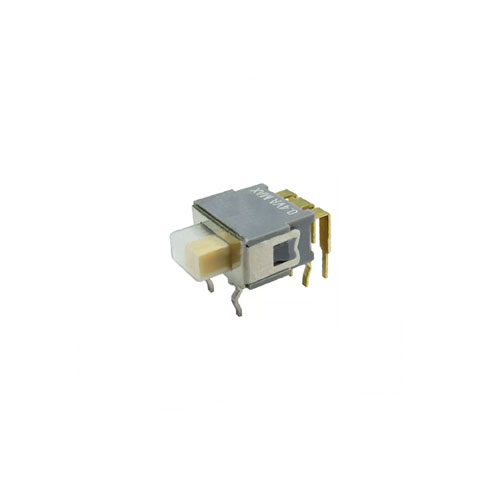

These PCB mount Sub-miniature Slide Switches feature an SPDT or DPDT configuration and an IP67 rating. They have vertical or right-angle mounting and are available with 2 or 3 positions.
Key Features:
| Product Series | |
|---|---|
| Function | |
| IP Rating | |
| Configuration | |
| Orientation | |
| Terminal Options |
| Contact Rating | Max 0.4 VA max @ 48 VAC or DC |
| Mechanical Life | minimum 40,000 operations |
| Contact Resistance | 50 mΩ max. |
| Insulation Resistance | 500 MΩ at 250 VDC. |
| Dielectric Strength | 500V, 50 Hz for the duration of 1 minute |
| Operating Temperature | -20°C to 80°C. |
| Degree of Protection | IP67 |
