Navigation Switch: SF19BA Joystick Style

This Joystick Style Navigation Switch features an LED illuminated backlight and a momentary function. Available with central tactile button style or 4-way joystick style actuators. IP65 rated.

Key Features:

  • Ø 19mm Panel cut out
  • Momentary
  • LED illuminated backlight
  • IP65 rated (from the front)
  • SP5T
  • Central tactile push button
Product Series

Configuration

Function

, ,

IP Rating

Illumination

Panel Cut-Out Diameter



SF19BA-Z Series Specification



Switch circuit SP5T
Current rating 50mA
Voltage rating 12 VDC
Contact resistance 300mΩ max
Insulation resistance 100MΩ min
Operating force Center push 650+200gf

4-direction 250+100gf

Mechanical life 50,000 cycles min
Operating temperature -20deg.C~+70deg.C


SF19BA-Z Series Materials



Cap (type 1, type 2) Polyamide (PA)
Cap (type 3) Polycarbonate (PC)
Reflector Silicone
Base PCABS
Housing SUS
Nuts Polyamide (PA)
Washer Rubber

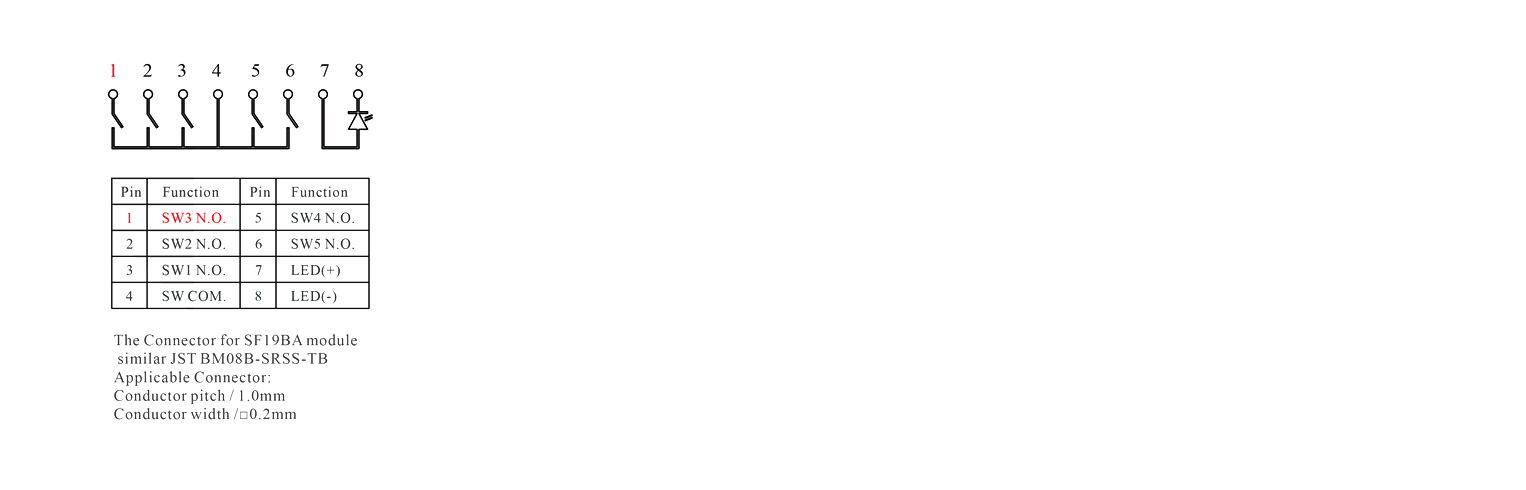

Drawing of Navigation Switch: SF19BA Joystick Style switch with led illumination, tactile momentary function, rjs electronics ltd
