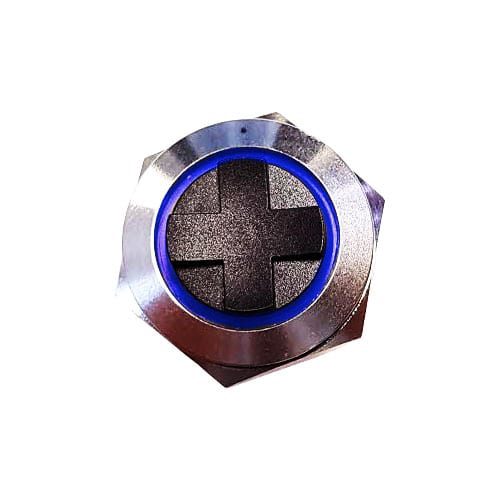

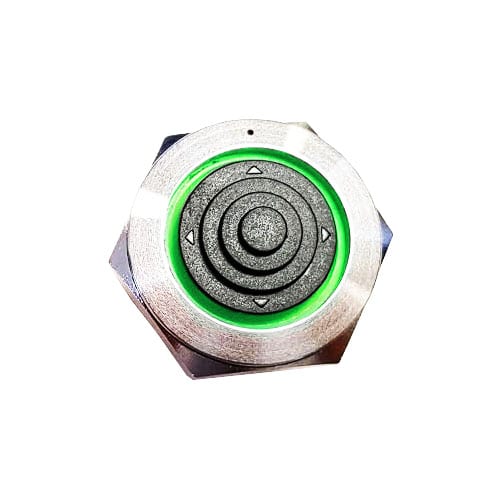

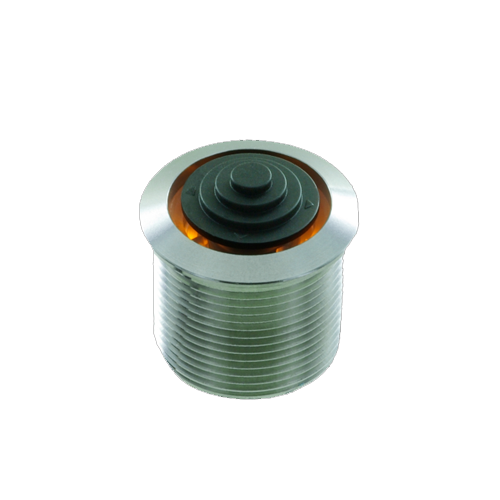

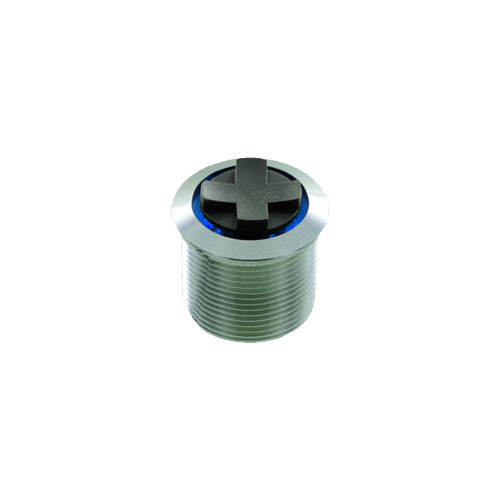

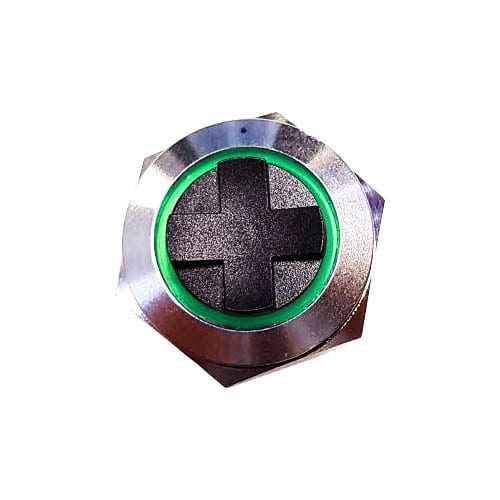

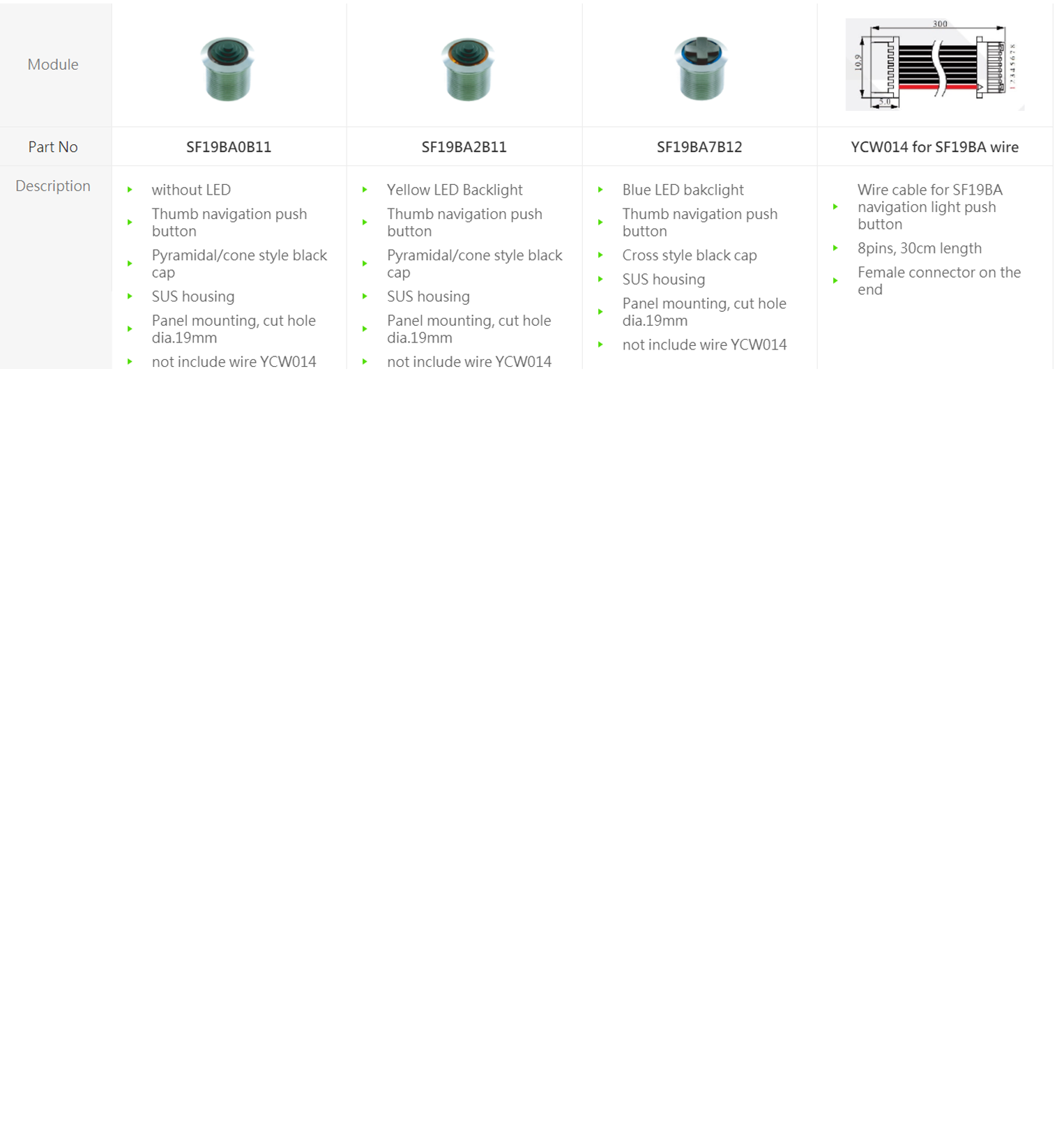

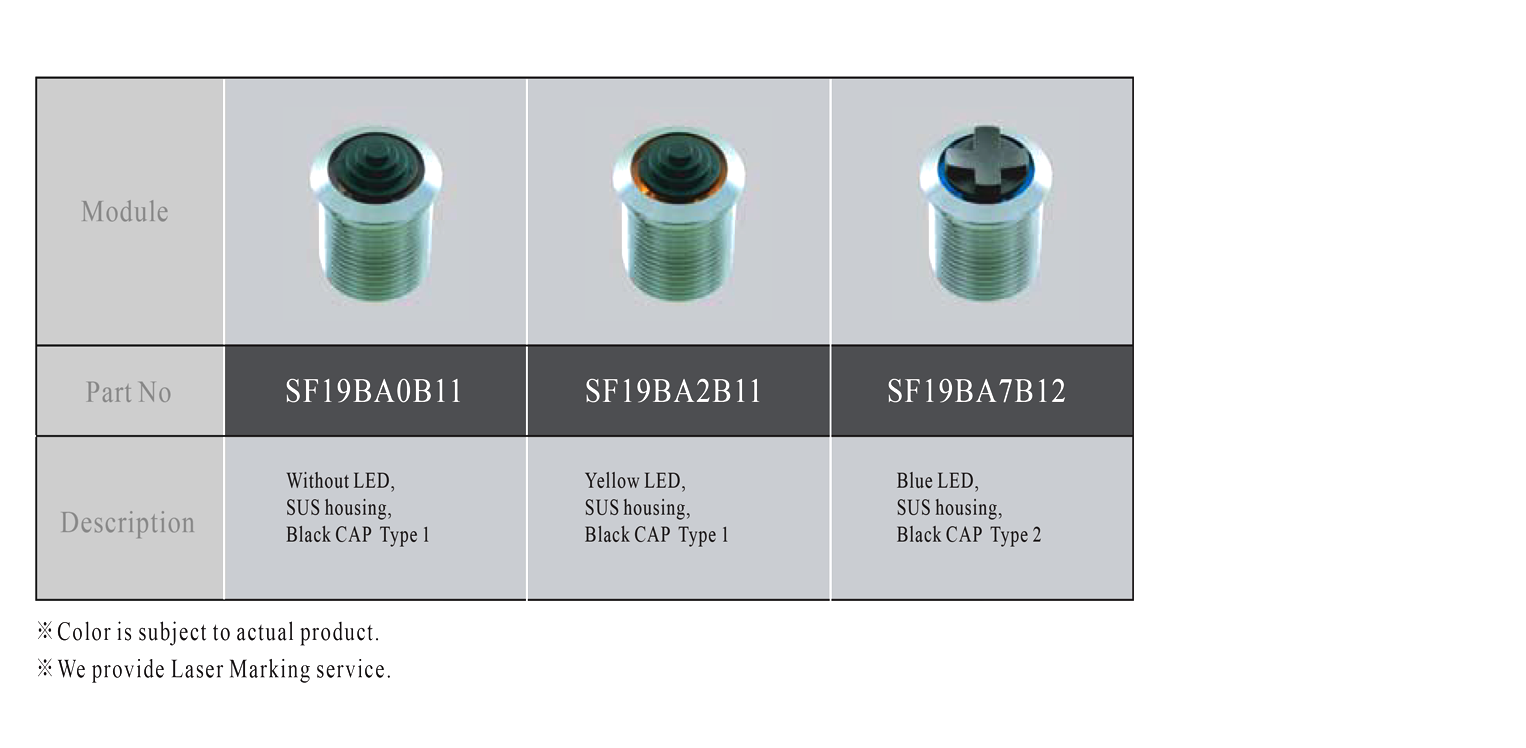

This Joystick Style Navigation Switch features an LED illuminated backlight and a momentary function. Available with central tactile button style or 4-way joystick style actuators. IP65 rated.
Key Features:

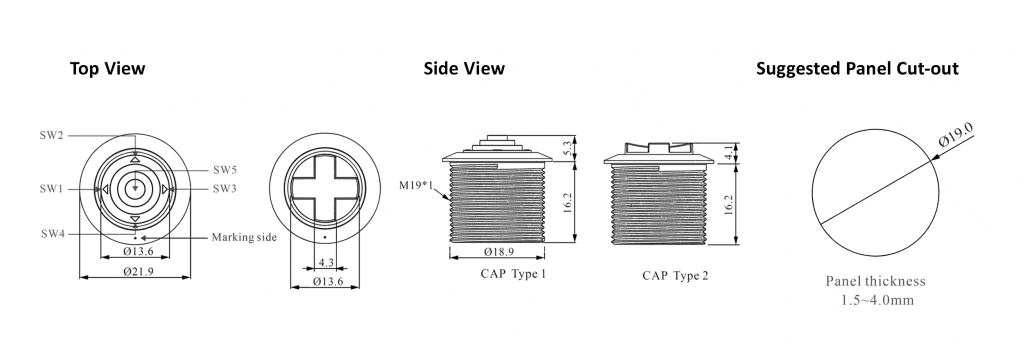

| Product Series | |
|---|---|
| Configuration | |
| Function | |
| IP Rating | |
| Illumination | |
| Panel Cut-Out Diameter |
|

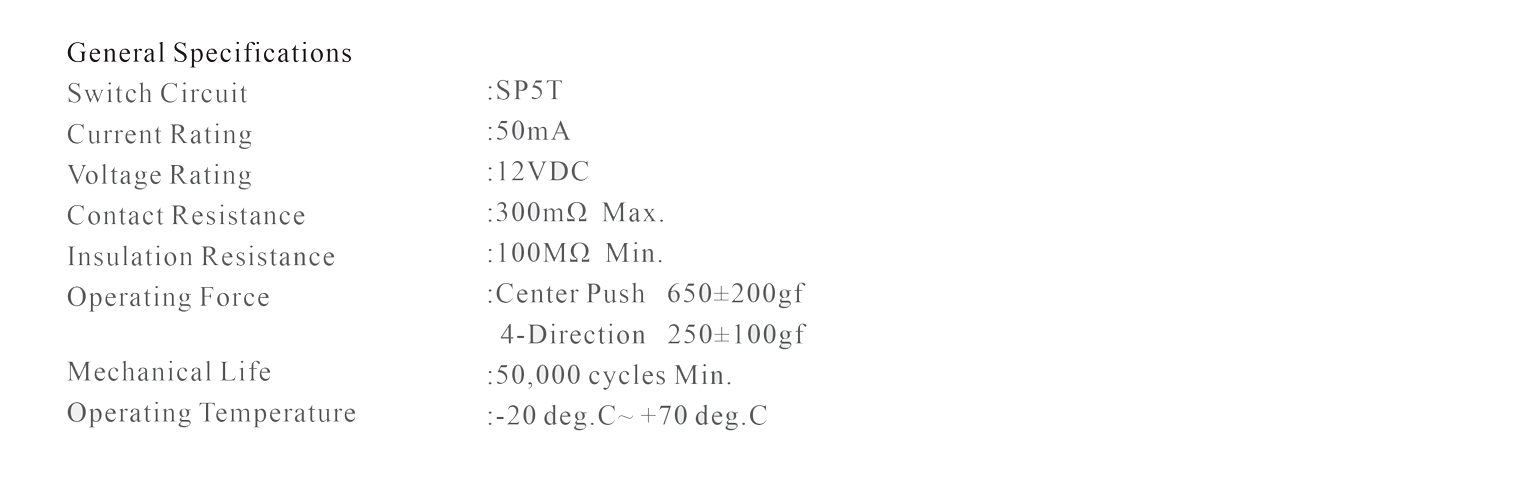

SF19BA-Z Series Specification
|
|

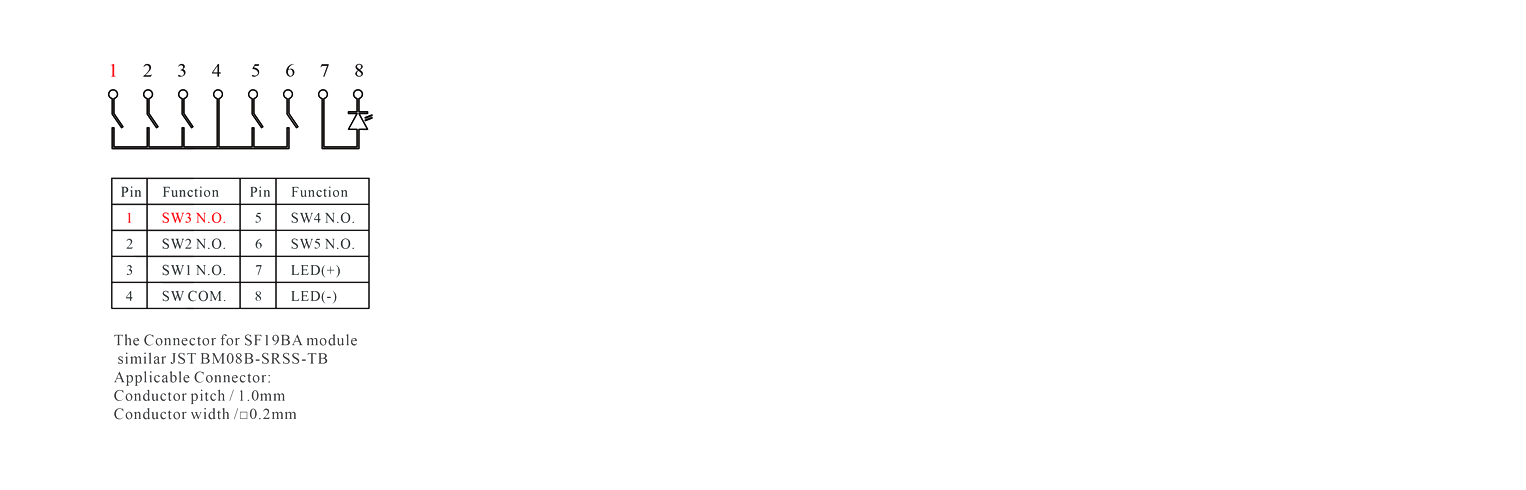

| Switch circuit | SP5T |
| Current rating | 50mA |
| Voltage rating | 12 VDC |
| Contact resistance | 300mΩ max |
| Insulation resistance | 100MΩ min |
| Operating force | Center push 650+200gf
4-direction 250+100gf |
| Mechanical life | 50,000 cycles min |
| Operating temperature | -20deg.C~+70deg.C |
|

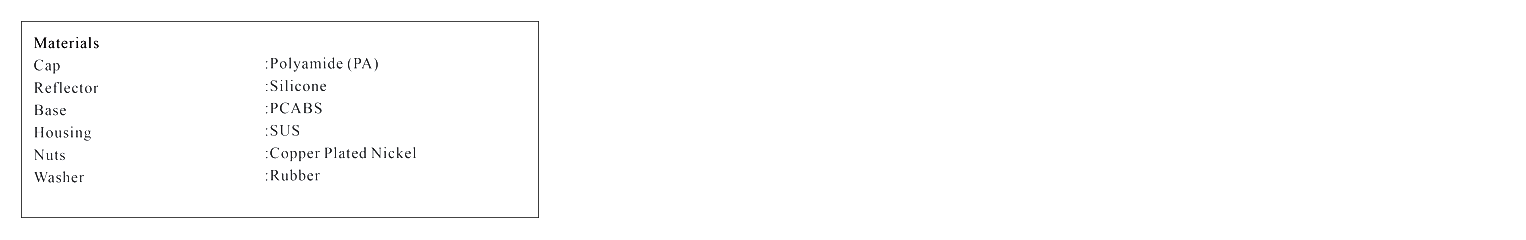

SF19BA-Z Series Materials
|
|
| Cap (type 1, type 2) | Polyamide (PA) |
| Cap (type 3) | Polycarbonate (PC) |
| Reflector | Silicone |
| Base | PCABS |
| Housing | SUS |
| Nuts | Polyamide (PA) |
| Washer | Rubber |
