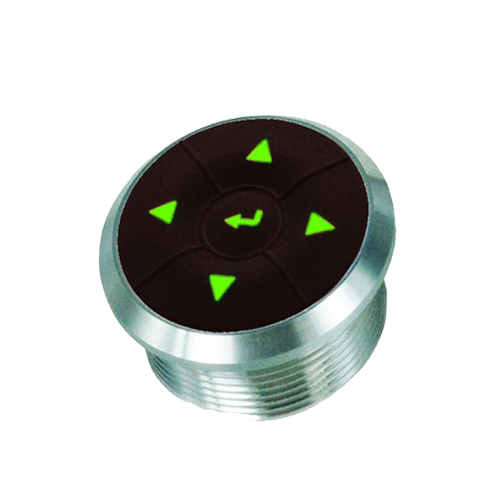

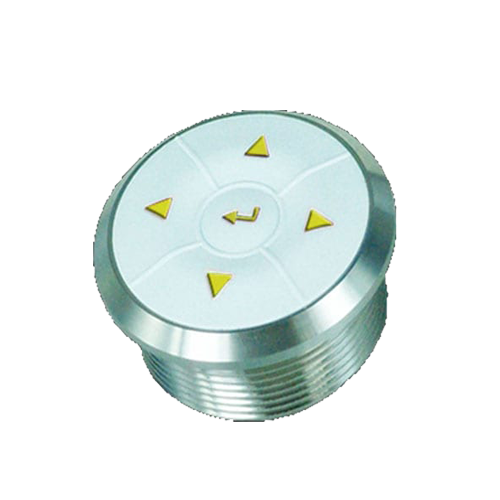

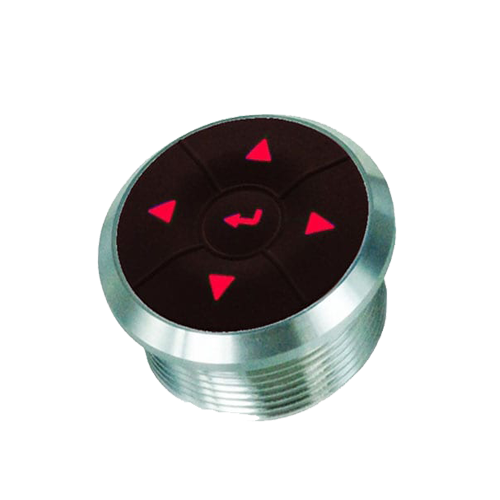

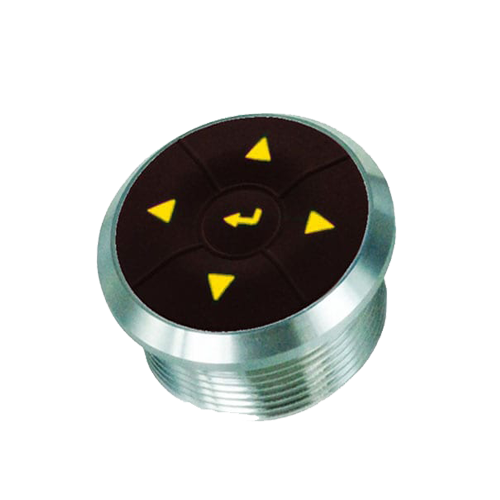

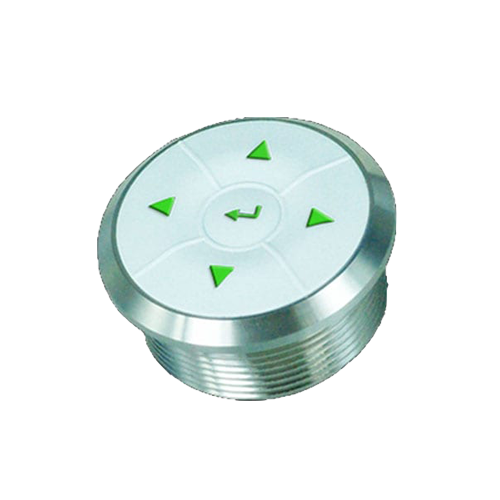

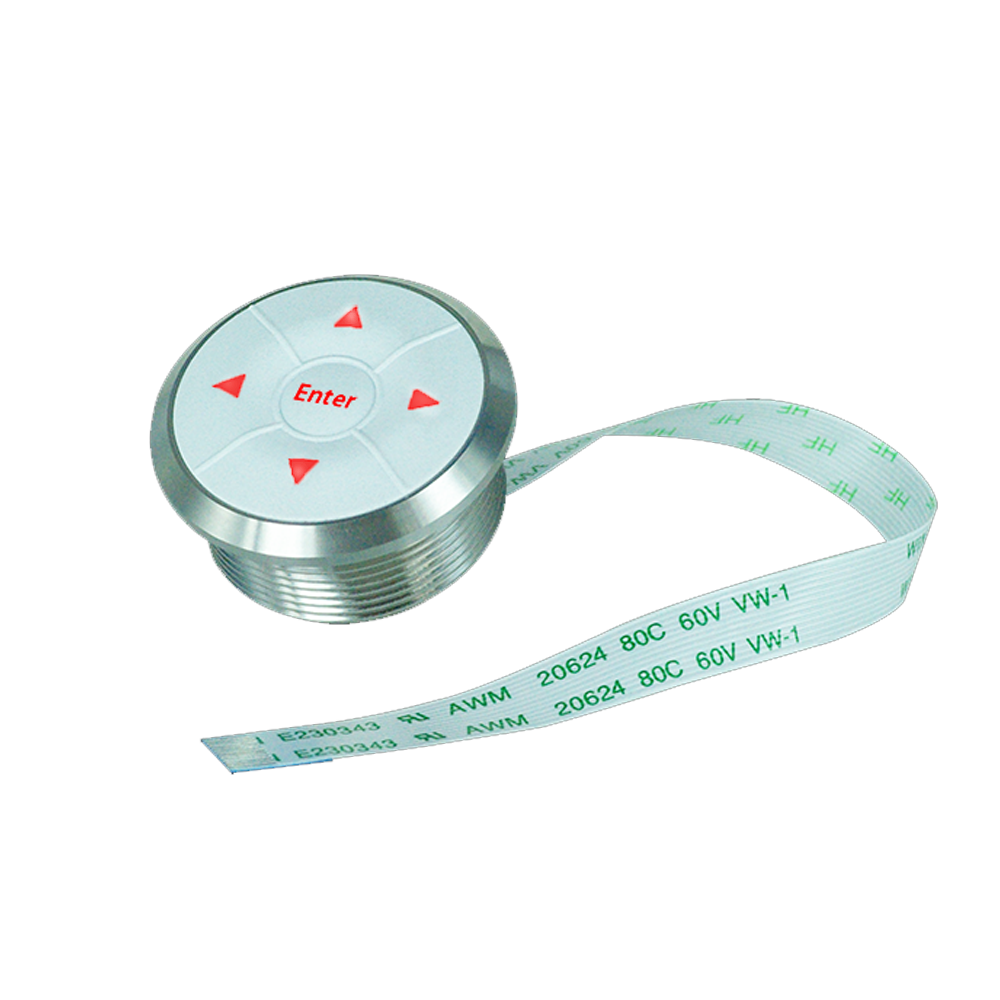

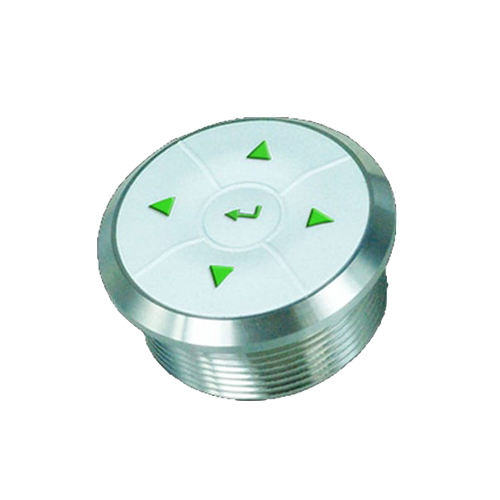

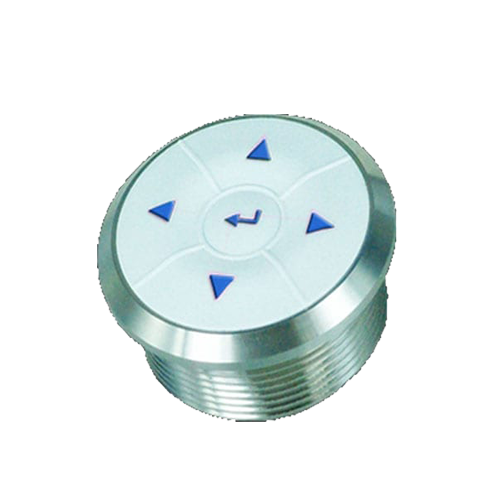

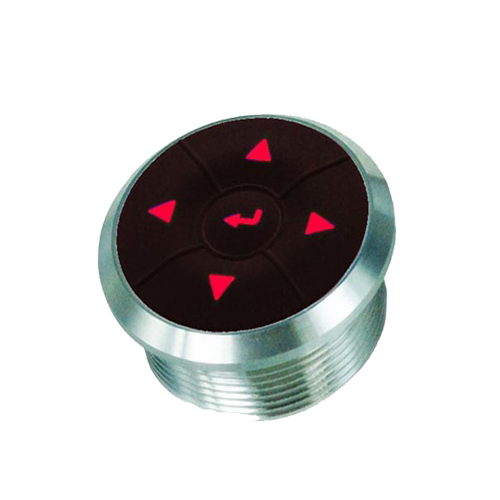

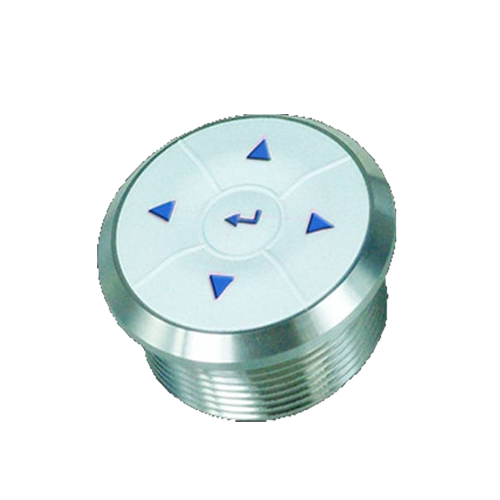

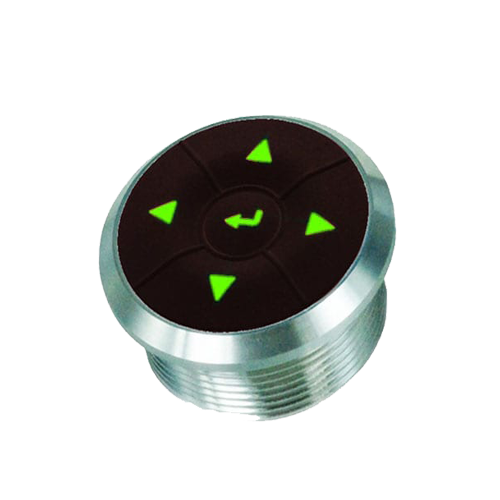

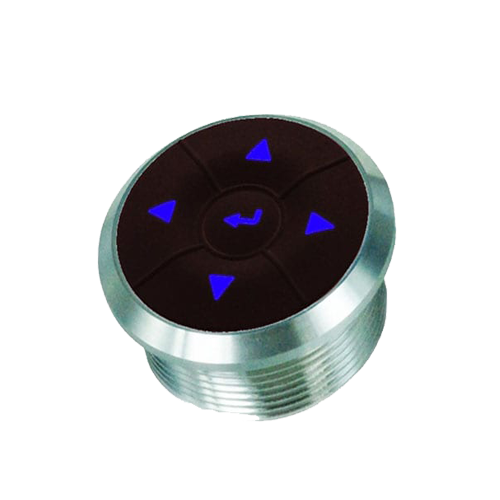

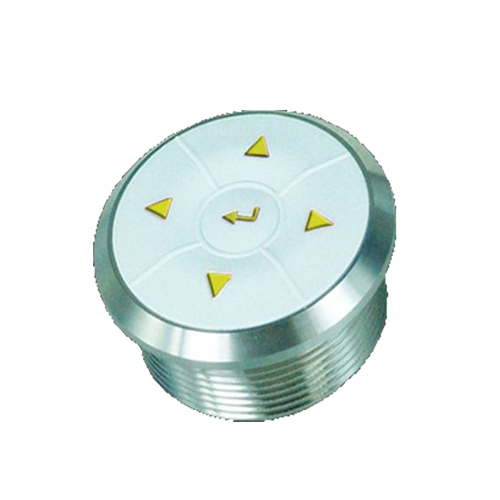

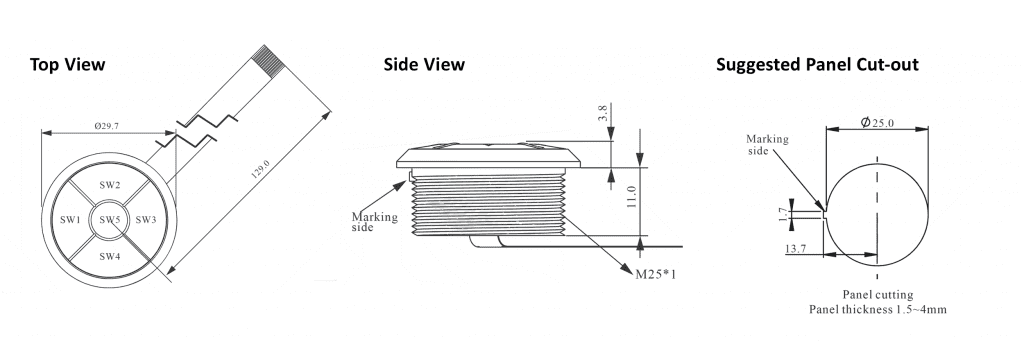

This Navigation Switch features 5 Key Navigation Switches and LED illumination. The cap of the switch is available in black or white, and custom markings can also be added.
Key Features:
| Product Series | |
|---|---|
| Configuration | |
| Diameter (mm) | |
| Function | |
| IP Rating | |
| Illumination | |
| Product Material Options | |
| Switch Travel | |
| Single LED options |
|
SF25WA Series Specification
|
|
| Switch circuit | SPST |
| Current rating | 50mA |
| Voltage rating | 12V DC |
| Dielectric withstanding voltage | 250VAC for 1 minute |
| Contact resistance | 1 Ohm max.(initial) |
| Insulation resistance | 100MOhm min |
| Operating force | 400gf + 100gf (S1~4) |
| Total travel | 1.0mm + 0.3mm |
| Mechanical life | 100,000 cycles min |
| Operating temperature | -10deg~+60deg |
|
SF25WA Series Materials
|
|
| Housing | SUS 316 |
| Cap | Silicone |
| Tactile switches | LCD.SUS silver plating
Cyanide silver plating |
| PCB | FR4 |
| FFC | PET |
| Washer | EVA |
| Nuts | Polyamide (PA) |
