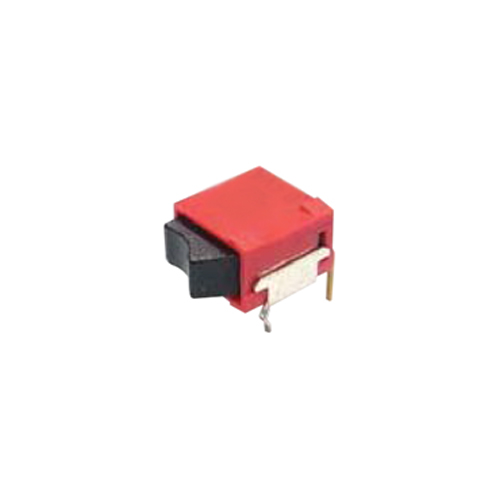

Rocker Switch: 4U-M6-SPDT

  • Ultra-miniature Rocker Switch
  • SPDT
  • Contact Rating up to 0.4VA.
  • Full 4U Series

Applications

  • Automotive
  • Security
  • Door entry
  • Medical
Function

Contact Rating

0.4 VA max. @ 20V AC or DC max.

Mechanical Operations

Contact Resistance

100 mΩ typ. initial @ 2-4VDC, 100mA

Insulation Resistance

DC500V 500 mΩ

Dielectric Strength

500 Vms [email protected] sea level.

Product Series

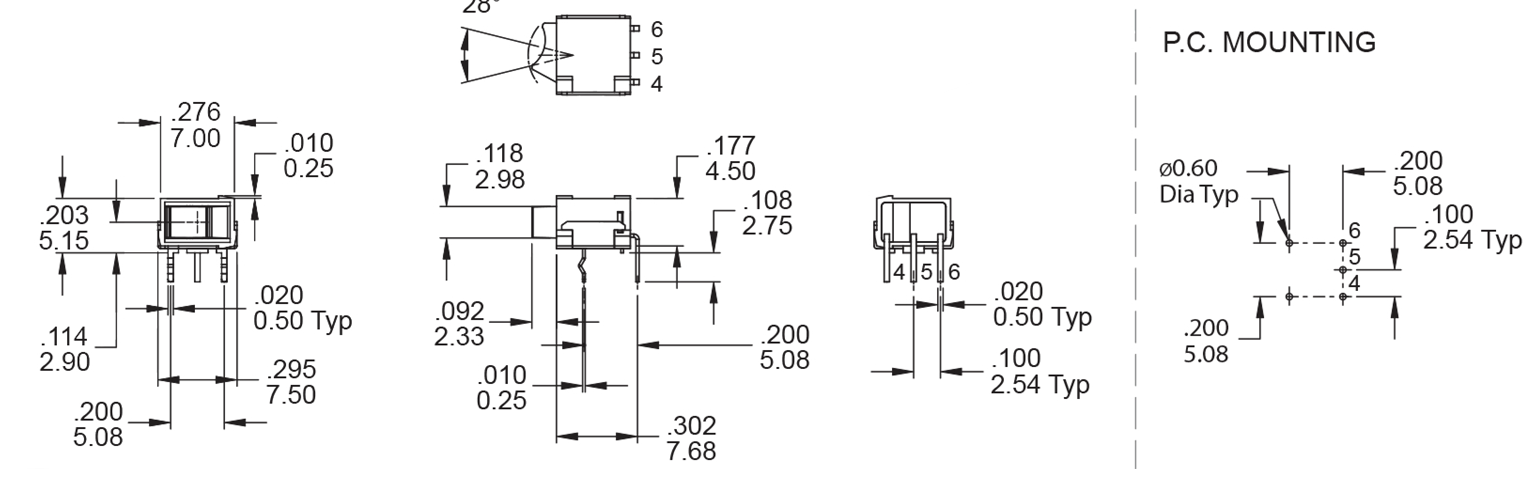

Drawing
Mechanical & Electrical Specs
Materials
