| Function | |
|---|---|
| Contact Rating | 0.4 VA max. @ 20V AC or DC max. |
| Mechanical Operations | |
| Contact Resistance | 100 mΩ typ. initial @ 2-4VDC, 100mA |
| Insulation Resistance | DC500V 500 mΩ |
| Dielectric Strength | 500 Vms min@ sea level. |
| Product Series |

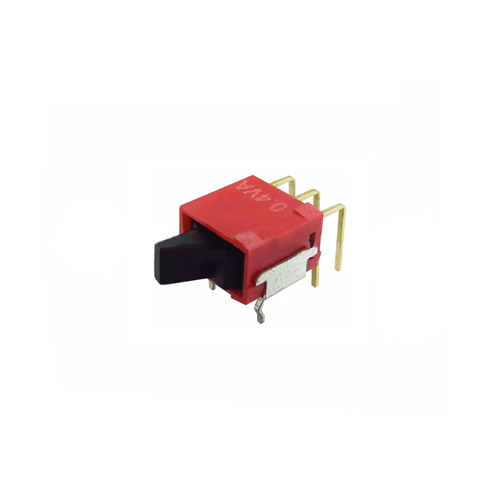

This Ultra-miniature Rocker Switch features a DPDT configuration and a latching function. It has right angle PCB mounting and a contact rating of up to 0.4VA.
Key Features:
| Function | |
|---|---|
| Contact Rating | 0.4 VA max. @ 20V AC or DC max. |
| Mechanical Operations | |
| Contact Resistance | 100 mΩ typ. initial @ 2-4VDC, 100mA |
| Insulation Resistance | DC500V 500 mΩ |
| Dielectric Strength | 500 Vms min@ sea level. |
| Product Series |
|
Contact Rating |
0.4 VA max. @ 20 V AC or DC max. |
|
Mechanical Life |
40,000 cycles |
|
Contact Resistance |
100 m Ω typ. initial @ 2-4VDC 100mA |
|
Insulation Resistance |
DC500V 500 M Ω |
|
Dielectric Strength |
500 vrms min. @ sea level |
|
Operating Temperature |
-30°C to 85°C |
