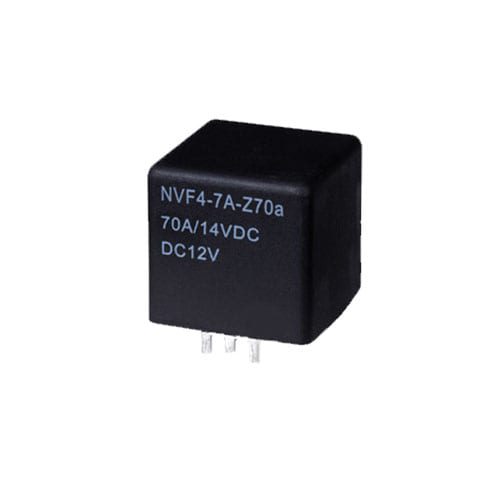

NVF4-7

• Relay

• Small size and lightweight.
• Heavy contact load (70A).
• Suitable for automotive and lamp accessories application.
• PC board mounting and direct insert mounting available.

Function

Contact Arrangement

1A (1 H) (SPSTNO)

Contact Rating (resistive)

70A/14VDC, 50A/14V Cat 85"C)

Max. Switchina Power

980W

Max. Switching Voltage

75VDC
Max. Switching Current:80A

Contact Resistance or Voltage drop

<30m
< 200mV (70A)

Mechanical Operations

Electrical Operations

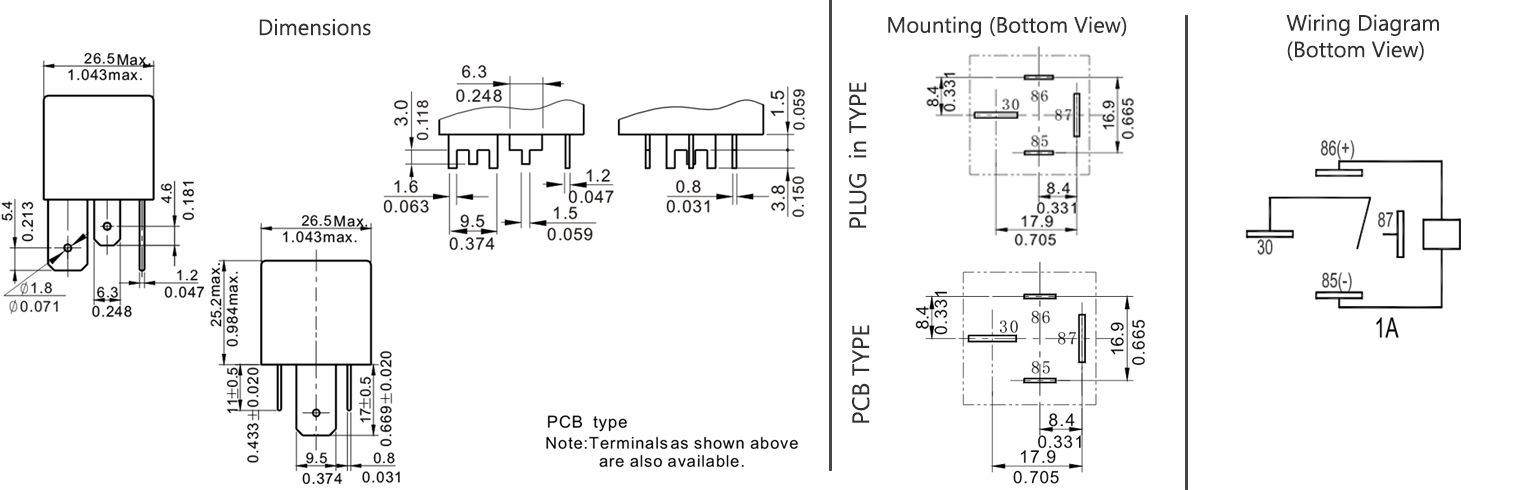

Sizing (mm)

26.5 x 26.5 x 25.2

Circuit
