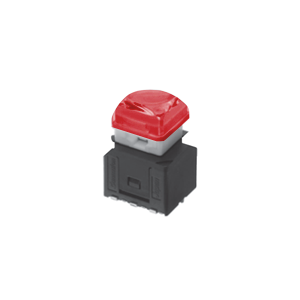

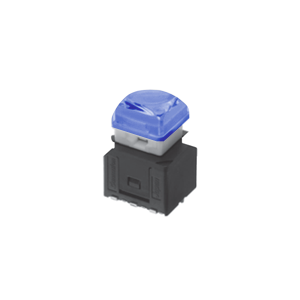

RJS-KA 12mm

PCB Push Button switch

Key Features:

  • LED illuminated push button switch
  • Momentary function (with or without audible click)
  • Single/bi-colour/RGB LED illumination
  • Surface Mount Terminal (SMT)
  • 12mm square cap

Applications

  • Audio & Visual
  • Broadcast
  • Commercial applications



Function

,

Illumination

, ,

Multi-Colour LED Options

Cap / Actuator Shape

, , ,

Terminal Options

Switch Travel

Product Series

RJS-KA Series specifications

Type KA K2 K9
Contact Gold plated
Electrical rating Maximum load: DC24V, 20 mA (resistance band)
Insulation resistance More than 100MΩ at 500V DC
Dielectric strength Between terminals of the same pole: AC1000V

Between terminals and the ground: AC1500V

At 50/60 Hz, each for 60 sec. and normal temperature and humidity

Contact resistance Less than 200mΩ (initial) at DC6V 0.05A Less than 200mΩ (initial) at DC6V 0.1A
Mechanical life More than 3 million operations More than 3 hundred thousand operations
Electrical life More than 3 million operations at max. rated load More than 3 hundred thousand operations at max. rated load
Ambient temperature -15°C~+50°C
Ambient humidity 80% RH (max)

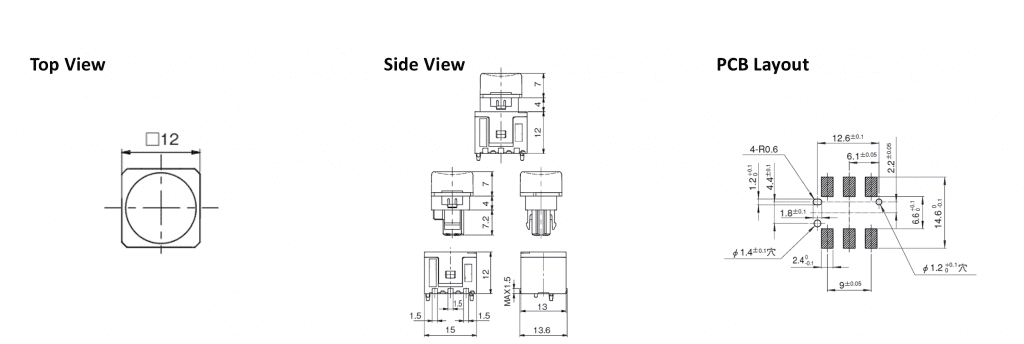

KA 12mm led push button switch, technical drawing, rjs electronics ltd
