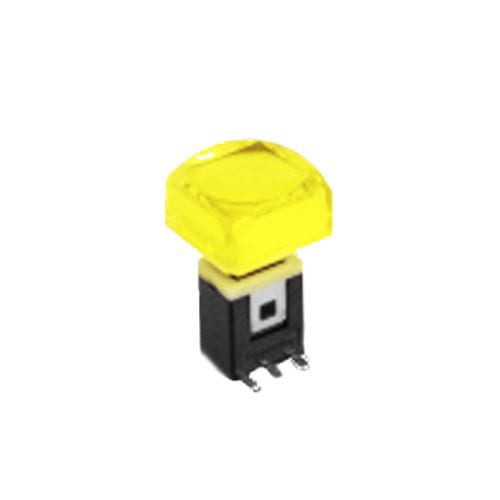

RJS-K2 12mm

This PCB Push Button Switch features a 12mm square cap and a momentary function, with or without a tactile click. It can be LED illuminated, with single or bi-colour illumination options.

Key Features:

12mm square
Flat/raised dot/concave button
LED illuminated/non-illuminated
Momentary function
With or without audible click
Single/bi-colour LED illumination

Function	Push Button Switch, Momentary Switch
Illumination	Dual Colour Illumination, Full Illumination
Cap / Actuator Shape	Square
Single LED options	Green, Red, Yellow
Switch Travel	4.0mm
Terminal Options	PCB Terminals (SMT)
Product Series	RJS-K

Contact	Gold Plated
Electrical Rating	Maximum load: DC24V, 20mA (resistance load)
Insulation Resistance	More than 100MΩ at 500V DC
Dielectric Strength	Between terminals of the same pole: AC1000V Between terminals and the ground: AC1500V At 50/60 Hz each for 60 sec. and normal temperature and humidity
Contact Resistance	Less than 200mΩ (initial) at DC6V 0.1A
Mechanical Life	More than 3,000,000 operations
Electrical Life	More than 3,000,000 operations at max rated load
Ambient Temperature	-15°C to +50°C
Ambient Humidity	85% RH (max)
Operating Force (max)	2.0N
Total Travel (max)	4.0mm
