SPKS

This PCB Tactile Push Button Switch has a rubberised cap and body. It features single, bi-colour or RGB LED illumination options, momentary function and an IP67 rating. This switch has high brightness and is durable.

Key Features:

  • Rubberised cap and body
  • LED illuminated switch
  • Momentary function
  • IP67 Rated (front)

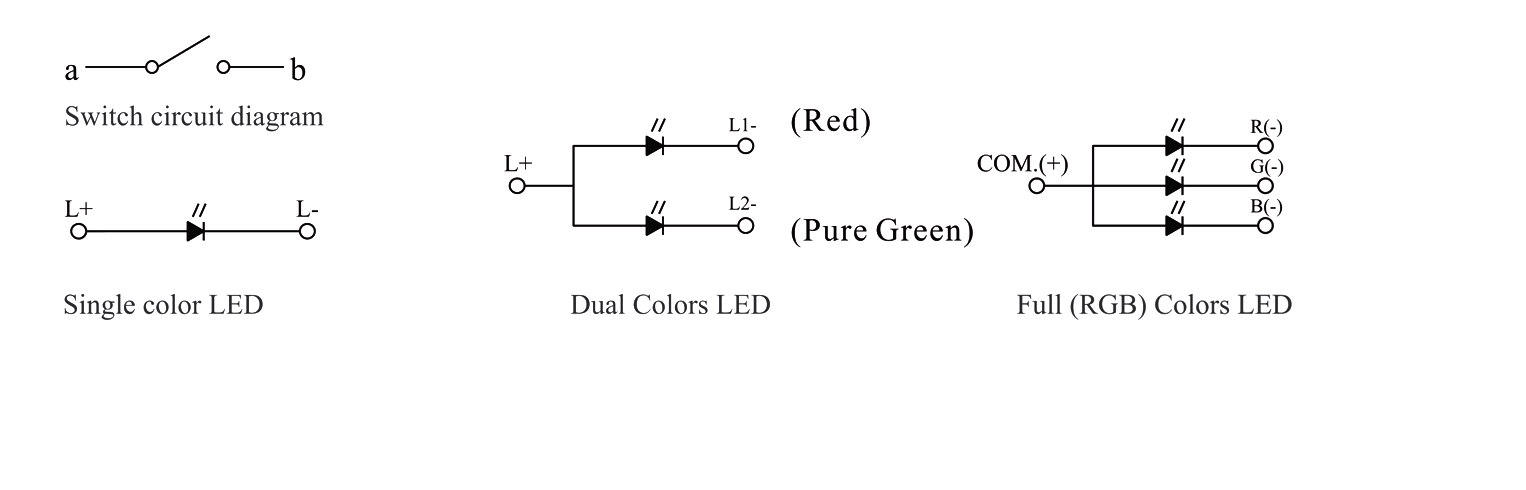

  • Single/bi-colour/RGB LED illumination

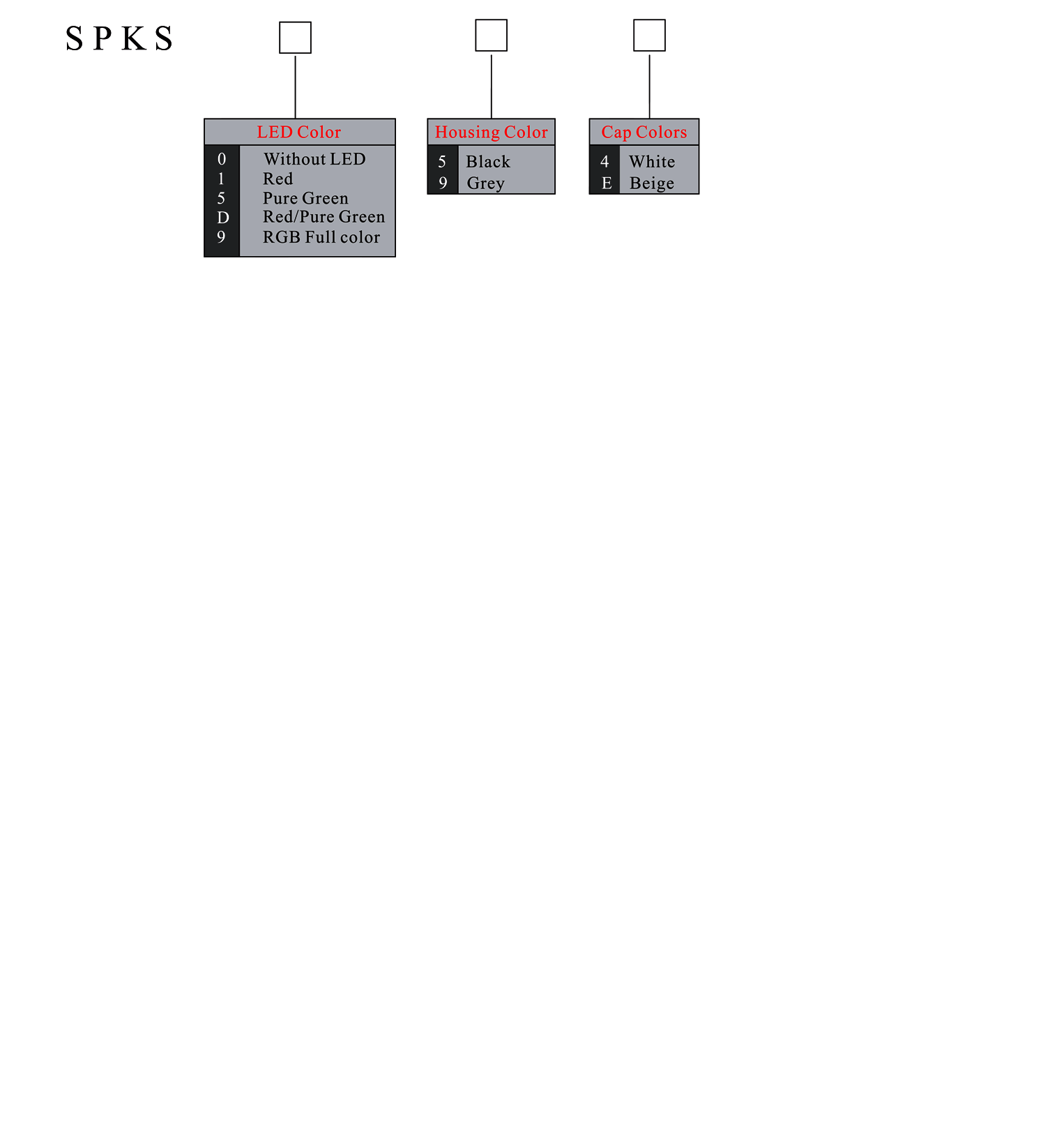

Product Series

Function

Configuration

Multi-Colour LED Options

,

IP Rating

Orientation

Terminal Options

Single LED options

,

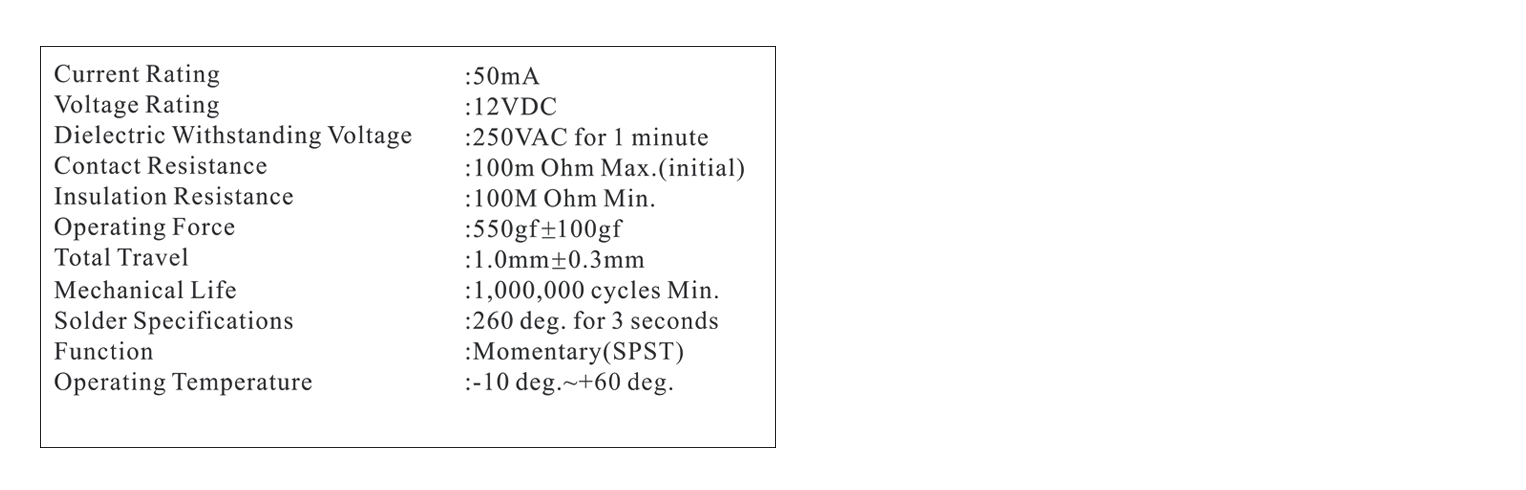

SPK-Z Series Specification



Current rating 50mA
Voltage rating 12 VDC
Dielectric withstanding voltage 250VAC for 1 minute
Contact resistance 100mOhm max.(initial)
Insulation resistance 100MOhm min
Operating force 550gf + 100gf (S1~4)
Total travel 1.0mm + 0.3mm
Mechanical life 1,000,000 cycles min
Solder specifications 260 deg for 3 seconds
Function Momentary (SPST)
Operating temperature -10deg~+60deg

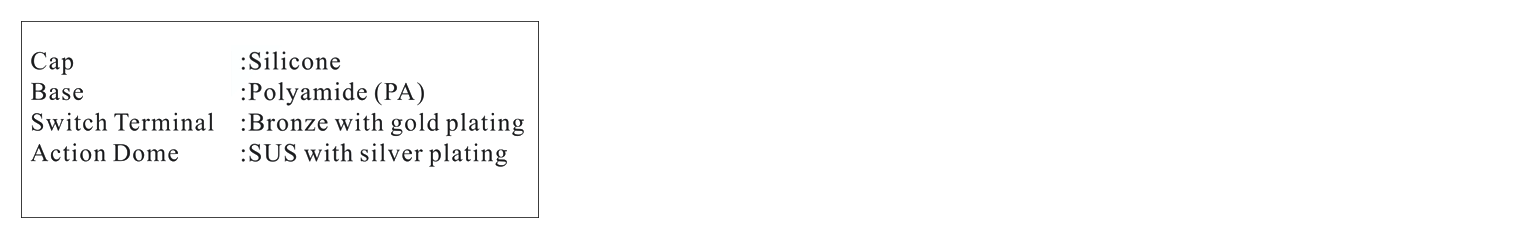

SPK-Z Series Materials



Cap Silicone
Base Polyamide (PA)
Switch terminal Bronze with gold plating
Action dome SUS with silver plating

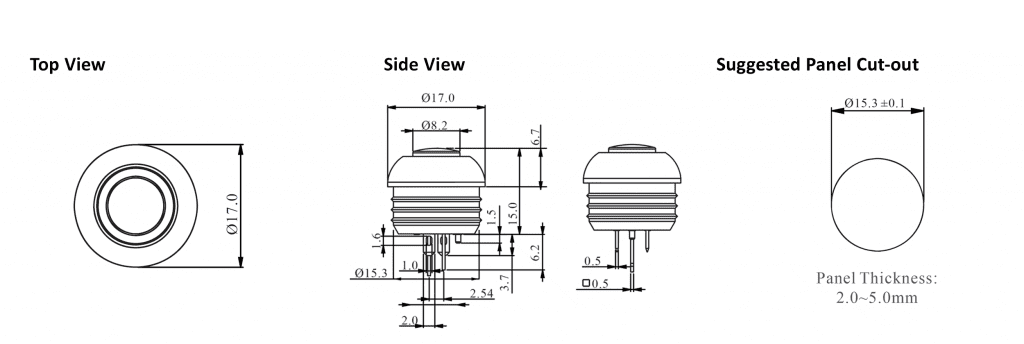

Drawing of SPKS rubberised tactile push button switch, led illuminated, rjs electronics ltd
