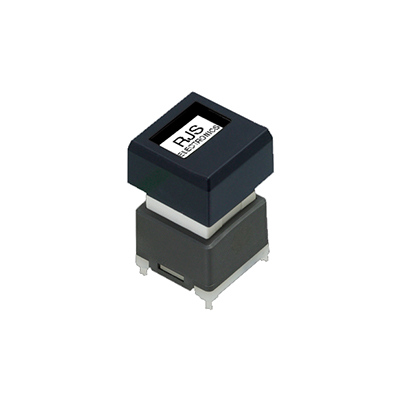

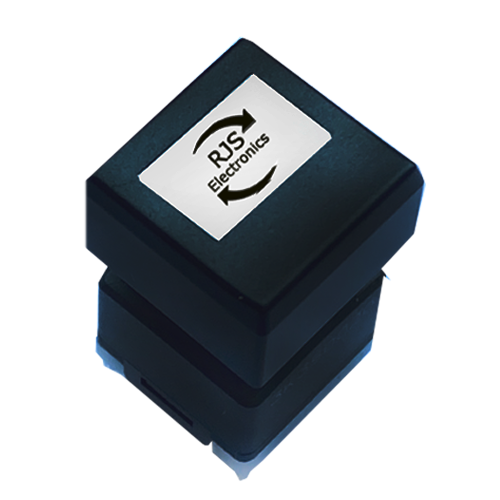

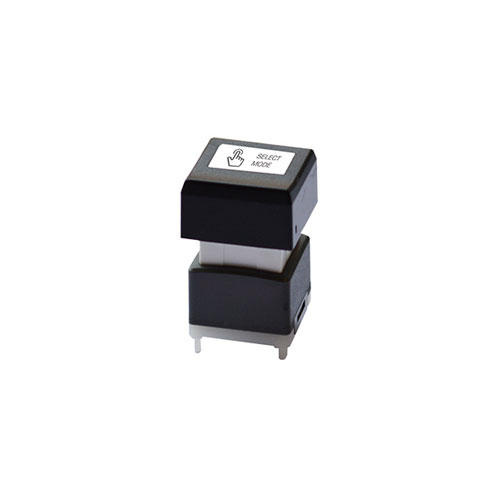

This OLED Display Push Button Switch features a 0.42″, 72*40 pixel high-resolution display. It is fully programmable, with an I2C interface, and has a smooth, silent function.
Key Features:
| Function | |
|---|---|
| Terminal Options | |
| Switch Travel | |
| Configuration | |
| Mechanical Operations | |
| Illumination | |
| Switch Rating | 12V DC @ 100mA |
| Current Rating Voltage
|
100mA |
| Rating | 12VDC |
| Contact Resistance | 100m Ohm (initial) |
| Insulation Resistance | 100M Ohm Min |
| Operating Force | 200gf ± 50gf |
| Total Travel | 4.5mm ± 0.50mm |
| Mechanical Life | 5,000,000 cycles Min. |
| Function | Momentary (SPST) |
| Solder Specifications | 260 °C for 3 seconds |
| Operating Temperature | :-40°C ~ +80 °C |
