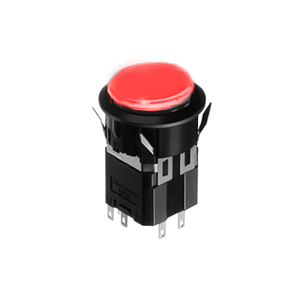

WH Illuminated push button switch - round- 25mm push button switch - redSingle LED illumination, Bi-colour LED Illumination, RGB Illumination, ring LED illumination, dot illumination, full illumination, split face illumination, dual illumination, RJS Electronics Ltd.
Single LED illumination, Bi-colour LED Illumination, RGB Illumination, ring LED illumination, dot illumination, full illumination, split face illumination, dual illumination,

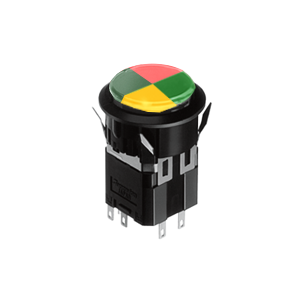

WH Illuminated push button switch - round- 25mm push button switch - 4split face, green+ yellow + red + green - switch LED illumination, full face illumination RJS Electronics Ltd. Single LED illumination, Bi-colour LED Illumination, RGB Illumination, ring LED illumination, dot illumination, full illumination, split face illumination, dual illumination,

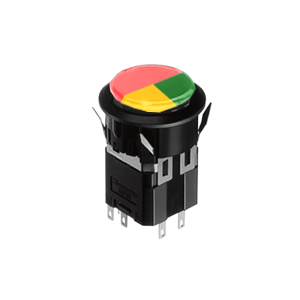

WH Illuminated push button switch - round- 25mm push button switch - 3plit face, yellow + red + green - RJS Electronics Ltd. Switch with LED Illumination, full face, 3split face. Single LED illumination, Bi-colour LED Illumination, RGB Illumination, ring LED illumination, dot illumination, full illumination, split face illumination, dual illumination,

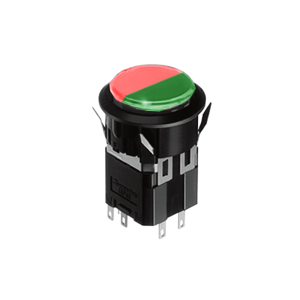

WH Illuminated push button switch - round- 25mm push button switch - red + green Single LED illumination, Bi-colour LED Illumination, RGB Illumination, ring LED illumination, dot illumination, full illumination, split face illumination, dual illumination, RJS Electronics Ltd.

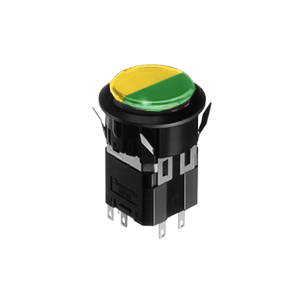

WH Illuminated push button switch - round- 25mm push button switch - green + yellow - RJS Electronics Ltd.

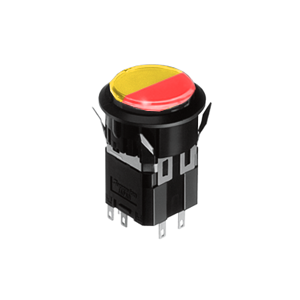

WH Illuminated push button switch - round- 25mm push button switch - red + yellow Single LED illumination, Bi-colour LED Illumination, RGB Illumination, ring LED illumination, dot illumination, full illumination, split face illumination, dual illumination, - RJS Electronics Ltd.

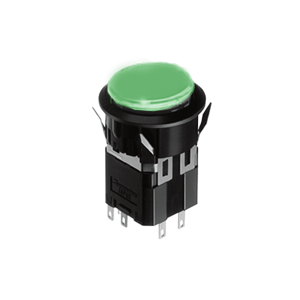

WH Round Illuminated Push Switch

This Illuminated Push Button Switch features a round plastic actuator with LED illumination. It is available with full-face, split-face or dual-colour illumination and a momentary or latching function.

Key Features:

  • 25mm round
  • Momentary/latching function
  • 35mm depth behind panel
  • Full-face/split-face/dual-colour LED illumination
  • Built-in resistor for 5V, 12V, 24V use
  • Precision snap action
  • Accessories available: barriers, guard covers, sockets

Data Sheet

Function

, ,

Product Series

Depth (mm)

Illumination

,

Single LED options

, ,

Cap / Actuator Shape

Contact

Silver Contact

W/E Alloy #1 Cross-bar Contact

Electrical Rating

AC125V, 250V 5A (resistive)

AC125V 0.1A, DC30V 0.1A (resistive)

Insulation Resistance

More than 100MΩ at 500V DC

Dielectric Strength

1000V AC RMS between NC and NO terminal

2000V AC RMS between terminals and ground

50/60 Hz for 60 sec. at normal ambient temperature and humidity

600V AC RMS between NC and NO terminal

2000V AC RMS between terminals and ground

50/60 Hz for 60 sec. at normal ambient temperature and humidity

Contact Resistance

Less than 30mΩ (initial) at DC6V 1A

Less than 50mΩ (initial) at DC6V 1A

Mechanical Life

Momentary Action: more than 1,000,000 operations

Latching Action: more than 200,000 operations

Electrical Life

More than 50,000 operations and max rated load

More than 100,000 operations and max rated load

Ambient Temperature

-15°C to +50°C

Ambient Humidity

80% RH (max)

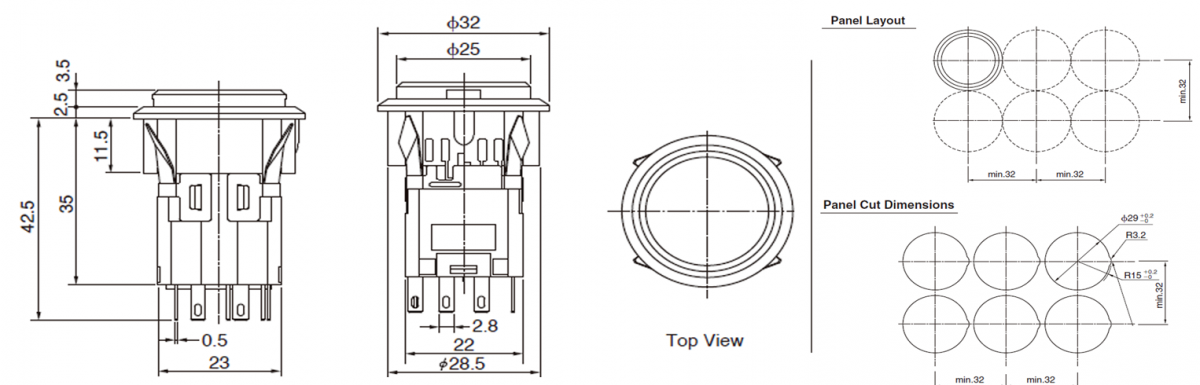

WH-illuminated push button switches - round - drawing 25mm push button switch - Momentary push button switch, momentary function, IP rated, RJS Electronics Ltd.
