| Function | |
|---|---|
| Illumination | |
| Terminal Options | |
| IP Rating | |
| Product Series | |
| Panel Cut-Out Diameter | |
| Sound Intensity | ≥85dB |

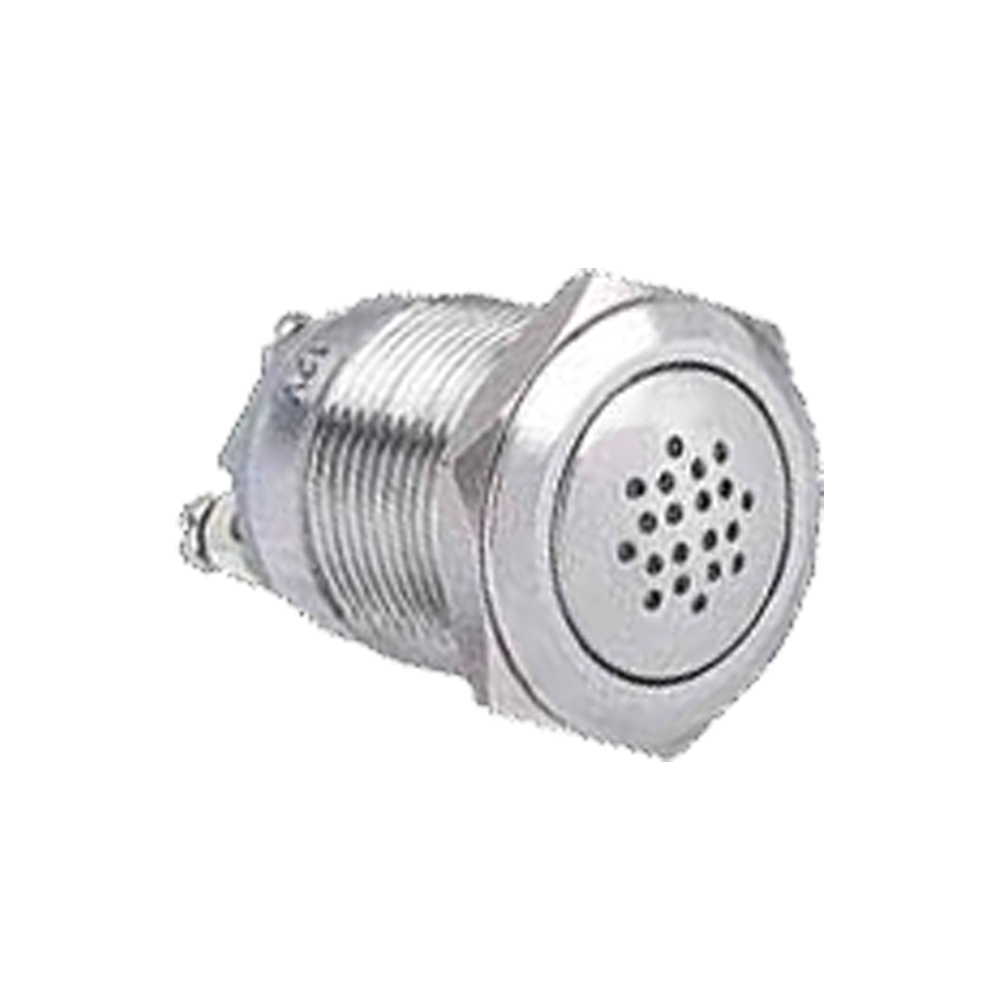

This 19mm Metal Panel Mount Buzzer has an IP40 rating and is non-illuminated. It is stainless steel with a flicker, continuous or incontinuous buzzer sound.
Key Features:
| Function | |
|---|---|
| Illumination | |
| Terminal Options | |
| IP Rating | |
| Product Series | |
| Panel Cut-Out Diameter | |
| Sound Intensity | ≥85dB |

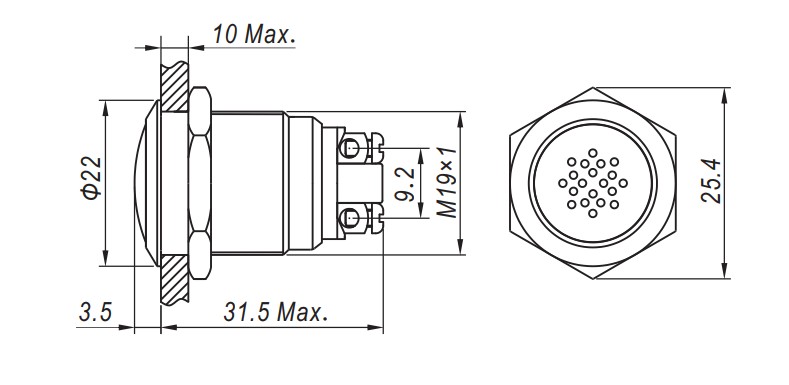

| Mounting Hole Diameter: | Φ19mm |
| Sound Type: | Continuous Sound(M) / Discontinuous |
| Sound(JM) Supply Voltage: | DC12V / DC24V |
| Rated Current: | ≤30mA |
| Buzzer Volume: | ≥85dB(at 0.1m distance) / ≥75dB(at 1m distance) |
| Body Material: | Stainless Steel |
| IP Rating: | IP40, IK04
|
