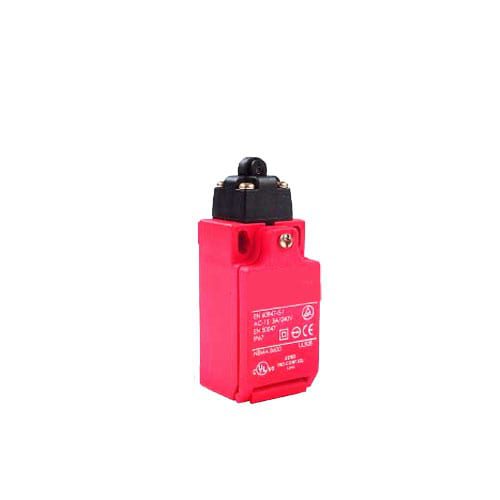

RJSD-32

  • Limit Switch
  • Push Plunger Type

Function

Product Series

Cap / Actuator Shape

Type

RJSD-X-1-31, RJSD-X-2-31, RJSD-X-3-31, RJSD-X-4-31, RJSD-X-5-31

Configuration

Operating Travel (PT)

2.2mm

PT2nd

3.0

Operating Force (OF)

7.26N

Positive Opening Travel (min)

3.2mm

Positive Opening Force (min)

19.0N

Total Travel

6.0mm

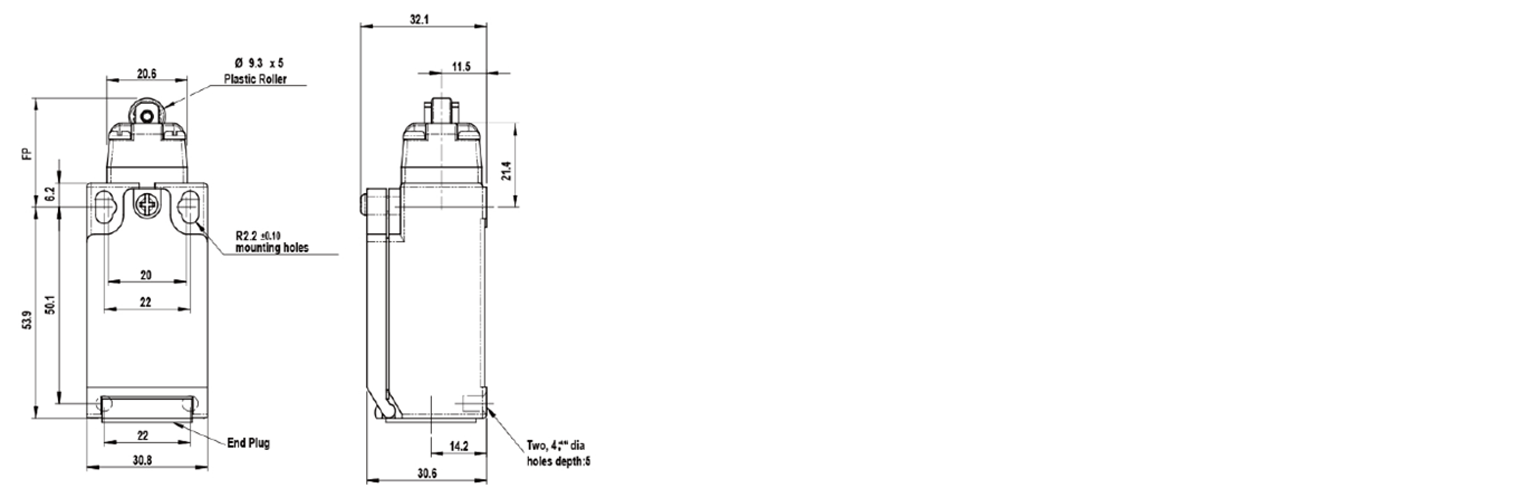

Drawing

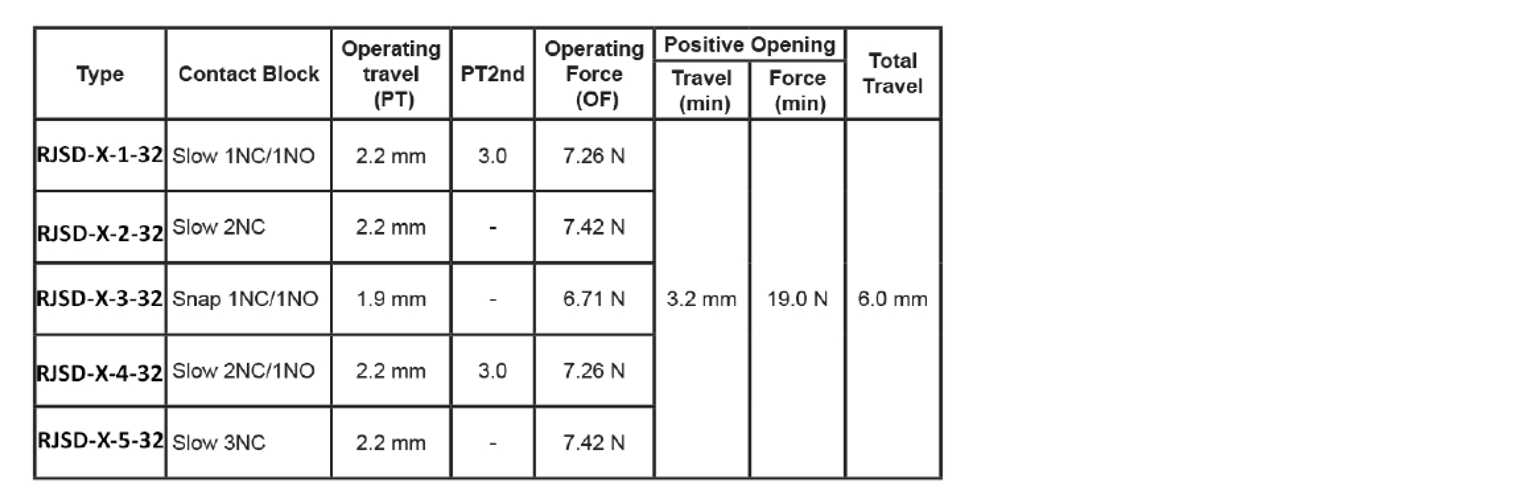

Circuit

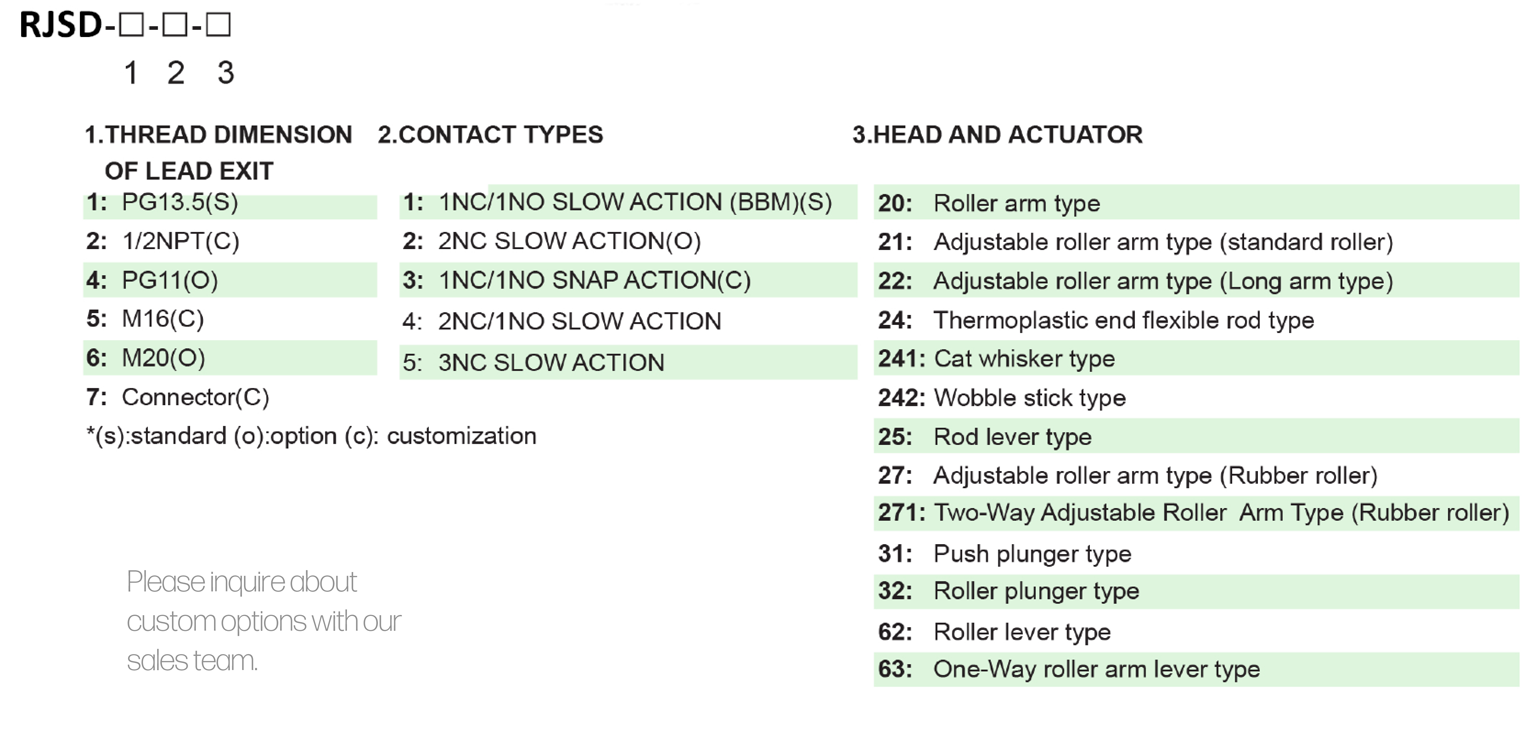

How to order
