| Function | |
|---|---|
| Product Series | |
| Cap / Actuator Shape | |

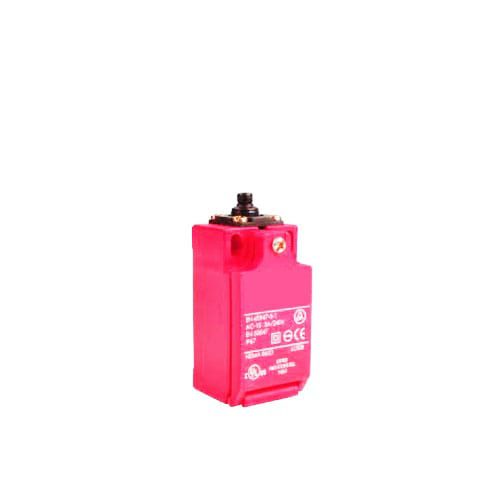

| Type | RJSD-X-1-31, RJSD-X-2-31, RJSD-X-3-31, RJSD-X-4-31, RJSD-X-5-31 |
| Configuration | Slow 1NC/1NO | Slow 2NC | Snap 1NC/1NO | Slow 2NC /1NO | Slow 3NC |
| Operating Travel (PT) | 2.2mm |
| PT2nd | 3.0 |
| Operating Force (OF) | 7.26N |
| Positive Opening Travel (min) | 3.2mm |
| Positive Opening Force (min) | 19.0N |
| Total Travel | 6.0mm |
|
RJSD Series Specification
|
|
| Standards | EN60947 -5 -1, UL508, EN50047, EN1088 |
| Approvals | cULus, TUV and CE marked for all applicable directives |
| Positive Opening Operation | NC Contact |
| Utilization Category | AC15 A600 |
| Min Current | 5V, 5mA, DC |
| Thermal Current (Ith) | 10A |
| Rated Insulation Voltage | 600V AC |
| Rated Impulse withstand Volt | 2500V AC |
| Insulation Resistance | 100MΩ min. (DC 500V) |
| Contact Resistance | 25mΩ max. (Initial) |
| Max Switching Speed | 250mm/s |
| Max Switching Frequency | 6000 operation per hour |
| Enclosure Protection | IP 67 |
| Operating Temperature | Min -25°C(-18°F) Max 80°C (+176°F) |
| Mechanical Life Expectancy | 1 x 10 Cycles min |
| Electrical Life Expectancy | 150,000 Cycles min |
