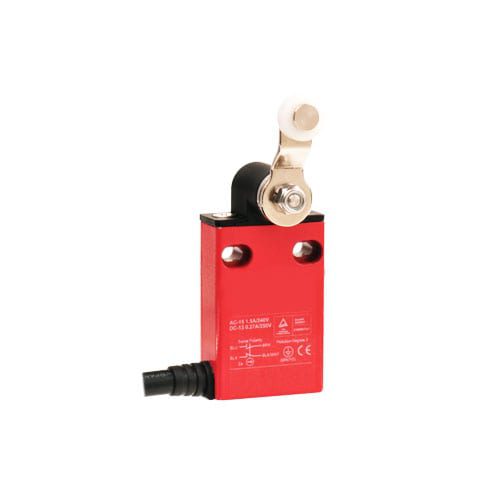

RJSFM-(Cable Entry)-3-20

Function

IP Rating

Product Series



RJSFM Series Specification



Safety ratings
Standards EN 945-1, ISO 13849-1, IEC/EN 60204-1, NFPA 79, EN 1088, ISO 14119, IEC/EN 60947-5-1, ANSI B11.19 AS 4024.1
Safety Classification Cat. 1 Device per EN 945-1 Dual channel limit switch suitable for Cat 3 or 4 systems
Certifications TUV and CE, marked for all applicable directives
Outputs
Safety Contacts 1 N.C. snap acting
Auxiliary Contacts 1 N. O
Thermal Current (Ith) 10A
Rated Insulation Voltage (ui) 300 A
Short Circuit Protection 1 0A max. fast acting I EC 60269

type gG or equivalent

Environmental
Enclosure Type Rating NEMA 1, IP66 and IP67
Operating Temperature [C (F)] 2…. + 70° (35.6 …. +158°)
Pollution Degree 3
Physical characteristics
Housing Material Die Cast Alloy
Actuator Material Various polymers and metals
Mounting 2 x M4, Any position
Vibration IEC 68-2-6 (10 …. 55Hz,0.35 mm amplitude)
Shock IEC 68-2-7(30 Gn 3 pulses per axis)
Connection 2m (6.5 ft) cable
Enclosure Colour Red body/black hear
Operating characteristics
Actuation Speed. Max 250 mm/s
Actuation Speed. Min. 100 mm/min
Actuation Frequency, Max 6000 operation per hour
Mechanical life 1 x 107 operation at room

temperature
