| Function | |
|---|---|
| Contact Resistance | 25mΩ max. (initial) |
| Electrical Operations | |
| Mechanical Operations | |
| Product Series | |
| Insulation Resistance | 100MΩ min. (at 500VDC) |
| Dielectric Strength | 1,000VAC,50/60Hz for 1 minute |

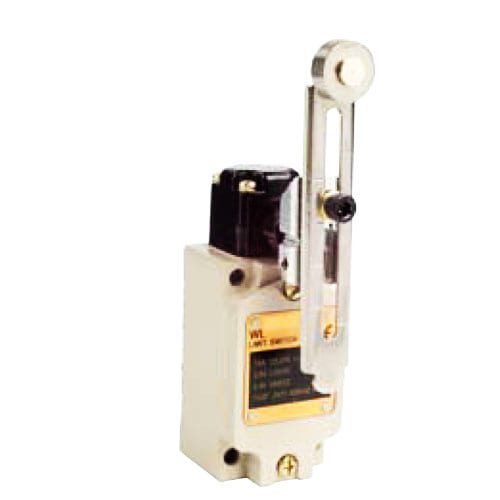

- High precision and metal die-casting body.
- Easy to wire connection construction
- High mechanical strength
- Dust-proof construction
- Rating: 10A, 125V or 250VAC

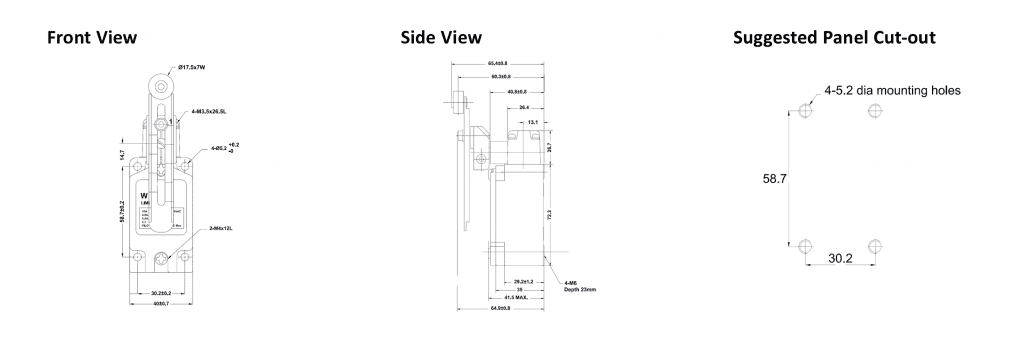

Drawing
Circuit

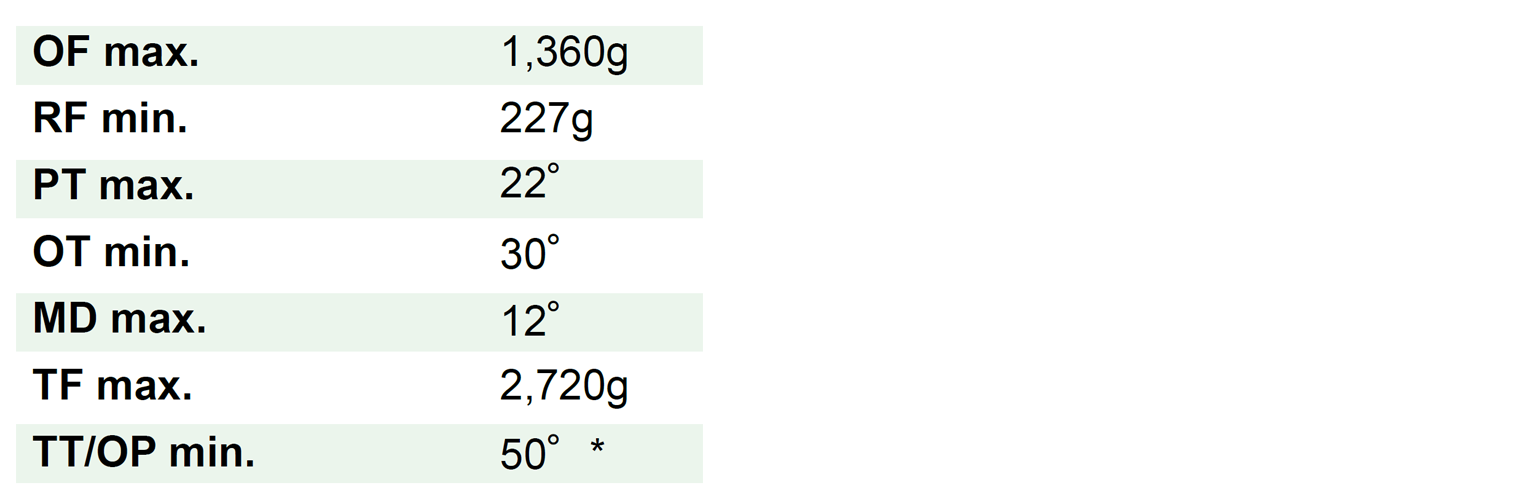

Mechanical & Electrical Specs
How to order
