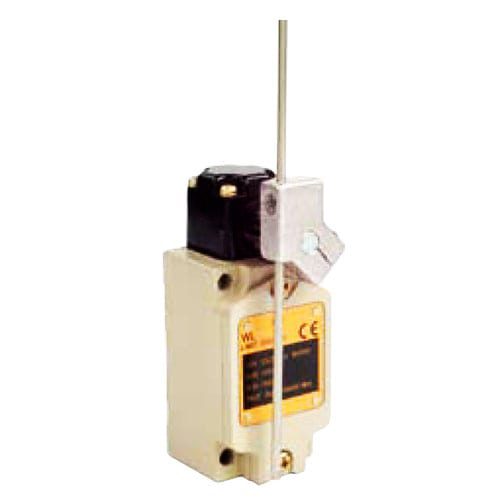

WL5107

  • High precision and metal die-casting body.
  • Easy to wire connection construction
  • High mechanical strength
  • Dust-proof construction
  • Rating: 10A, 125V or 250VAC



Function

Rating

10A, 125V or 250VAC

Contact Resistance

25mΩ max. (initial)

Dielectric Strength

1,000VAC,50/60Hz for 1 minute

Insulation Resistance

100MΩ min. (at 500VDC)

Electrical Operations

Mechanical Operations

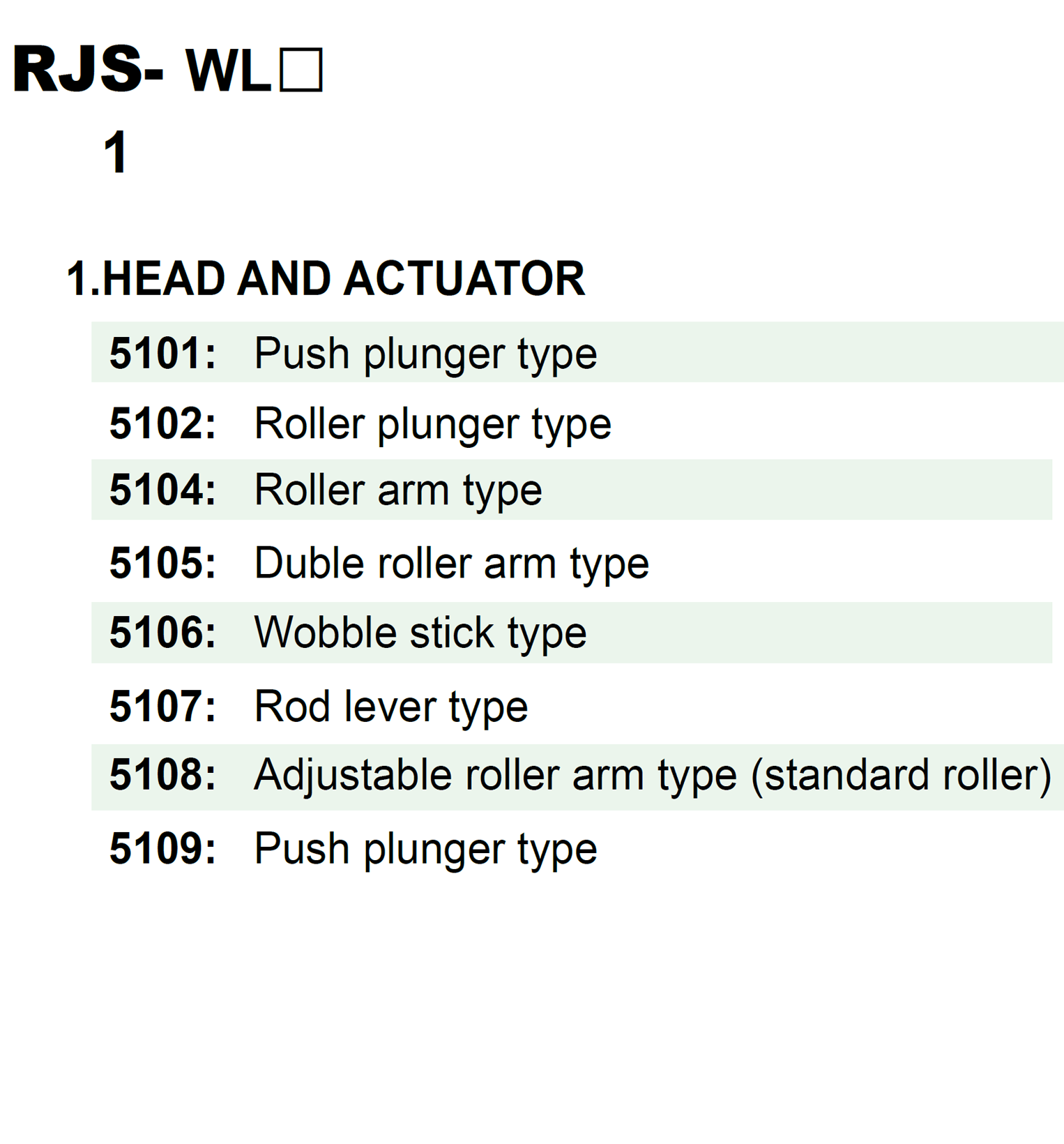

Product Series

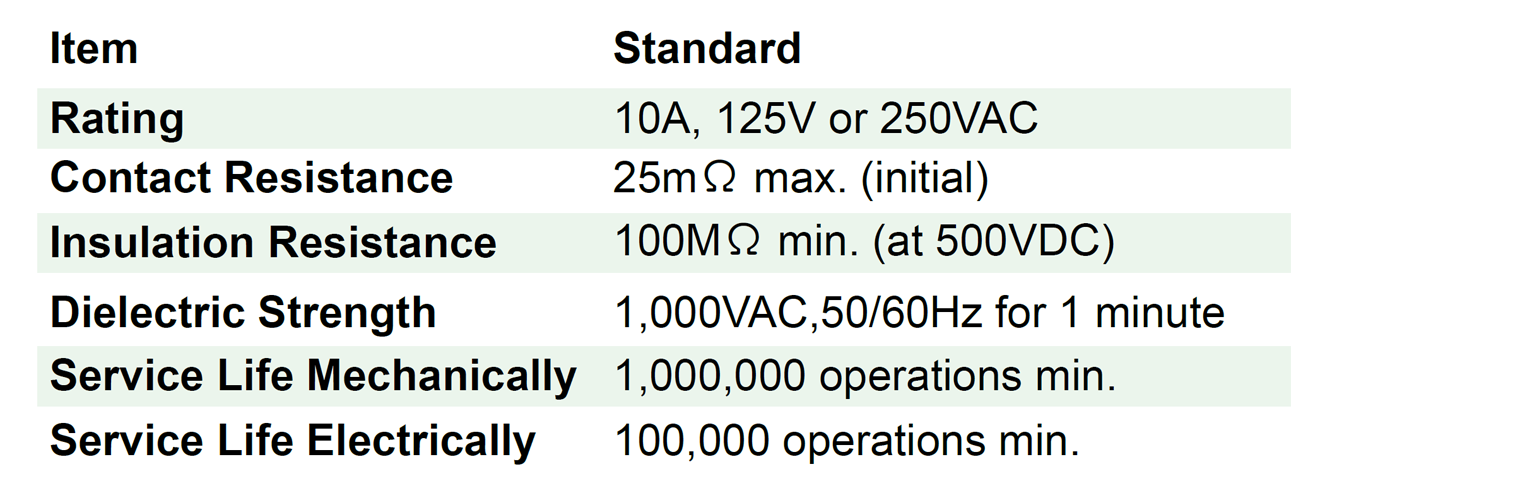

WL Series Specification



Rating 10A, 125V or 250VAC
Contact resistance 25MΩ max. (initial)
Insulation resistance 100MΩ min. (at 500VDC)
Dielectric strength 1000VAC (50/60 Hz for 1 minute)
Service life mechanically 1,000,000 operations min.
Service life electrically 100,000 operations min.
