Industrial control, limit switch, WL Series, a range of actuators, IP Rated, a range of contact resistance, non-illumination RJS Electronics Ltd.

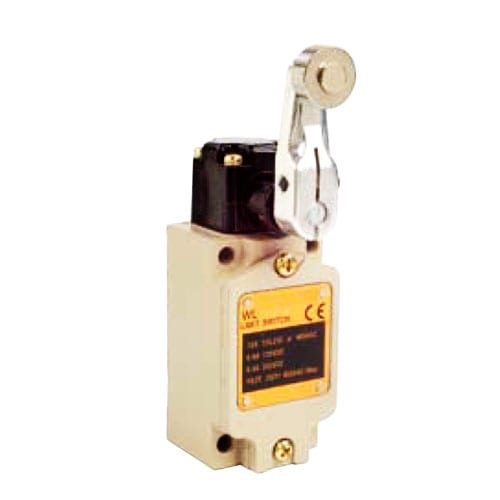

WL5104

High precision and metal die-casting body.
Easy to wire connection construction
High mechanical strength
Dust-proof construction
Rating: 10A, 125V or 250VAC

Additional information
Specifications

Function	Limit Switch
Rating	10A, 125V or 250VAC
Contact Resistance	25mΩ max. (initial)
Insulation Resistance	100MΩ min. (at 500VDC)
Dielectric Strength	1,000VAC,50/60Hz for 1 minute
Mechanical Operations	1,000,000
Electrical Operations	100,000
Product Series	Limit Switch: WL Series

WL Series Specification
Rating	10A, 125V or 250VAC
Contact resistance	25MΩ max. (initial)
Insulation resistance	100MΩ min. (at 500VDC)
Dielectric strength	1000VAC (50/60 Hz for 1 minute)
Service life mechanically	1,000,000 operations min.
Service life electrically	100,000 operations min.
