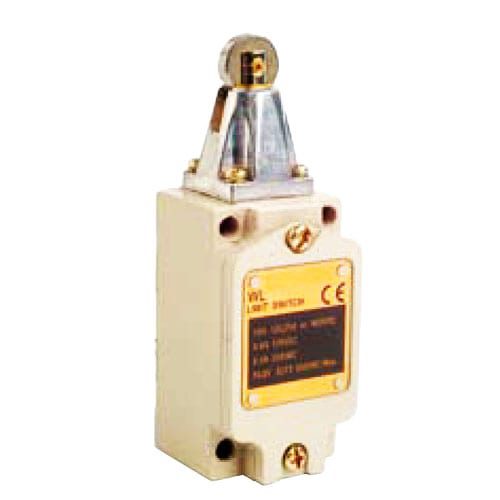

WL5102

  • High precision and metal die-casting body.
  • Easy to wire connection construction
  • High mechanical strength
  • Dust-proof construction
  • Rating: 10A, 125V or 250VAC

Function

Rating

10A, 125V or 250VAC

Contact Resistance

25mΩ max. (initial)

Insulation Resistance

100MΩ min. (at 500VDC)

Dielectric Strength

1,000VAC,50/60Hz for 1 minute

Electrical Operations

Mechanical Operations

Product Series

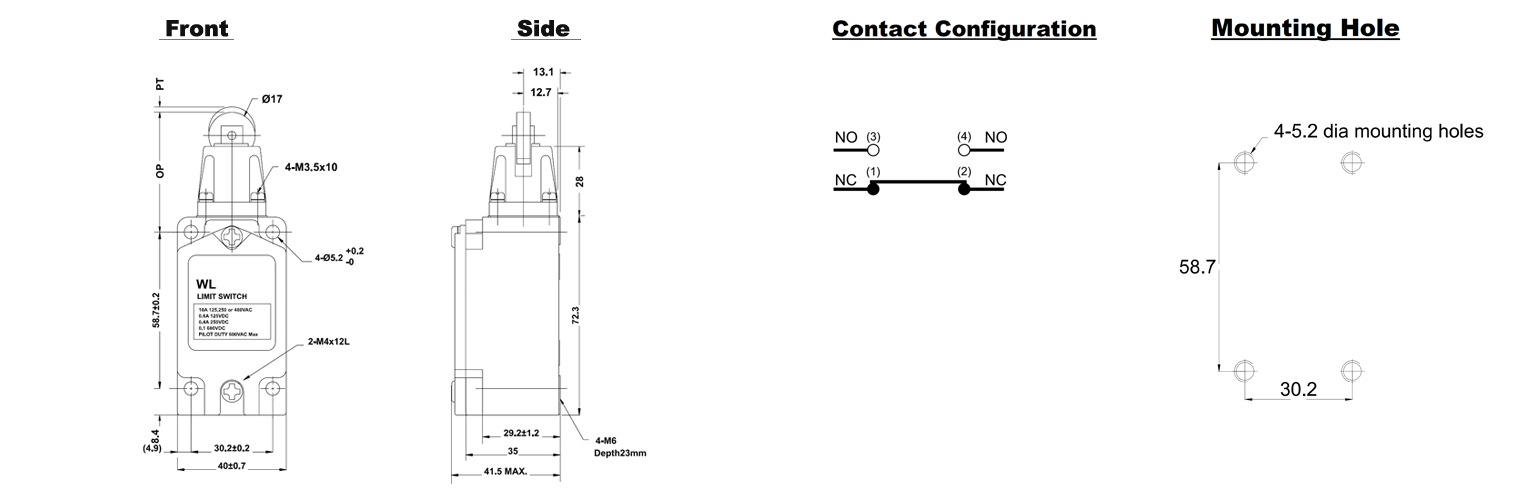

Drawing
Circuit

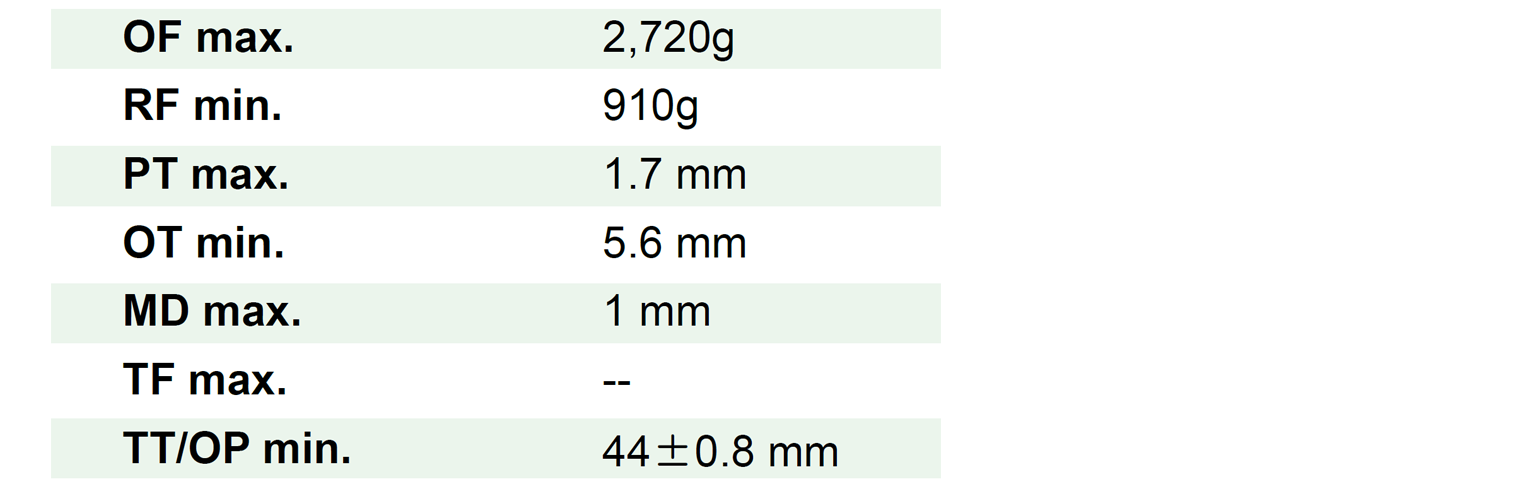

Mechanical & Electrical Specs
How to order
