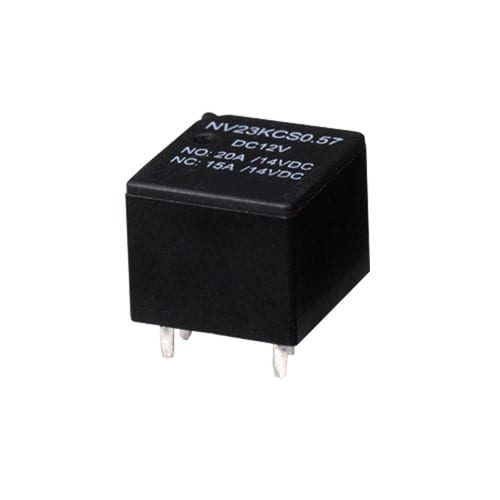

NV23K

• Relay

• Small size, lightweight (4g)
• Withstands high temperature, operating under 105°C ambient temperature.
• Heavy contact load switching current up to 30A.

Suitable for automotive and lamp accessories application.

Function

Electrical Operations

Mechanical Operations

Contact Rating

Resistive: 1A:30A,20A/14VDC
1 C:NO:30A,20A/14VDC; NC:25A, 15A/14VDC

Max. Switching Power

420W

Max. Switching Voltage

24VDC
Max. Switching Current:30A

Max. carrying current

NO:40A for 2 minutes,30A for 1 hour(12VDC at 20°C)
35A for 2 minutes,25A for 1 hour(12VDC at 85°C)

Contact Resistance or Voltage drop

􀀆 30mV (at 1 0A)

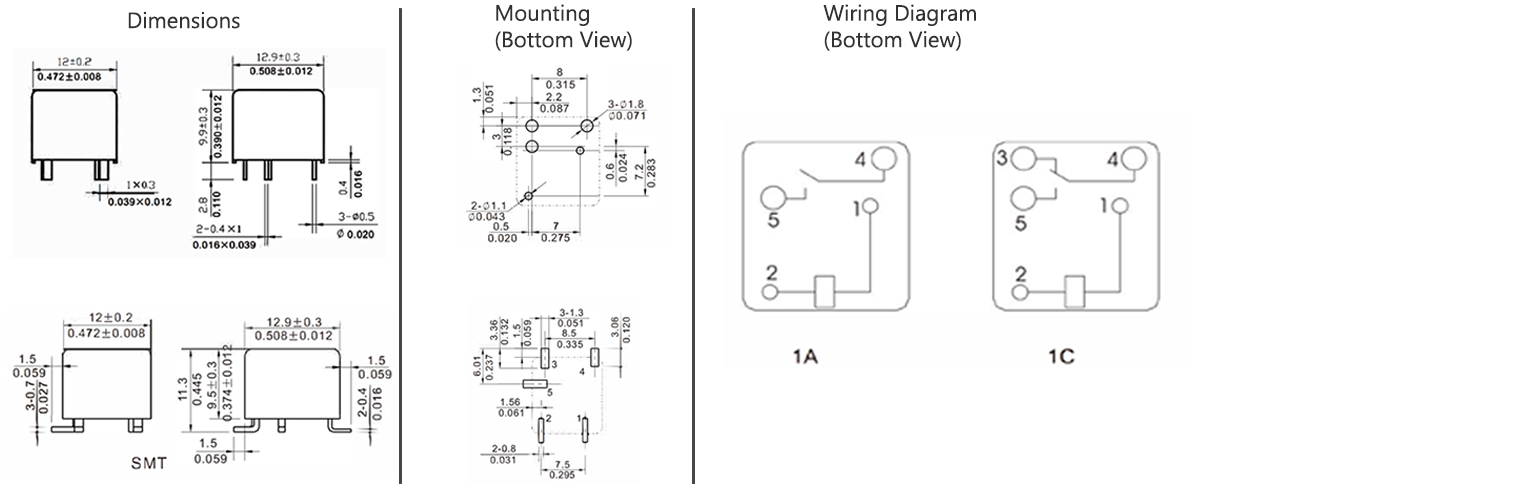

Sizing (mm)

12X 12.9X9.9

Insulation Resistance

1000M Q min (at 500VDC)

Dielectric Strength (Contacts | Coil)

Between contacts: 50Hz 500V
Between contact and coil: 50Hz 500V

Shock resistance

300m/s^2, 6ms

Vibration resistance

10Hz-500Hz double amplitude 60m/s^2

Terminals strength

10N

Solderability

235'C ±2'C 3s±0.5s

Ambient Temperature

-40°C-105°C

Relative Humidity

85% (at 20°C)

Weight

4g (Q type 9.5g)
