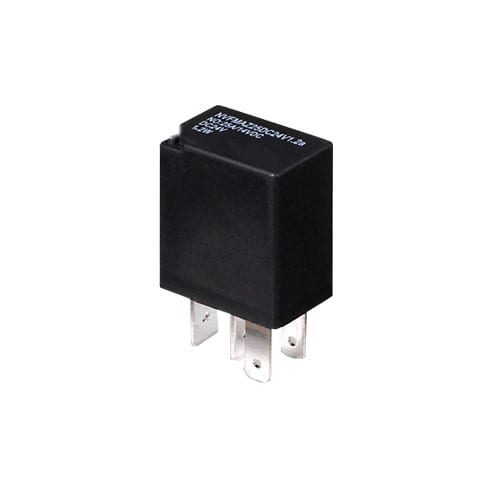

RJSASB

Relay

• Switching capacity up to 35A.
• PC board mounting and insert mounting available.

Application:

Function	Relay
Contact Arrangement	1A (SPSTNO) 1C (SPDT(B-M))
Contact Rating (resistive)	1A: 35A,25A/14VDC; 1C: 20A/14VDC,NO:30A/14VDC,NC:25A/14VDC
Max. Switching Power	350W
Max. Switching Voltage	75VDC Max. Switching Current:35A
Contact Resistance or Voltage drop	<50mΩ
Electrical Operations	100000 (10^5)
Mechanical Operations	10000000 (10^7)
Sizing (mm)	23 x 15.5 x 26
