Introducing the RJS-SDE-3

Product

QUICK LINKS: View the RJS-SDE-3

Introducing the newest addition to our RJS-SDE series, the RJS-SDE-3. This multipurpose programmable navigation module has the same great features as the RJS-SDE-2, but with CAN BUS compatibility and additional knob styles.

Key Features of the RJS-SDE Series

  • Module with a rotary encoder & push button
  • Fully programmable interface
  • 1.28″ full circle LCD display
  • 240RGB(H) x 240(V) resolution
  • Dimmable LED backlight
  • 360° rotary encoder
  • Ø 25mm panel cut out
  • IP65 rating

The RJS-SDE-3

CAN BUS

The RJS-SDE-3 features CAN BUS ISO 11898 compatibility, for reliable programming and communication within your systems.
RJS-SDE-3 programmable navigation switch, rotary encoder, push button switch, switch with illumination, LCD display, CAN BUS communication, LED switches, panel mount, momentary push button switch, RJS Electronics Ltd

New Design

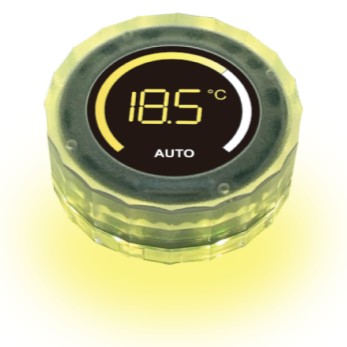

This new model also has an additional knob style of transparent plastic, that cane be illuminated with a variety of LED colours.

Knob Styles

RJS-SDE-3 programmable navigation switch, SDE-3-PL knob style, rotary encoder, push button switch, switch with illumination, LCD display, CAN BUS communication, LED switches, panel mount, momentary push button switch, RJS Electronics Ltd

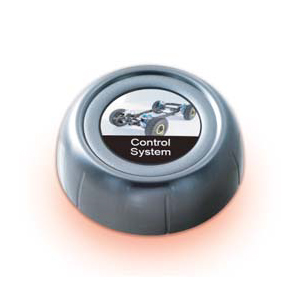

SDE-3-PL

Knob Type P / Silver / Plastic

RJS-SDE-3 programmable navigation switch, SDE-3-10 knob style, rotary encoder, push button switch, switch with illumination, LCD display, CAN BUS communication, LED switches, panel mount, momentary push button switch, RJS Electronics Ltd

SDE-3-10

Knob Type 1 / Silver / Aluminium

RJS-SDE-3 programmable navigation switch, SDE-3-2L knob style, rotary encoder, push button switch, switch with illumination, LCD display, CAN BUS communication, LED switches, panel mount, momentary push button switch, RJS Electronics Ltd

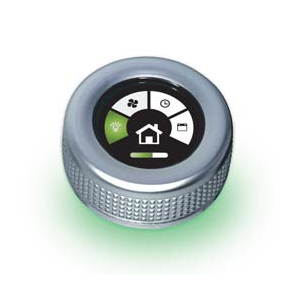

SDE-3-2L

Knob Type 2 / Silver / Plastic

RJS-SDE-3 programmable navigation switch, SDE-3-P5 knob style, rotary encoder, push button switch, switch with illumination, LCD display, CAN BUS communication, LED switches, panel mount, momentary push button switch, RJS Electronics Ltd

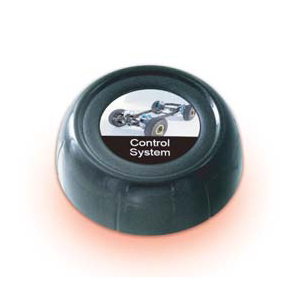

SDE-3-P5

Knob Type P / Black / Plastic

RJS-SDE-3 programmable navigation switch, SDE-3-15 knob style, rotary encoder, push button switch, switch with illumination, LCD display, CAN BUS communication, LED switches, panel mount, momentary push button switch, RJS Electronics Ltd

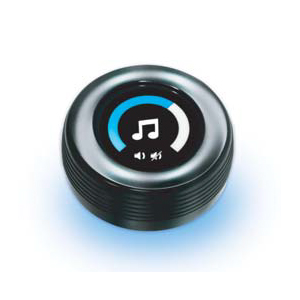

SDE-3-15

Knob Type 1 / Black / Aluminium

RJS-SDE-3 programmable navigation switch, SDE-3-25 knob style, rotary encoder, push button switch, switch with illumination, LCD display, CAN BUS communication, LED switches, panel mount, momentary push button switch, RJS Electronics Ltd

SDE-3-25

Knob Type 2 / Black / Plastic

RJS-SDE-3 programmable navigation switch, SDE-3-3T knob style, rotary encoder, push button switch, switch with illumination, LCD display, CAN BUS communication, LED switches, panel mount, momentary push button switch, RJS Electronics Ltd

SDE-3-3T

Knob Type 3 / Transparent / Plastic

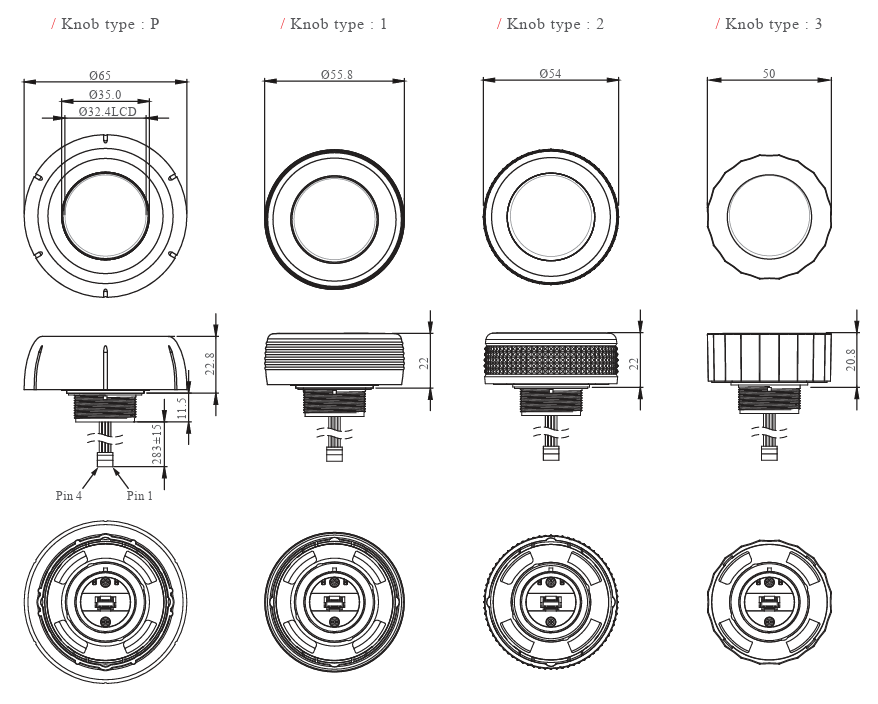

Drawings

Drawing of RJS-SDE-3 programmable navigation switch, rotary encoder, push button switch, switch with illumination, LCD display, CAN BUS communication, LED switches, panel mount, momentary push button switch, RJS Electronics Ltd

Applications

The RJS-SDE-3 is a great solution for many applications across industries. Some uses for these navigation modules include: automotive controls, smart home systems, domestic and commercial appliances, audio visual systems and industrial controls.

Summary

The RJS-SDE-3 is a high-quality, flexible switch that enables you to reduce the amount of switches on a panel/device, by providing multifunctional and multipurpose operation. It is an ideal choice if you are looking for an aesthetically pleasing component with reliable programming capability. Speak to our Sales Engineers today to find out more about the RJS-SDE-3 or any of our other components.
