We're excited to introduce the RJS-SBA, our new LED Ring-Type Indicator.
This small PCB mount indicator can be used on its own, or mounted around an Encoder to control the LED display.
The RJS-SBA supports single LED illumination or 24 colour RGB + IC LED, and has the added benefits of being highly efficient, long-lasting and shock-resistant.
Illumination Details

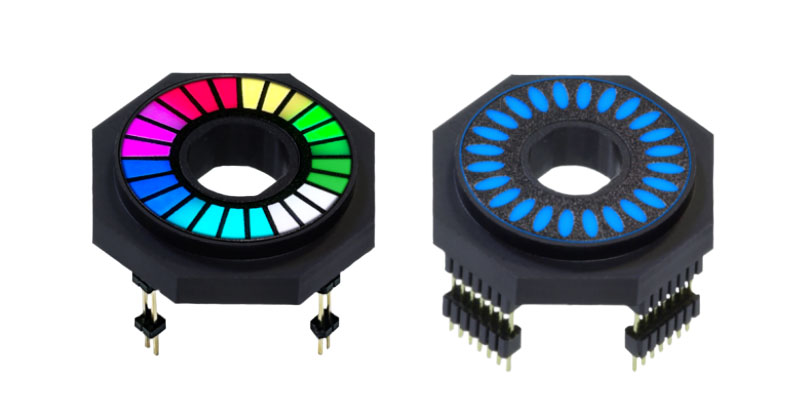

RGB LED illumination
This style can support up to 24 colours and is illuminated with a programmable WS2812B 5V RGB LED. You can choose from distinct (segmented) or diffusion (gradual) illumination, and wiring for these options can be connected in series to reduce wiring.
Single LED illumination
The LED colour options are:
- Red
- Yellow
- Green
- Pure Green
- Blue

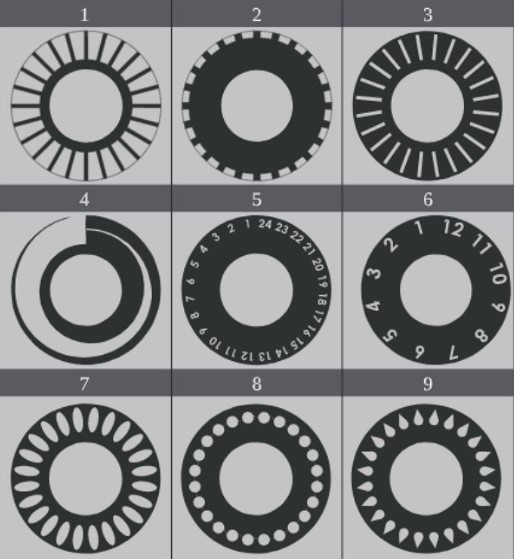

Marking Styles
Drawings

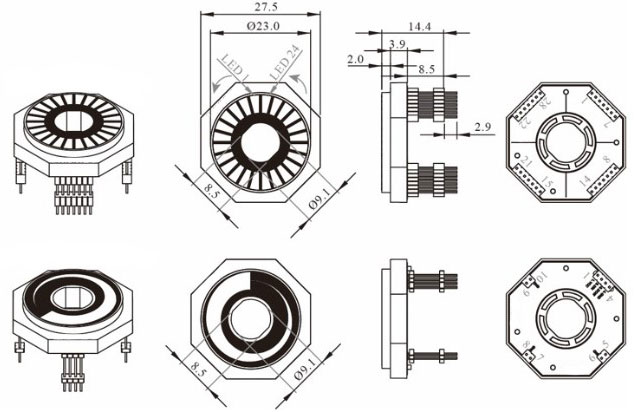

Drawings of Type 1 (segmented lighting) and Type 4 (gradual lighting)

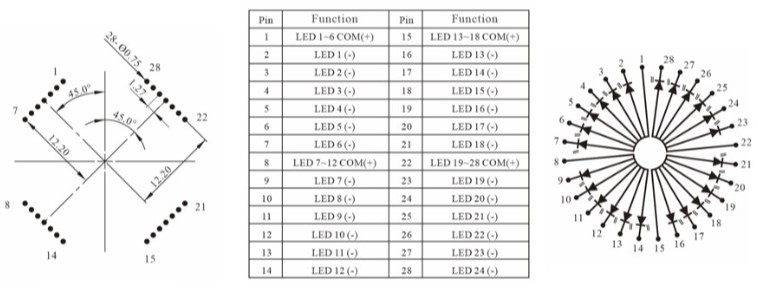

PCB Layout & Circuit Diagram for Single LED Version

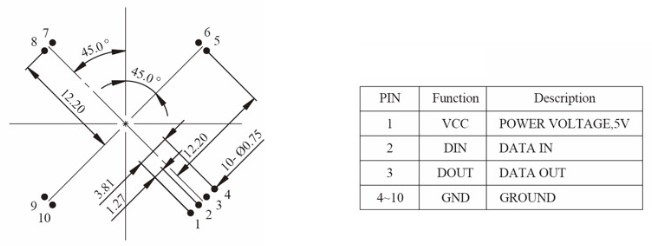

PCB Layout & Circuit Diagram for RGB + IC LED Version
Using the RJS-SBA with an Encoder
Summary
These indicators can be purchased on their own, or (as demonstrated in the video above) you can order our Encoders to mount in the centre for direct control of the display.
The RJS-SBA is a versatile, high-quality indicator, so however you decide to use it, it is sure to add a unique, smart finish to your project. To find out more about this indicator or any of our other products, speak to our experienced Sales Engineers today.
