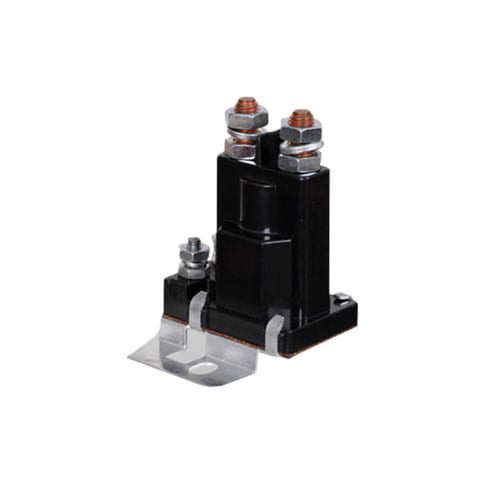

NJ120

• Relay
• Water resistant.
• Capable of handing low and high current requirements.
• Versatile mounting and termination.

Function	Relay
Mechanical Operations	100000 (1 x 10^5)
Contact Arrangement:	1A (SPNO)
Dielectric Strength	500V
Temperature Range	Intermittent: -20 F–150 F (-28.9'C-65.6'C) Continuous: -20 F–120 F (-28.9'C-48.9'C)
Duty Cycle	Continuous; Intermittent 30s "on" maximum and minimum6 minutes "off"
Hardware Torque Specification	Contact Terminal: (44-55) inch-lbs Coil Terminal : (12-18) inch
Mass	170.5g
Sizing (inches)	2.875" X 2.125" X 3.253"
