Introducing the RJS-SLD, our versatile new programmable navigation switch with a rotary encoder, push button and digital LED display, making it suitable for a wide range of applications.
This multifunctional switch features a 36 pulse (360°) encoder with a transmissive optical sensor and tactile feedback. It has a 25mm panel cut-out, an IP65 rating and a white LED backlight for its 3-digit display.
DIGITAL DISPLAY
White 3-digit display with an LED backlight
IP RATED
IP65 rated (from the front) to protect against dust and water
360° ROTATION
Encoder features 36 pulse/360° rotation
CUSTOM MARKINGS
Add your custom markings to the central push button
Knob Styles

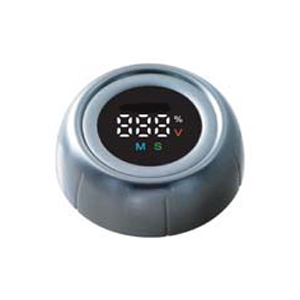

SLD-PL
Knob Type P / Silver / Plastic

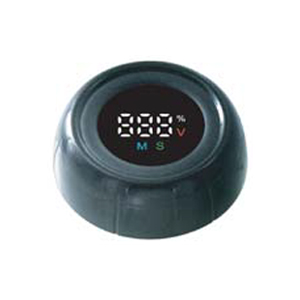

SLD-P5
Knob Type P / Black / Plastic

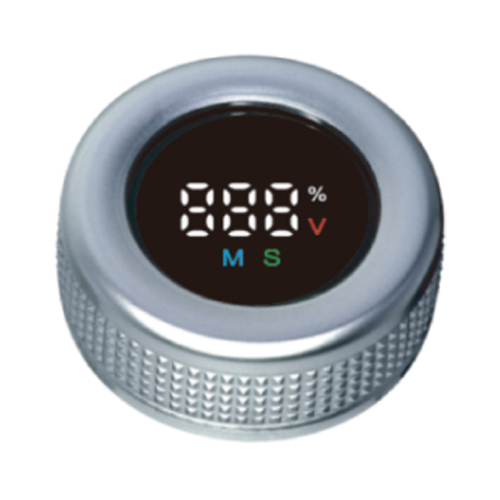

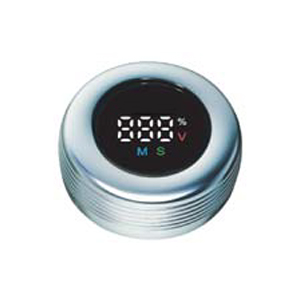

SLD-10
Knob Type 1 / Silver / Aluminium

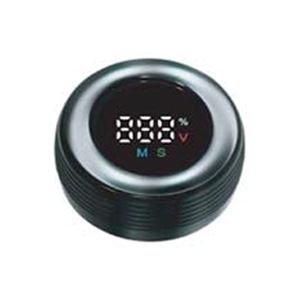

SLD-15
Knob Type 1 / Black / Aluminium

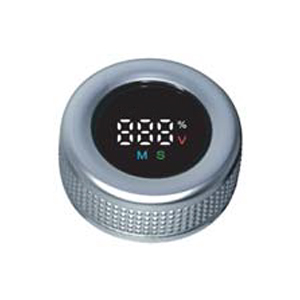

SLD-2L
Knob Type 2 / Silver / Plastic

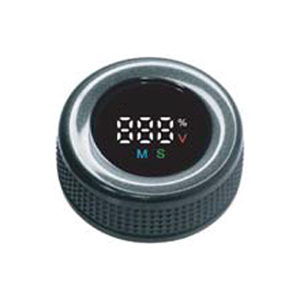

SLD-25
Knob Type 2 / Black / Plastic
The Technical Bit
| Power Supply | 5V |
| Output Signal | HI/LO |
| Revolution | 36 step per revolution |
| Operating Life | 100,000 cycles min. |
| Operating Force | 800 ± 300gf |
| Total Travel | 0.3 ± 0.15mm |
| Insulation Resistance | 100M Ohm Min. |
| Dielectric strength | 250V AC/Min |
| Operation Temperature | -20°C~ 80°C |

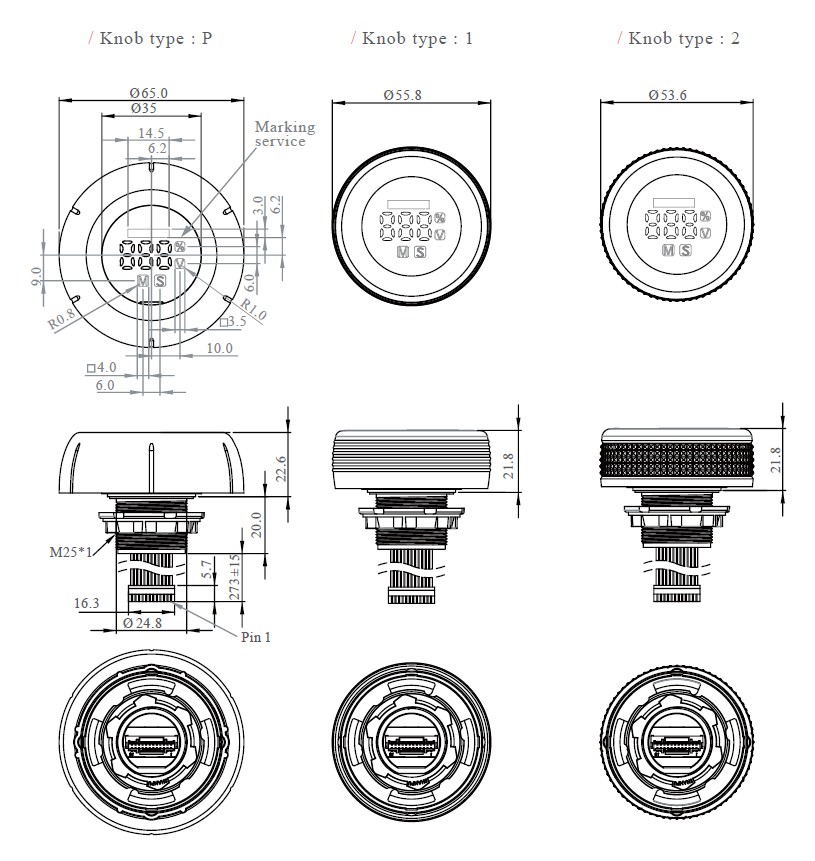

Drawings

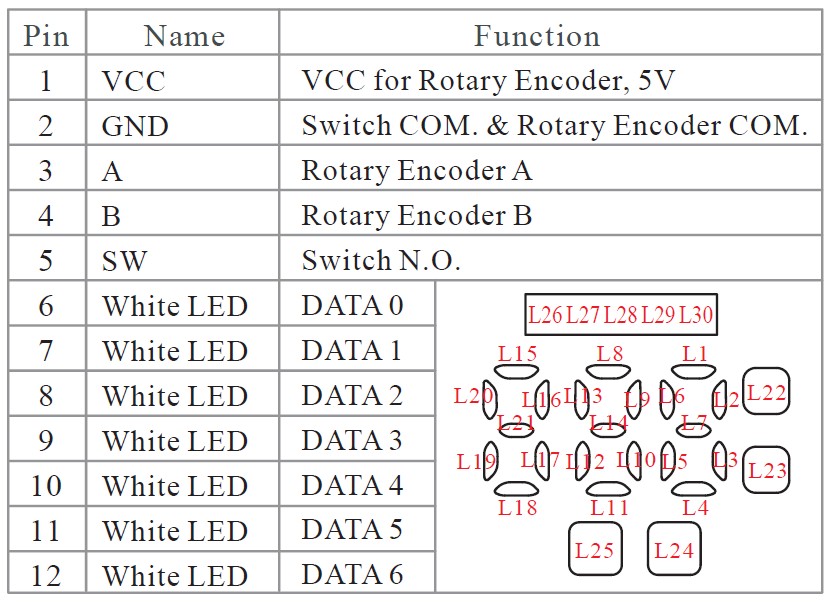

Pin Function

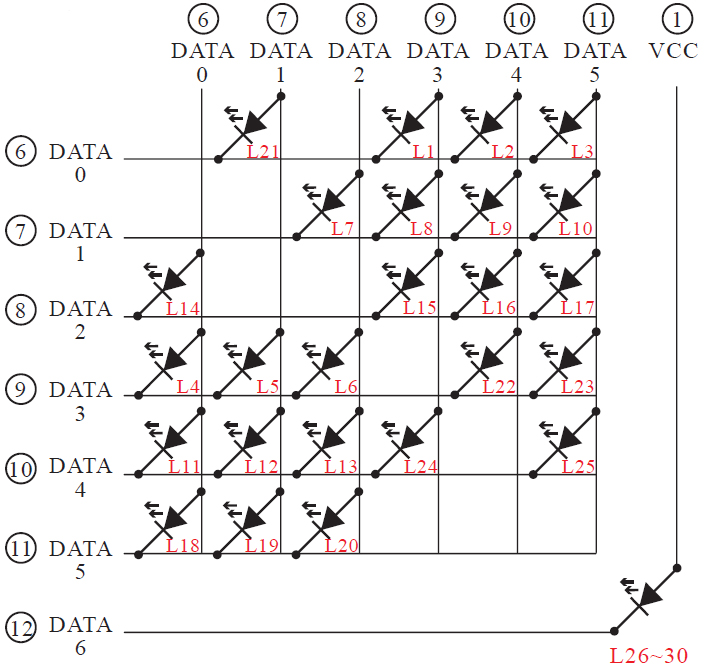

LED Circuit
Applications
The RJS-SLD is suitable for a wide range of applications across industries. Use it in cars to control internal systems like music volume or fans, or for climate control in your house or workplace. The SLD is also great for appliances like coffee machines and washing machines, as well as for industrial and medical equipment.
Summary
In summary, the RJS-SLD is a stylish, stand-out new rotary switch that provides reliable, long-lasting performance with its high quality, multifunctional design. If you are interested in purchasing this switch for your next project, you can speak to our experienced Sales Engineers by emailing [email protected], calling +44 (0) 1234 213600 or filling out our handy contact form.
