What is a Toggle Switch?
A toggle switch is a type of electromechanical component that features a lever or ‘toggle’ that is pushed to turn a circuit/system on and off. These switches are simple to operate and with a range of contact configuration options (SPST to 4PDT) they are suitable for a wide variety of applications.
Toggle switches are available in different orientations (horizontal, vertical, right-angle) and can range in sizes from standard to miniature, sub-miniature and ultra-miniature.
Some applications for Toggle Switches include:

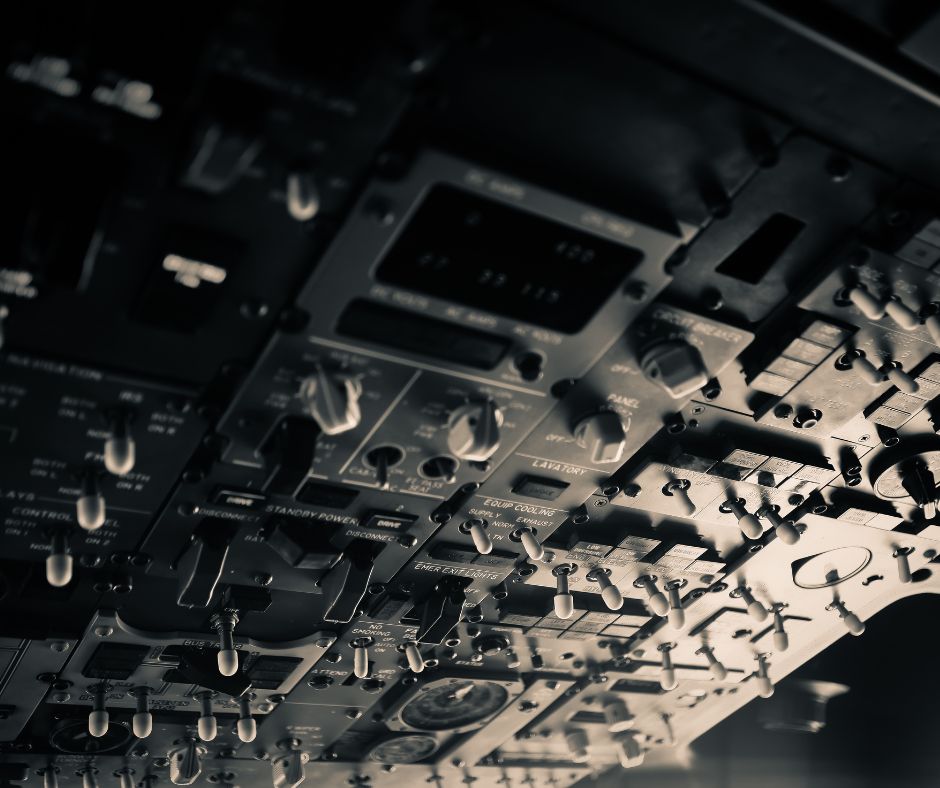

Controls for vehicles such as boats and aircraft
Audio devices such as amplifiers and guitar pedals
Industrial equipment like conveyor belts and packaging machines
Lighting systems in residential and commercial buildings
On/off switches in a variety of domestic and commercial appliances
What is a Rocker Switch?
A rocker switch is one of the most commonly seen types of electromechanical components due to their ease of use. These switches feature a see-saw mechanism that ‘rocks’ between two or three positions to control a circuit.
Rocker switches can be found in a variety of styles, with different shapes, sizes, contact configurations (SPST – 4PDT) and LED illumination options available. It is also easy to add custom text or symbols to rocker switches if required.
Some applications for Rocker Switches include:
Car controls such as electric windows and defoggers
Boat controls such as bilge pumps and navigation lights
Medical equipment such as diagnostic machinery and ventilators
Military equipment such as comms systems and drone controls
On/off switches in a variety of domestic and commercial appliances
New Products at RJS Electronics

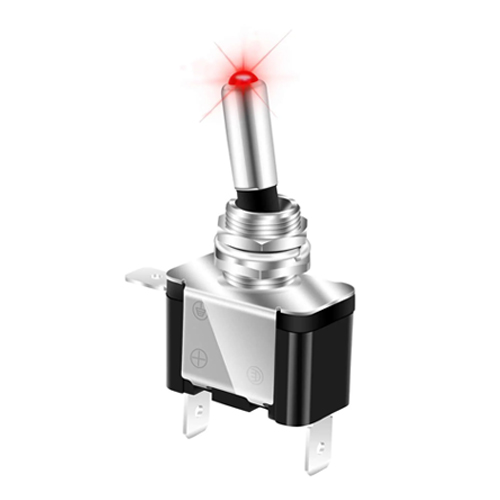

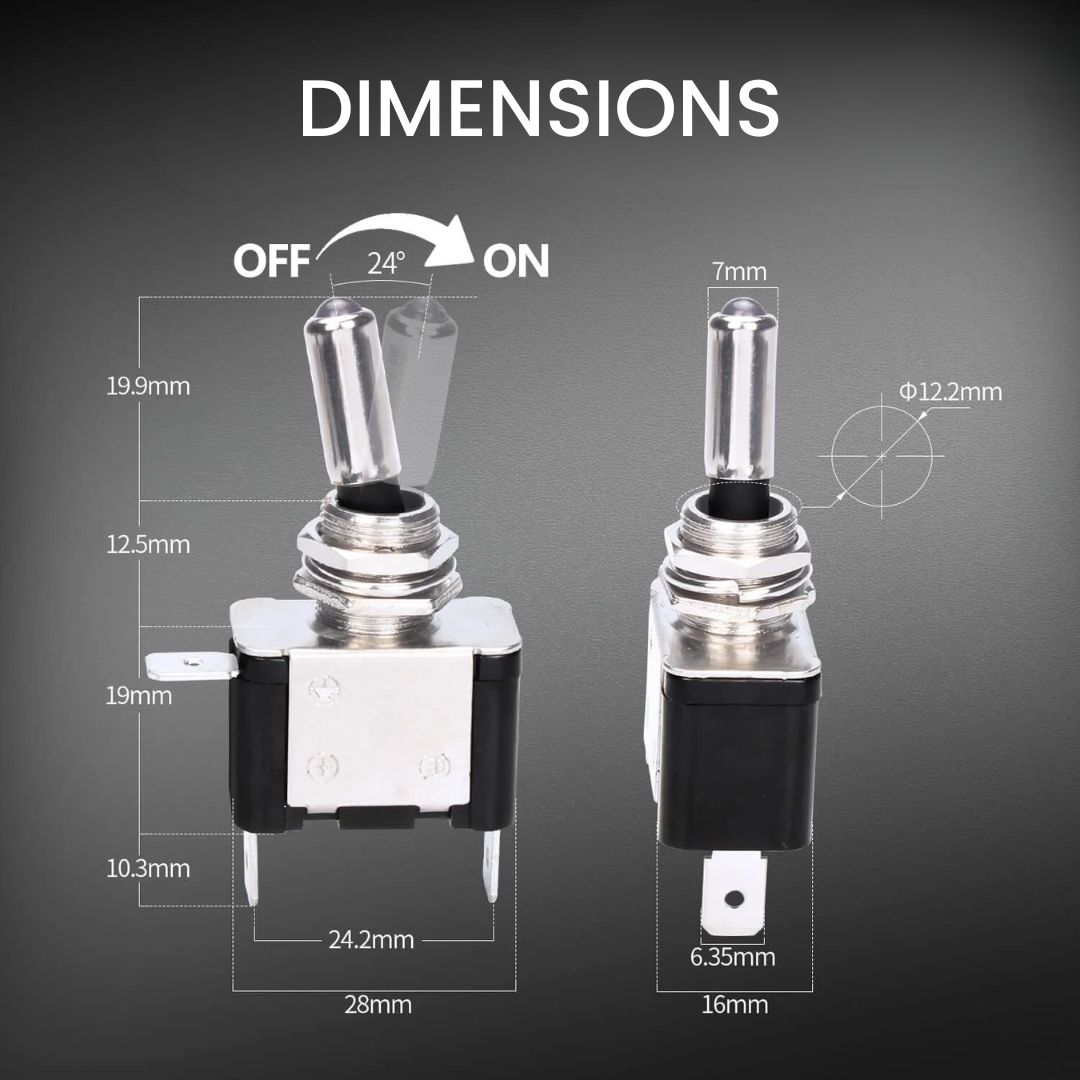

LED Illuminated Toggle Switch
RJS-ASW1-DPST-101-X
This toggle switch features a metal actuator that is topped with an LED, which gives a clear indication of when the switch is on. It is particularly suited for use in the controls of marine, automotive and aerospace vehicles due to its hard-wearing design.
Key Features:
12.2mm panel cut-out
Red, green, yellow or blue LED illumination
Two-position, on-off operation
Latching function
SPST configuration
IP40 rating
Flame-retardant body
20A 12V DC rating

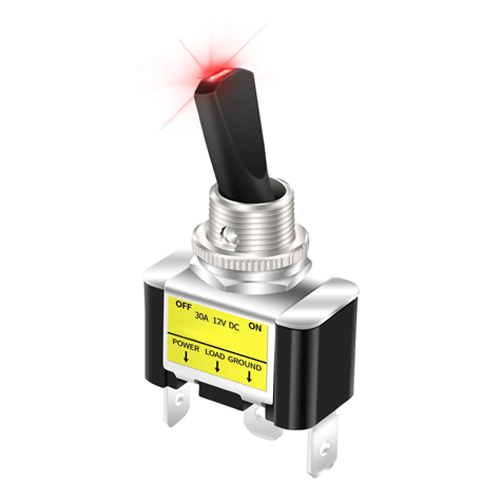

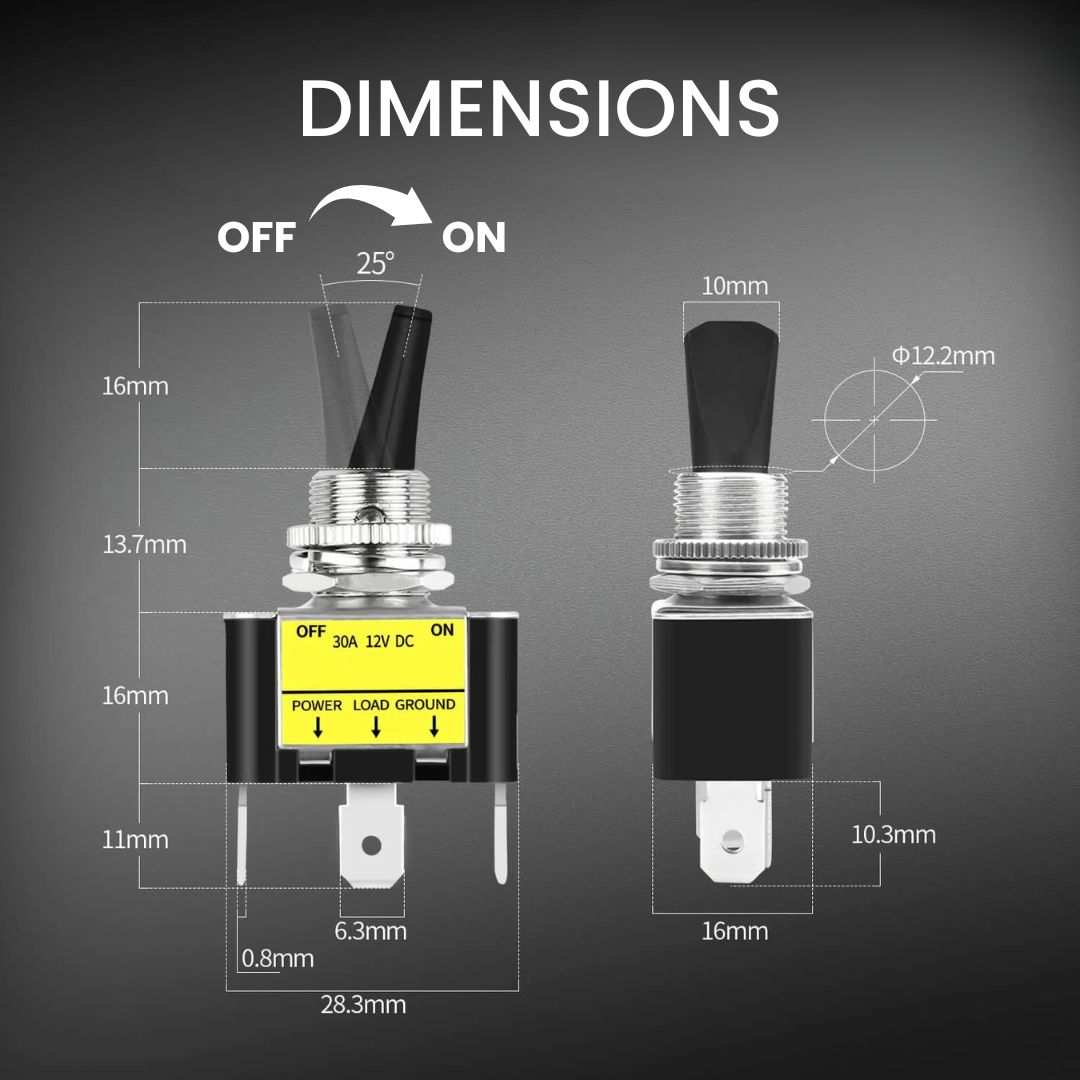

LED Illuminated Paddle Switch
RJS-006-TOG-X-12V
This heavy-duty paddle switch has a plastic actuator that is also topped with an LED, which lights up when the switch is on. Similarly to the toggle, this switch is well-suited to a range of marine and automotive applications, as its 30A rating means that it can handle a higher current.
Key Features:
12.2mm panel cut-out
Red, green, yellow or blue LED illumination
Two-position, on-off operation
Latching function
SPST configuration
IP40 rating
Flame-retardant body
30A 12V DC rating

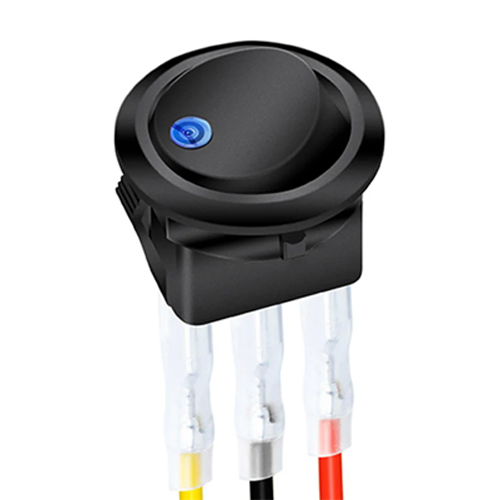

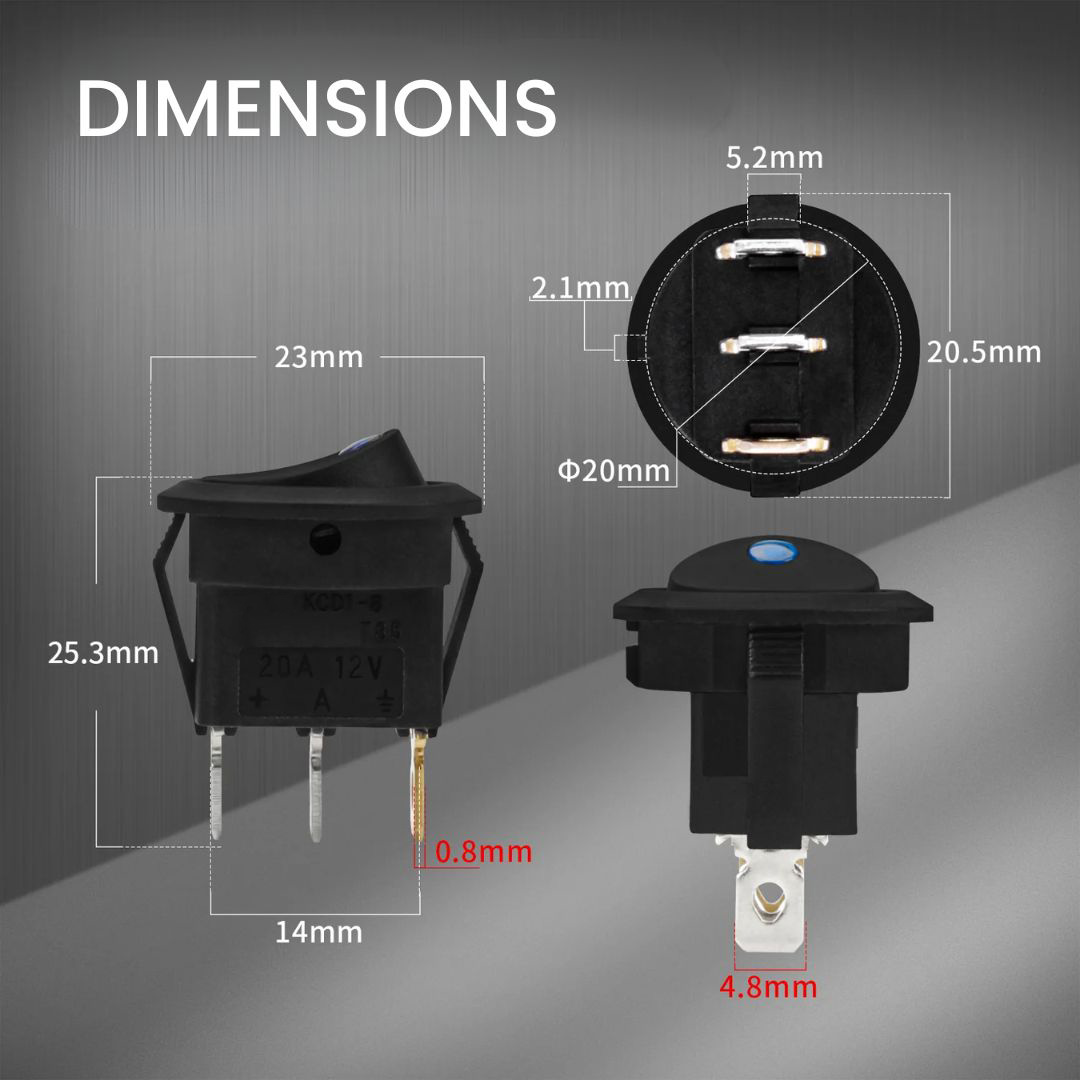

LED Illuminated Rocker Switch
RJS20RCK-SPST-DOT-X-24V
This round rocker switch features an on/off function and a dot LED which illuminates when the switch is in operation. The ease of operation and clear status indicator of this switch make it ideal for a wide range of applications, including automotive controls, household appliances, computer peripherals (i.e. routers and modems) and medical instrumentation.
Key Features:
20mm panel cut-out
Red, blue or green dot LED illumination
Two-position, on-off operation
Latching function
SPST configuration
Snap-in mounting
Flame-retardant body
Up to 20A 12V DC rating

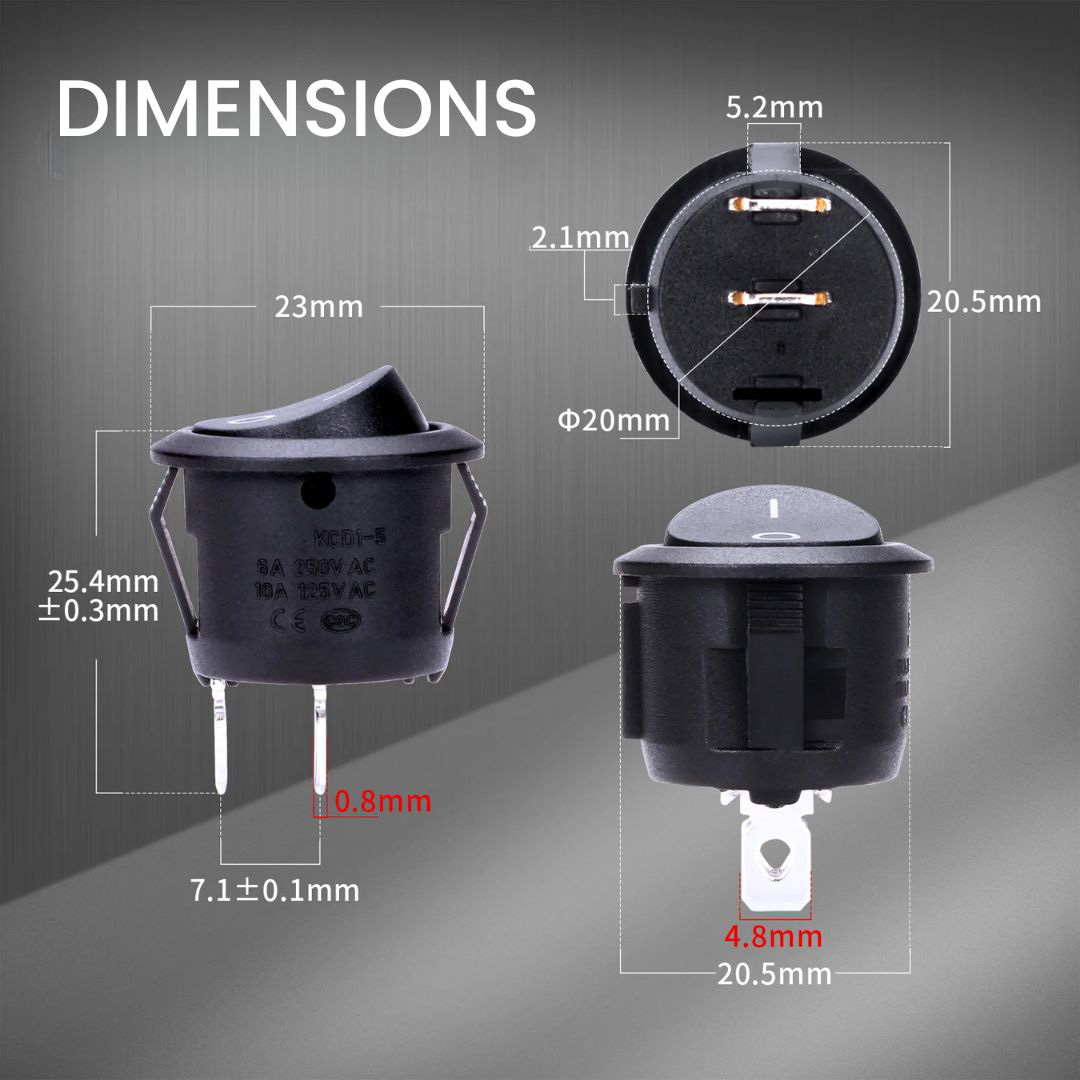

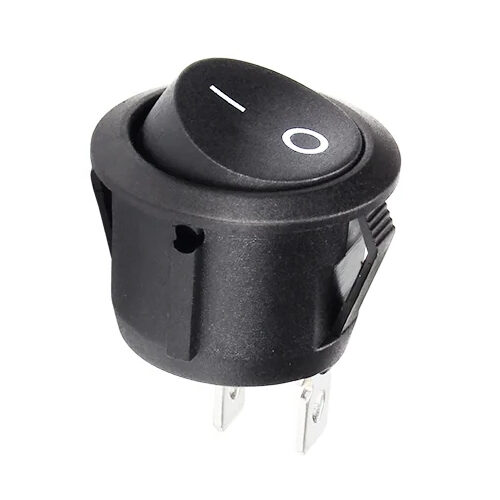

Non-Illuminated Rocker Switch
RJS20RCK-SPST-ONOFF
This round rocker switch features clear markings to indicate when it is in operation: when the ‘O’ side is down, it is off and when the ‘I’ side is down, it is on. The simple design and versatility of this switch makes it suitable for a large array of applications, including automotive and marine, as well as commercial and domestic devices.
Key Features:
20mm panel cut-out
Non-illuminated
‘O’ and ‘I’ markings
Two-position, on-off operation
Latching function
SPST configuration
Snap-in mounting
Up to 20A 12V DC rating

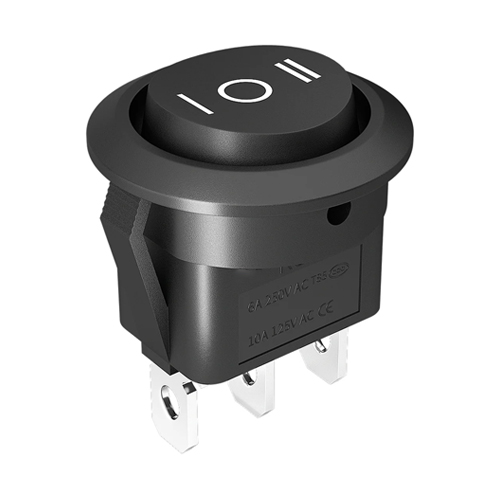

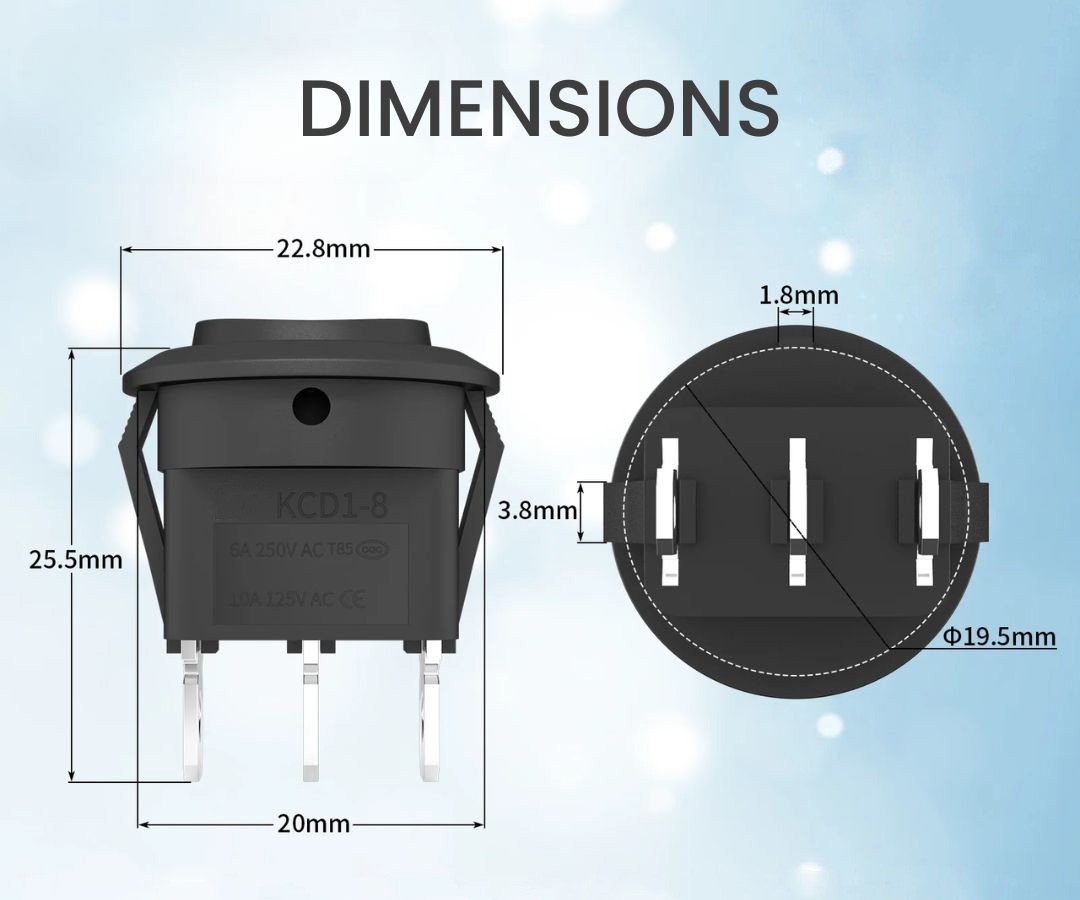

Three-Position Rocker Switch
RJS20RCK-SPDT-101
This non-illuminated round rocker switch features a three-position function with clear markings. With its SPDT configuration, you can easily switch between two circuits and select between different modes within your device. For example, it could be used to switch between manual and automatic modes on a machine, or to change intensity levels of lights/fans etc.
Key Features:
20mm panel cut-out
Non-illuminated
‘I’ ‘O’ ‘II’ markings
Three-position, on-off-on operation
Latching function
SPDT configuration
Snap-in mounting
Up to 20A 12V DC rating
We are so excited to be able to offer more toggle and rocker options to you, our customers. If you want more information on these new switches – or any of our other products – you can get in touch with our Sales team today.
