IP Rating | |
---|---|
Configuration | 1NC (SPST) [push to break], 1NO (SPST) [push to make], 1NO1NC (SPCO) [change over], 2NC (DPST) [push to break], 2NO (DPST) [push to make], 2NO2NC (DPCO) [change over] |
Terminal Options | |
Illumination | |
Cap / Actuator Shape | |
Function | |
Panel Cut-Out Diameter | |
# NC Contacts | |
# NO Contacts |

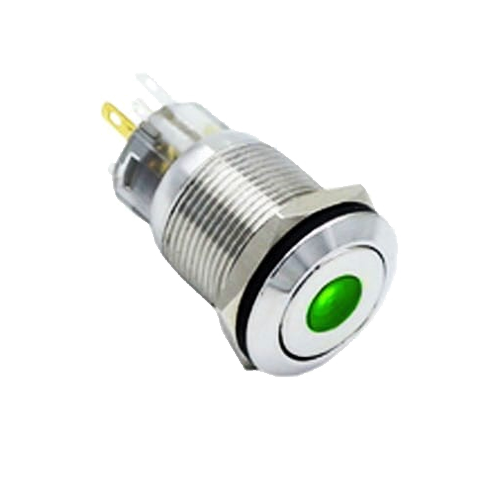

19mm antivandal switch with dot LED illumination.
Key Features:
- Ø 19mm Panel cut out
- Momentary
- Dot illumination
- Single/Bi-colour/RGB LED options.
- IP67 rated (from the front)
- SPST / DPST
Applications
- Automotive
- Boat building & Marine
- Security
- Door entry
- Medical
SKU: 15067
Categories: 19mm, Illuminated Anti-Vandal Switches, Illuminated Switches, Metal Pushbutton Switches, Panel Mount Illuminated Switches
Tag: RGB
