RJS102/202 PUSH BUTTON SWITCH, ANTI VANDAL SWITCH, IP rated, push button, metal switch,

RJS(12)02-16L(A)-H-D-(G)-(BSBLK)-(XV)-67Q

RJS102-16L-H-R~67Q

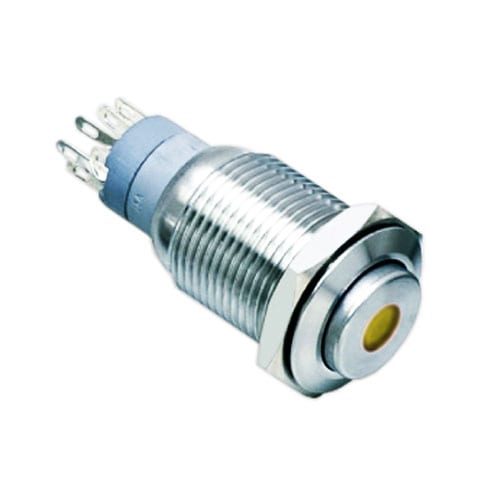

Ø16mm Anti Vandal Switch with High Head Dot LED Illumination

Key Features:

Ø16mm Panel cut out
Momentary / Latching
Ring LED illuminated
IP67 rated (from the front)
SPCO / DPCO

Applications:

Automotive
Boat building & Marine
Security
Door entry
Medical

Additional information

Product Series	RJS102
Function	Momentary Switch
IP Rating	IP67 (front)
Configuration	1NO1NC (SPCO) [change over], 2NO2NC (DPCO) [change over]
Terminal Options	Solder Lug Terminals
Illumination	Dot
Cap / Actuator Shape	High Head (Raised), Round
Panel Cut-Out Diameter	Ø 16mm
# NC Contacts	1, 2
# NO Contacts	1, 2
