IP Rating | |
---|---|
Configuration | |
Terminal Options | |
Illumination | |
Cap / Actuator Shape | |
Panel Cut-Out Diameter | |
Function |
19mm antivandal switch with ring LED illumination.
Key Features:
- Ø 19mm Panel cut out
- Momentary / Latching
- Ring LED illumination
- Single/ Bi-colour LED options
- IP67 rated (from the front)
- SPDT
- 3V-24V DC LED
Applications
- Automotive
- Boatbuilding & Marine
- Security
- Door entry
- Medical

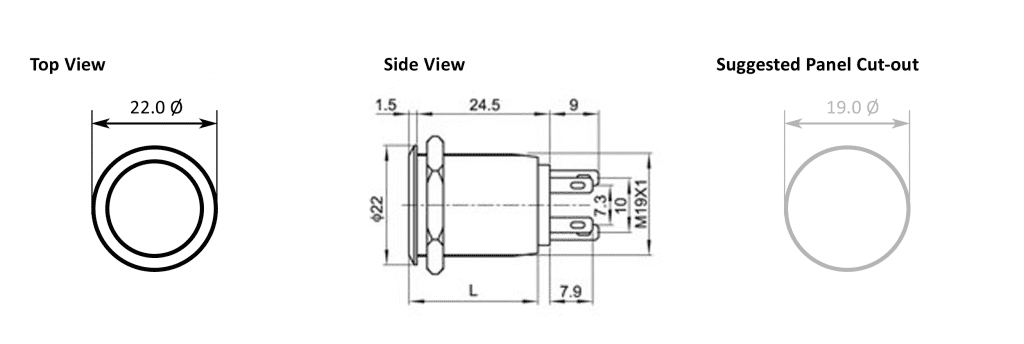

Drawing
