| IP Rating | |
|---|---|
| Configuration | |
| Terminal Options | |
| Illumination | |
| Cap / Actuator Shape | |
| Panel Cut-Out Diameter | |
| Function |
19mm antivandal switch with dot LED illumination.
Key Features:
- Ø 19mm Panel cut out
- Momentary / Latching
- Dot LED illumination
- Single/ Bi-colour LED options
- IP67 rated (from the front)
- SPDT
- 3V-24V DC LED
Applications
- Automotive
- Boat building & Marine
- Security
- Door entry
- Medical

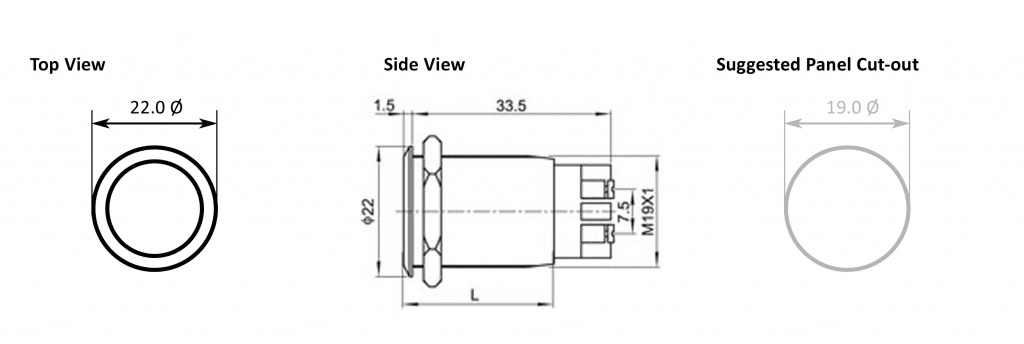

Drawing
