| Product Series | |
|---|---|
| Function | Infrared Switch, Time Delay Switch, Touchless Exit Switch, Proximity Switch, Momentary Switch |
| Dimensions | 86*86*25mm |
| Product Material Options | |
| Current | DC12~24V 500mA |
| Configuration | |
| Operating Temperature | 10‐55℃ (14-131F) |
| Operating Humidity | 0-95% (non-condensing) |
| Electrical Operations | |
| IP Rating |

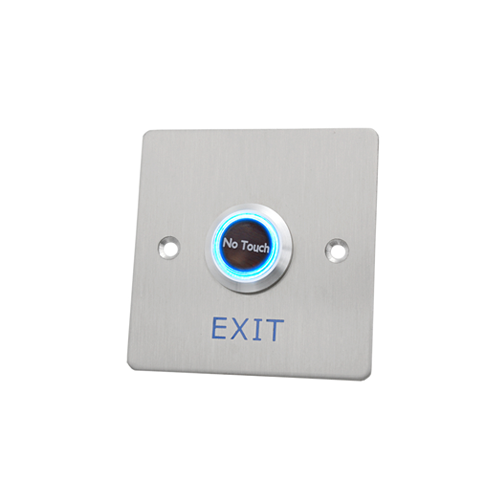

Touchless, infrared switch with a panel.
- Infrared Switch
- Illuminated Touchless exit switch with Plate 86*86*25mm
- Momentary OR Adjustable Delay Version
- Supplied with 1.7mm Stainless steel (S) or 4mm Aluminium (A) plate
- Standard sensing distance 0-10cm
- “Sensitive” sensing distance 3-15cm
| RJS-TLSW-0 | Switch Only Version Click Here |
| RJS-TL5-S/A | Momentary Version |
| RJS-TL5D-S/A | Momentary Version “Sensitive Distance” |
| RJS-TL5T-S/A | Adjustable Time Delay Version |
Applications:
- Door Entry and Security
- Medical Environments
- Industrial Controls
- Retail Spaces

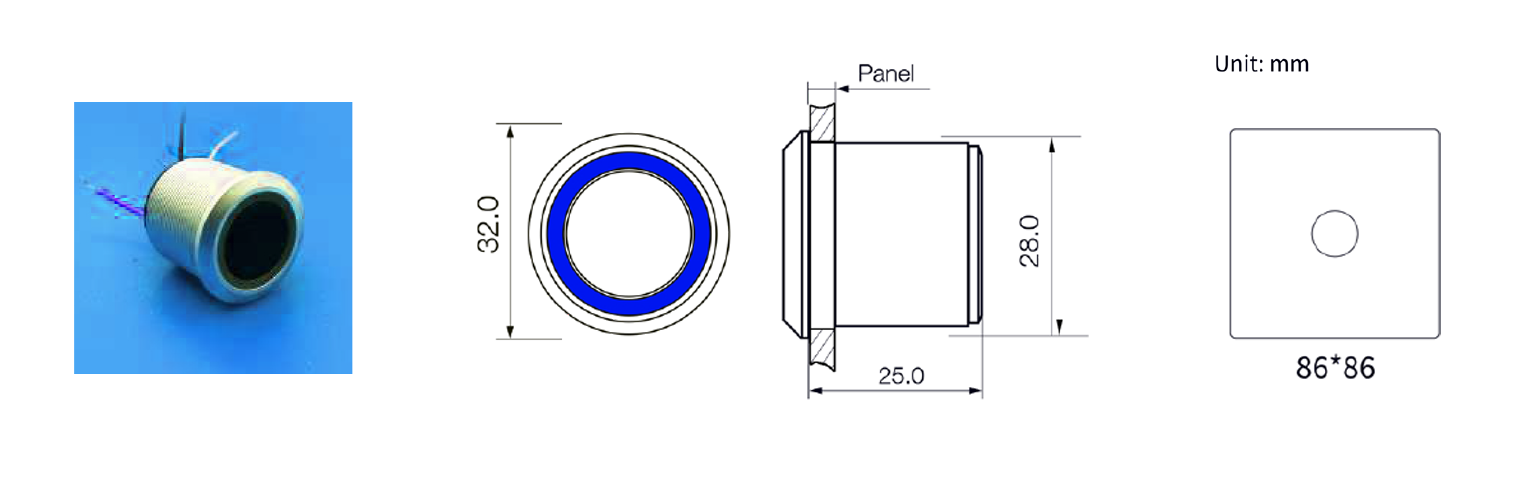

Drawing
Mechanical & Electrical Specs
