NG8N

• Relay

• Small size, lightweight (4.1g).
• Low coil consumption.
• Switching capacity up to 25A motor lock load.
• High performance PCB relay.
• Suitable for household electrical appliance, automation system.

Function

Contact Arrangement

1C (SPDT(B-M))

Contact Current

25Amotor lock (14VDC)

Max. Switching Power

480W

Max. Switching Voltage

16VDC
Max. Switching Current:30A

Contact Resistance or Voltage drop

< 250mV (at 10A)

Electrical Operations

Mechanical Operations

Sizing (mm)

14.3X7.5

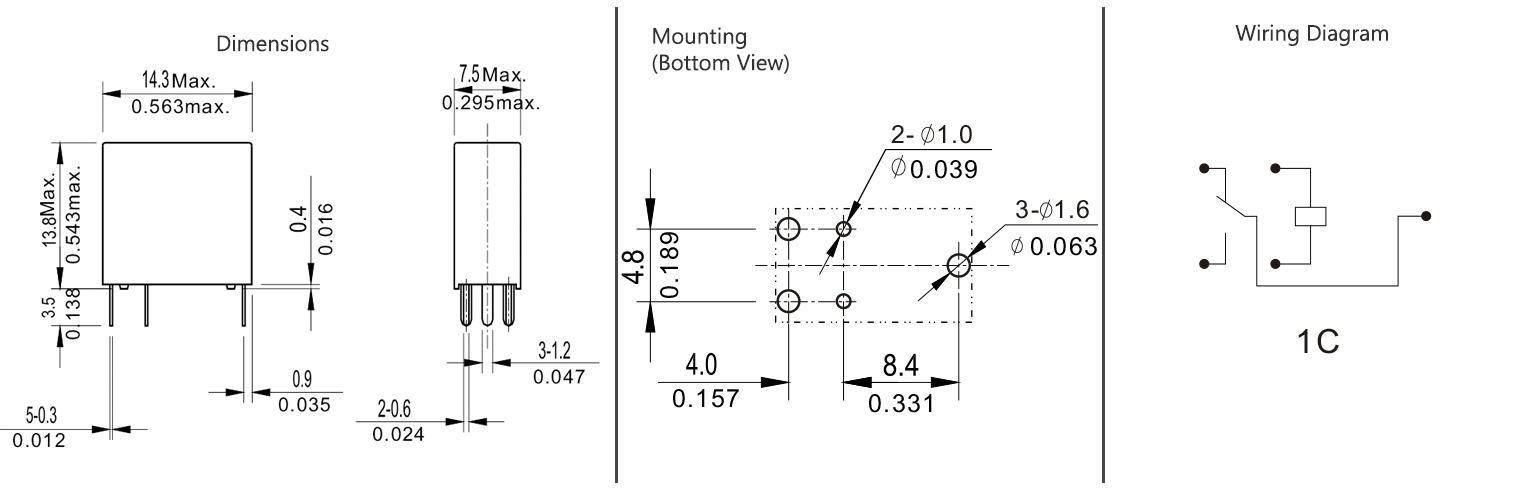

Drawing
