RJSASB

• Relay RJSASB

• Switching capacity up to 25A.
• PC board mounting and insert mounting available.
• Suitable for automation system and automotive auxiliary etc.
Function

Contact Arrangement

1A (SPSTNO)
1C (SPDT(B-M))

Contact Rating (resistive)

1A: 35A,25A/14VDC; 1C: 20A/14VDC,NO:30A/14VDC,NC:25A/14VDC

Max. Switching Power

350W

Max. Switching Voltage

75VDC
Max. Switching Current:35A

Contact Resistance or Voltage drop

<50mΩ

Electrical Operations

Mechanical Operations

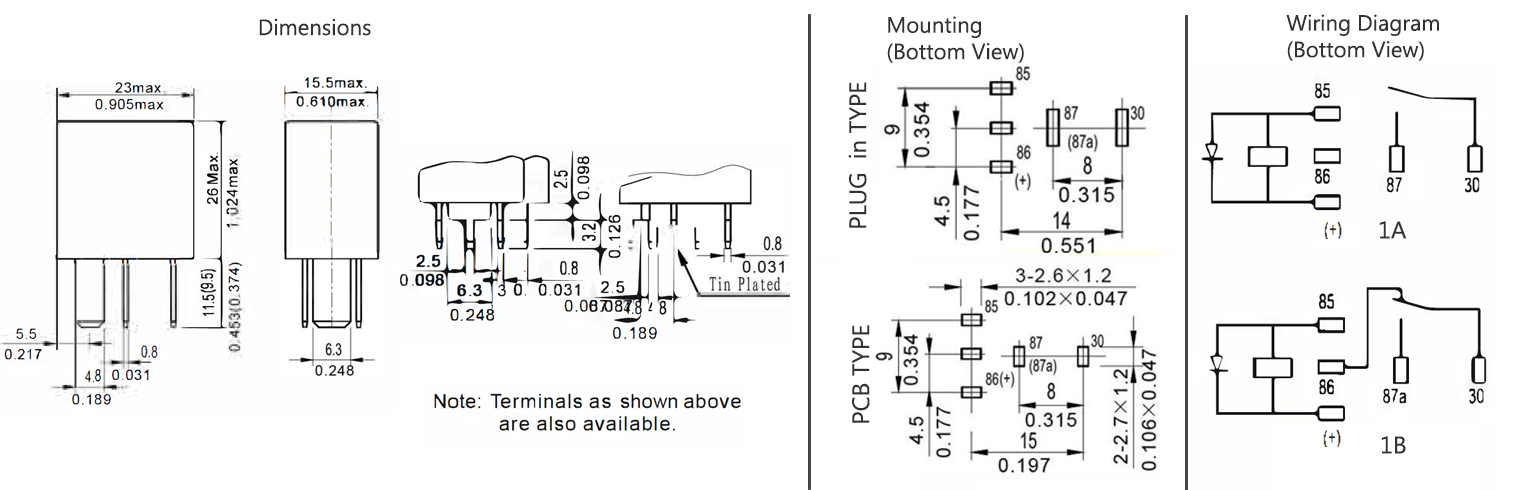

Sizing (mm)

23 x 15.5 x 26

Circuit
