4120(JQC-4)

• Relay

• Small size, heavy contact load, capable of standing strong current of 45A at 14VDC.
• PC board mounting.
• Suitable for automatic control facilities and automobile application etc.
• Both European 11 mm pole distance and American 8mm pole distance available.

Function

Contact Arrangement

1A (SPSTNO) 18 (SPSTNC) 1C (SPDT(B-M))

Contact Rating (resistive)

1A: 45A/14VDC; 1 B:30A/14VDC;
1C:30N120VAC, 14VDC, 15N28VDC;NO:40A/14VDC;NC:30A/14VDC;

Max. Switching Power

630W 3600VA

Max. Switching Voltage

75VDC 380VAC
Max. Switching Current:45A

Contact Resistance or Voltage drop

<30mQ

Electrical Operations

Mechanical Operations

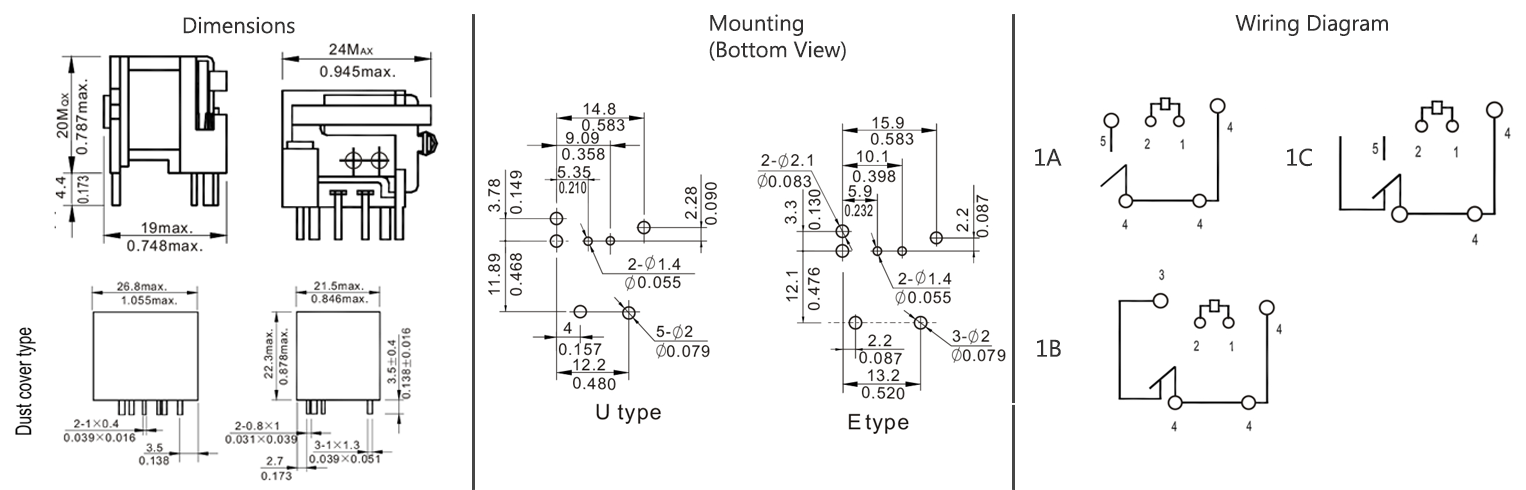

Sizing (mm)

Dust Covered 26.8 X 21.5 X 22.3
Open Type 24 X 19 X 20
