4117-2

• Relay

• Twin structure of 4117 type.
• Small size, lightweight.
• Low coil power consumption.
• PC board mounting.
• Suitable for household appliances, electrical equipment, automation system, and automotive industry application.

Function

Contact Rating (resistive)

2A,2C: 10A/120VAC,28VDC; 2U,2W: 2x 10N120VAC, 28VDC

Max. Switching Power

280W 1200VA

Max. Switching Voltage

75VDC 380VAC
Max. Switching Current: 1 0A

Contact Resistance or Voltage drop

<50mΩ

Electrical Operations

Mechanical Operations

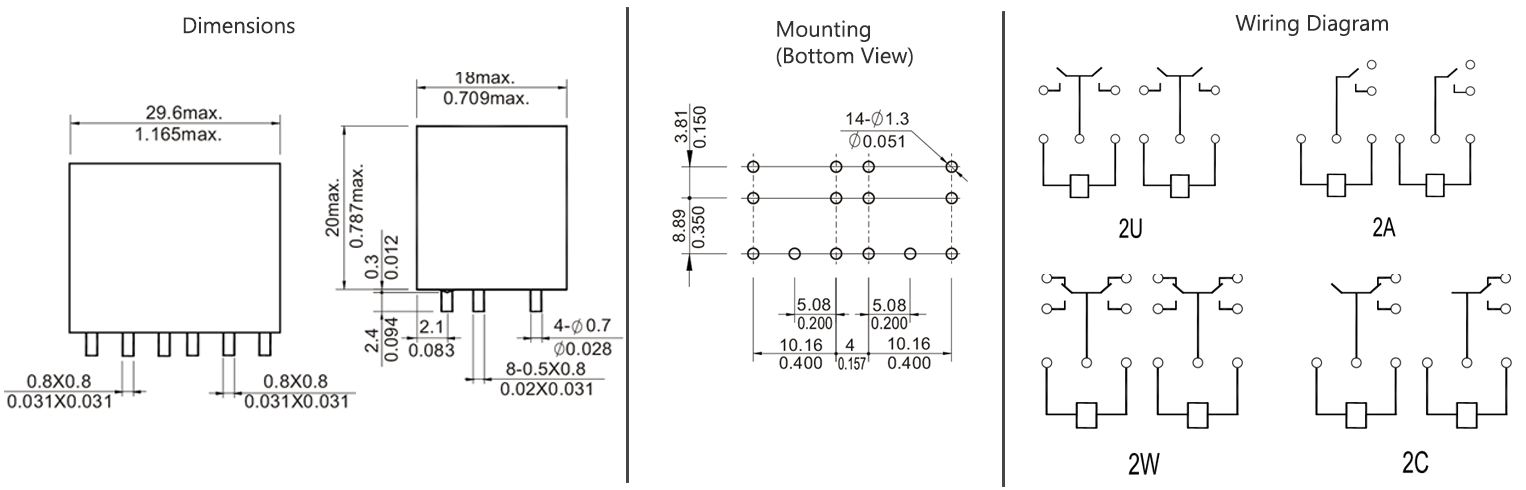

Sizing (mm)

29.6X 18X20

Circuit
