Product Series | |
---|---|
IP Rating | |
Configuration | 1NC (SPST) [push to break], 1NO (SPST) [push to make], 1NO1NC (SPCO) [change over], 2NC (DPST) [push to break], 2NO (DPST) [push to make], 2NO2NC (DPCO) [change over] |
Terminal Options | |
Illumination | |
Cap / Actuator Shape | |
Function | |
Panel Cut-Out Diameter | |
# NO Contacts | |
# NC Contacts |

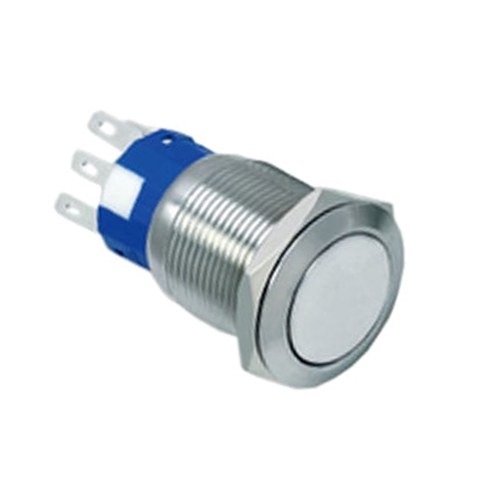

19mm antivandal switch with no LED illumination.
Key Features:
- Ø 19mm Panel cut out
- Momentary
- Non-Illuminated
- IP67 rated (from the front)
- SPDT / DPST
Applications
- Automotive
- Boat building & Marine
- Security
- Door entry
- Medical
SKU: 3534
Categories: 19mm, Boat Building & Marine, Door Entry / Security, Metal Pushbutton Switches

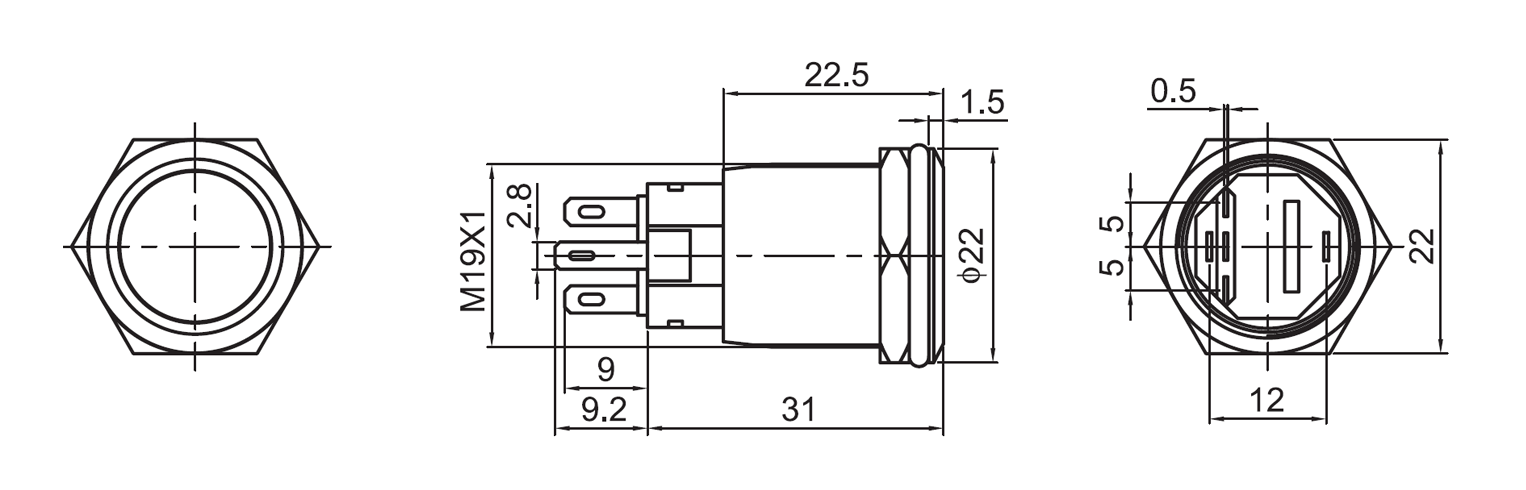

Drawing
