NVF

• Relay

• Switching capacity up to 25A.
• PC board mounting and insert mounting available.
• Suitable for automation system and automobile auxiliary etc.

Function

Contact Arrangement

1A CSPSTNO) , 1B CSPSTNC)

Contact Rating (resistive)

1A: 25A/14VDC,20A/14VDC: 1B: 20A/14VDC, 15A/14VDC

Max. Switching Power

420W

Max. Switching Voltage

75VDC
Max. Switching Current:30A

Contact Resistance orV oltaqe drop

,S:20mV(at 1 0A)(B:40mV )

Mechanical Operations

Electrical Operations

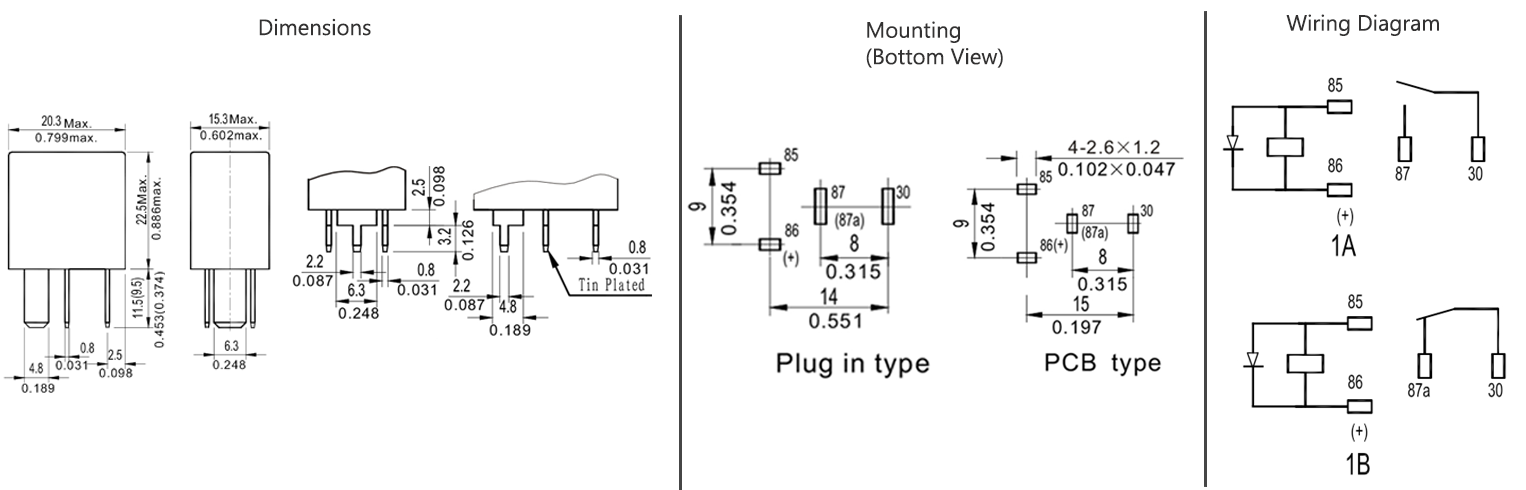

Sizing (mm)

20.3 X 15.3X22.5

Circuit
