TP6151TRML

Push button switch with snap-in type, can be mounted directly on to a PCB board. Parts of output terminals can be used as jumper lead, facilitating circuit design. Available with single or bi-colour LED illumination.

Key Features:

  • PCB push button switch
  • Momentary function
  • Single / bi-colour LED Illumination
  • Rating: 50mA 12VDC
  • Tactile switch
Product Series

Function

,

Orientation

Illumination

Multi-Colour LED Options

, , , , , , ,

Item Standard
Rating 50mA 12VDC
Insulation Resistance 100MΩ Min (at 500 VDC)
Dielectric Strength AC 250V (50/60 Hz for 1 minute)
Contact Resistance 100mΩ Max. (Initial)
Electrically Life 300,000 Cycles Min
Ambient Temperature -25°C~ +70°C
Operating Force 160 ± 50gf

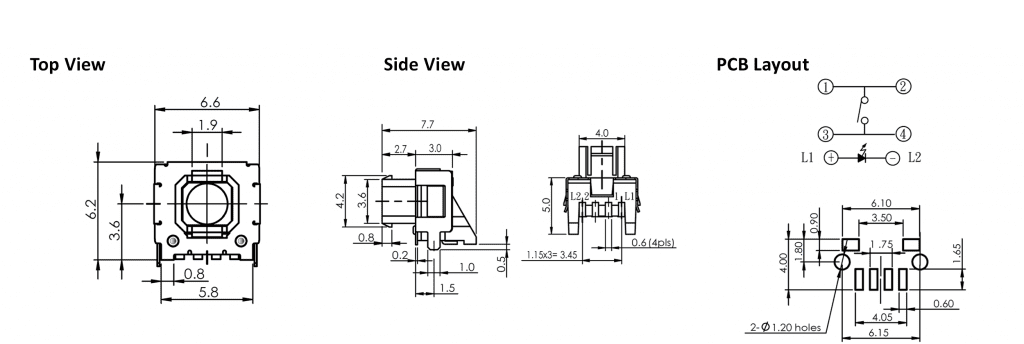

drawing for pcb push button switch, rjs electronics ltd
