NG8ND

• Relay

• Compact size (14.5X14.1X14.0 mm ) and 7.5g
• DPDP(B-M) contacts with internal H-bridge.
• Switching capacity up to 25A motor lock load.
• High performance PCB relay.
• Suitable for household electrical appliances, automation system.

Function

Contact Arrangement

2X 1C (DPDT(B-M)) (H-Bridge)

Contact Current

25Amotor lock (14VDC)

Max. Switching Power

480W

Max. Switching Voltage

16VDC
Max. Switching Current:30A

Contact Resistance or Voltage drop

< 250mV (at 10A)

Electrical Operations

Mechanical Operations

Sizing (mm)

14.5X14.1X14.0

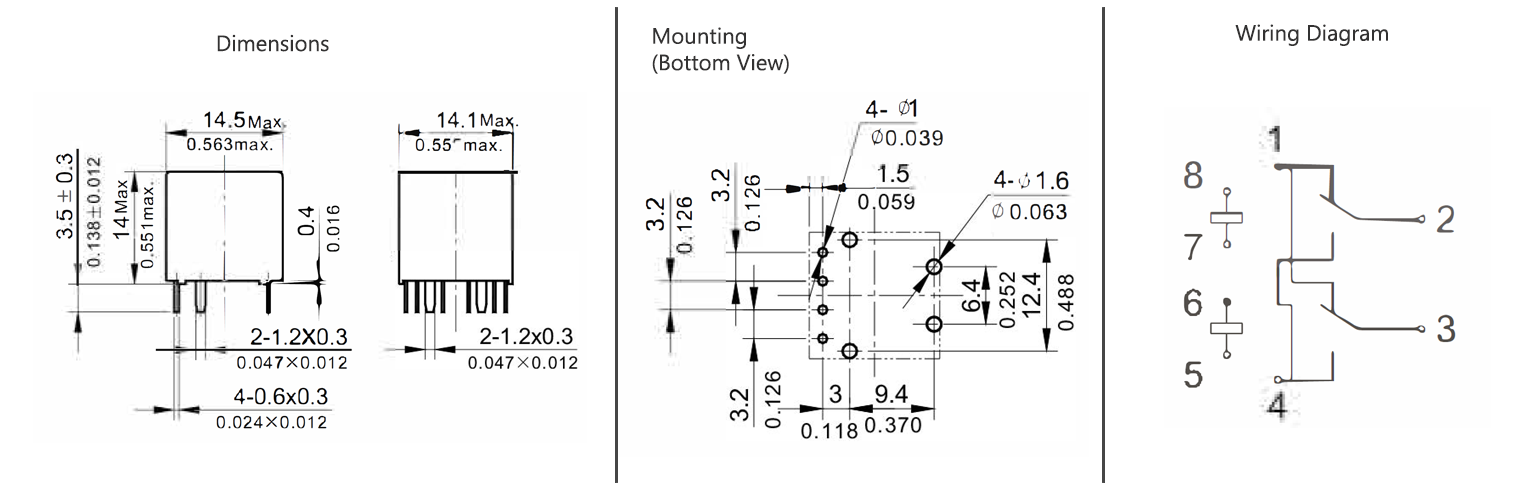

Drawing
