RJS-SDE

Metal housing, fully programmable SPI interfaced, navigation switch with rotary encoder and push button function. Momentary function, multi-purpose and multi-functional. RJS Electronics Ltd.
rotary encoder switch with lcd display
tft lcd encoder switch rjs electronics
TFT LCD rotary encoder switch

Key Features:

  • Ø 50.5mm Navigation Switch
  • Momentary function
  • Low Profile Switch 0.5mm +/-0.3mm
  • Multifunctional and fully programmable
  • Additional features: LCD display, Rotary Encoder and Push Button switch
  • The LCD display is controlled through an SPI-interface.
  • IP65 rated (front)
  • Custom colours available* subject to MOQ
  • Full RJS-SDE Series

Applications:

  • Automotive
  • Boatbuilding & Marine
  • Home Automation
  • Industrial Controls
Data Sheet



SKU: 8282 Categories: , , , , , , ,
PDF
Function

, ,

IP Rating

Cap / Actuator Shape

Switch Travel

Interface Type

SPI (Serial Peripheral Interface) Mode
Resolution

240(H)xRGBx204(V) dots
Diameter (mm)

Depth (mm)

Product Series

Drawing

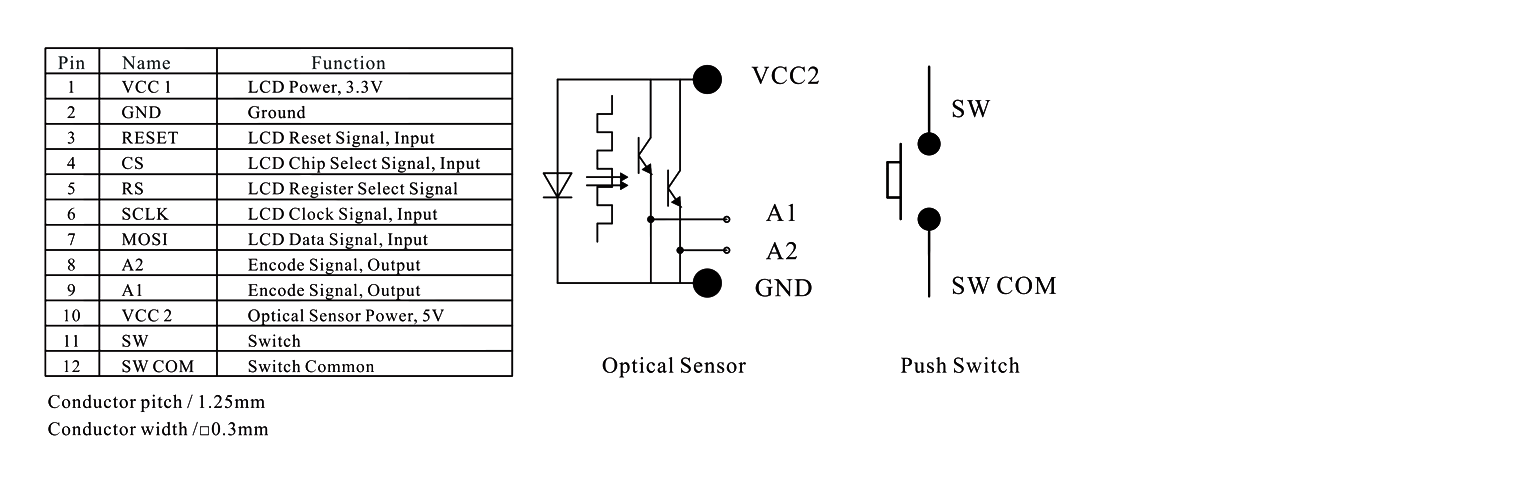

Circuit

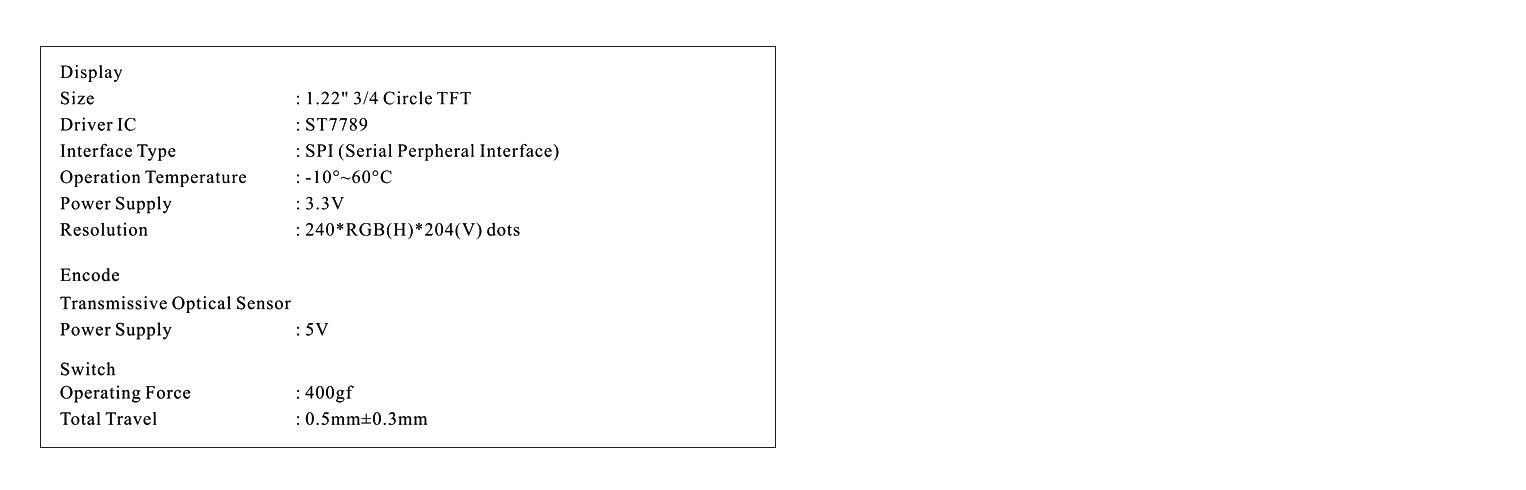

Mechanical & Electrical Specs
